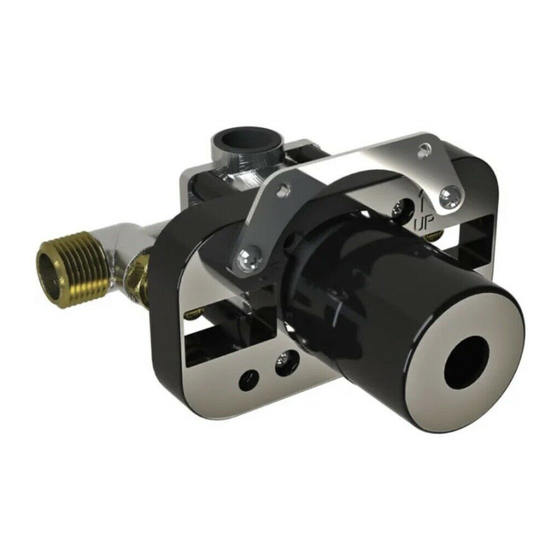

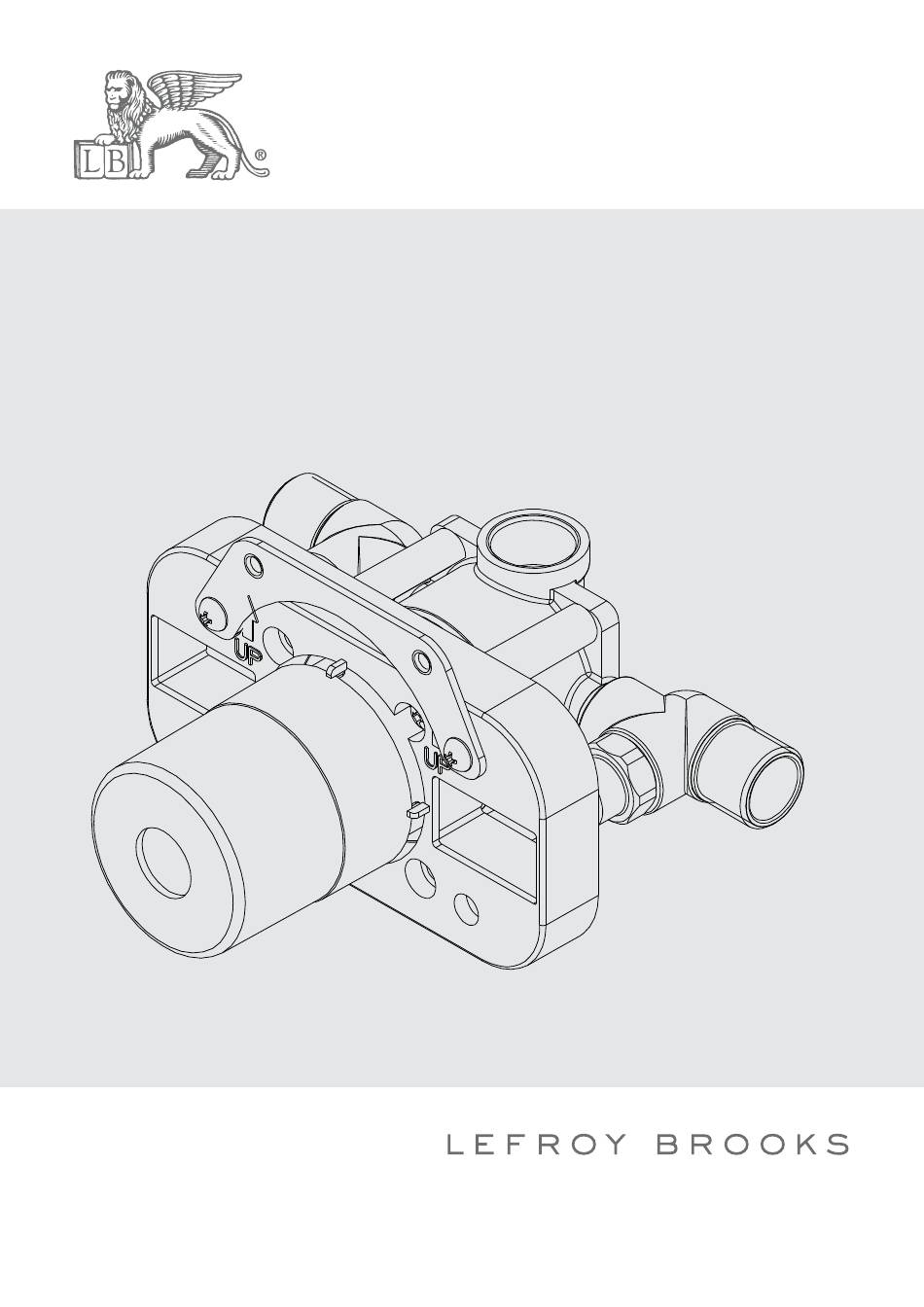

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M1-4100 SINGLE HANDLE PRESSURE BALANCE ROUGH, TO SUIT M1-4300 & M1-4301...
-
Page 2: Table Of Contents
Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 5 3/16" (134mm) 5 1/8" (130mm) 1/2"-14NPT 1/2"-14NPT 3 15/16" (100mm) 2 15/16" (75mm) 6 1/4" (158mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. - Page 4 Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. For round trim plates: CW-4070 & CB-4070 For rectangular trim plates: M1-4300, M1-4301, X1-1998, X1-1999 75~100mm...
-
Page 5: Instalation Procedure
Installation Procedure Steps 3-5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. For round trim plates: CW-4070 & CB-4070 For rectangular trim plates: M1-4300, M1-4301, X1-1998, X1-1999 135~140mm... - Page 6 Installation Procedure Steps 6-10 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Notch Dimple on valve stem Stopper B (marked #049001) Stopper A (marked #049000) Stopper A Stopper B...
-
Page 7: Parts List
Parts List Exploded view Plaster guard (127212) Check valve (507037) Adjusting ring (104105) Spring (005006) Screw (075083) Body (061930) Fixing board (126055) Screw (008241) Nut (009808) Washer (013182) Sleeve (041061) Plug (028004) PB cartridge assembly (507150) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Too low flow. Check valves not fully open. Inspect check valves to ensure they are fully open/ flush the system. Showerheads clogged. Remove and clean showerheads. May need to replace if clogged. Water pressure from either hot or Check for water pressure and adjust cold is too low. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
