BN Thermic HN3-30 Instructions

Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE YOUR GUARANTEE AT
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

1. SAFETY INSTRUCTIONS

1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. If in any doubt consult a qualified electrician.
You must also read and understand the following instructions concerning electrical safety.
▪
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and the safety of
the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
▪
Installation should always be carried out by a qualified electrician or a competent person in accordance with current electrical regulations.
▪
Ensure that the cables are always protected against short circuit and overload.
▪
Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.
▪
Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.
▪
DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician.
▪
The unit should be protected by a suitably rated isolator and type C MCB. An inrush
current (initial current through the lamp) can be expected at switch on. This current can
be as high as 12 times the normal operating current, lasting less than 20 milliseconds.
This effect can also vary depending on temperature. In extreme cases, a type D breaker
may be required.
▪
This heater is IP20 rated and is suitable for indoor or under cover use only.
▪
The mains lead is made from high temperature Silicone rated at 180ºC and MUST not
be replaced without using the same type cable. This replacement if necessary, MUST
only be carried out by a fully qualified electrician.
▪
Ensure that the mounting bracket is adequately earthed.
▪
Do not attach this heater to an extension cord it must be hard wired in position.
1.2 GENERAL SAFETY INSTRUCTIONS
✓
Remove all packaging and store it away from children, check the package and heater
for visible damage or tampering.
✓
Ensure the heater is in good order and condition both physically and electrically before
use. If in any doubt, do not use the unit and contact your supplier.
✓
Only use recommended attachments and parts. To use unauthorised parts may be
dangerous and will invalidate your warranty.
✓
Check that the lamp guard is in place, undamaged and firmly attached.
✓
Keep children and unauthorised persons away from the heater, as it gets very hot.
✓
Disconnect from mains and allow to cool before moving or attempting any cleaning or
Maintenance.
X DO NOT use in areas where hazardous vapours may be present.
X DO NOT locate the heater below the power outlet.
X DO NOT move the heater whilst in operation or even when still warm.
X DO NOT touch the heater lamp, even when cold.
X DO NOT disassemble the heater for any reason. This heater must be checked by qualified personnel only.
X DO NOT use this heater to perform a task for which it has not been designed.
❑
WARNING! Never touch the lamp directly with your fingers. Use a soft clean cloth otherwise the lamp may get damaged.
❑
WARNING! This heater is not equipped with a device to control the room temperature. Do not use this heater in a small room if it is occupied by
people not capable of leaving the room on their own, unless constant supervision is provided.
❑
WARNING! Ensure you observe the safety distance (see Fig.1) and there is no possibility of inflammable materials coming into contact.
www. .co.uk
bnthermic
Other Heaters available in this series
INSTRUCTIONS FOR:-
SHORTWAVE INFRARED HEATERS

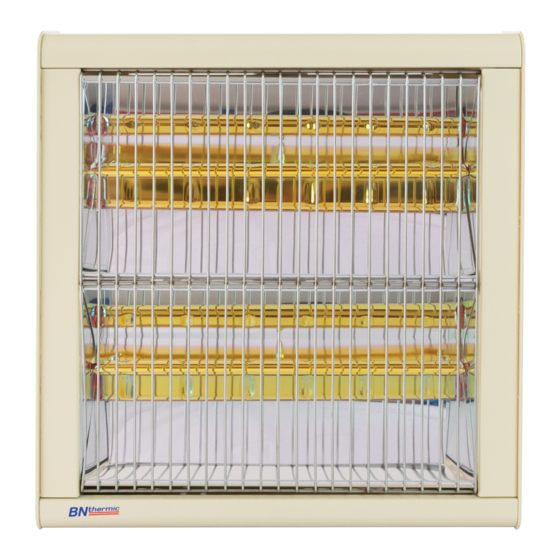

HN3-30
HN3-30 + CS2 Switch
Shown in ivory also available in black
