BN Thermic HB-1500 Instructions

Thank you for purchasing a BN Thermic product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE
FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. REMEMBER TO LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR
FUTURE REFERENCE.
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimized by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. If in any doubt consult a qualified electrician..
You must also read and understand the following instructions concerning electrical safety.

The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and the
safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.

Ensure that the insulation of all the cables on the appliance is safe before connecting it to the power supply.

Ensure that the cables are always protected against short circuit and overload.

Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.

Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.

DO NOT pull or carry the appliance by the power cable.

DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician.

Installation should always be carried out by a qualified electrician or a competent person in accordance with current electrical regulation,
protected by a suitably rated isolator and fuse or type 3 (also known as type C) MCB

This heater is IP44 rated and is suitable for outdoor use. To maintain the protection rating all connections to the mains must be done with a
minimum of IP44 equipment.

The mains lead is made from high temperature cable, not a standard PVC cable and as such should not be replaced without consulting a
suitable qualified electrician.

Ensure that the mounting bracket is adequately earthed.

Use of an extension cord is not recommended.
1.2 GENERAL SAFETY INSTRUCTIONS

Remove all packaging and store it away from children, check the package and heater for visible damage or tampering.

Familiarize yourself with the applications and limitations of the heater.

Ensure the heater is in good order and condition both physically and electrically before use. If in any doubt do not use the unit and contact an
electrician.

Only use recommended attachments and parts. To use unauthorized parts may be dangerous and will invalidate your warranty.

Check that the lamp guard is in place, undamaged and firmly attached.

Keep tools and other items away from the heater when it is in use.

Keep the work area clean and clear of unnecessary items.

Keep children and unauthorized persons away from the heater, as it gets very hot.

Disconnect from mains and allow to cool before moving or attempting any cleaning or maintenance.
DO NOT installed in areas where hazardous vapours may be present.
X
DO NOT subject the heater to prolonged exposure to water. The product is IP44 rated.
X
X DO NOT locate the heater below the power outlet.
DO NOT move the heater whilst in operation or even when still warm.
X
DO NOT touch the heater lamp, even when cold.
X
DO NOT disassemble the heater for any reason. This heater must be checked by qualified personnel only.
X
X DO NOT use this heater to perform a task for which it has not been designed.

WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating.

If removed from its mounting position when not in use, store the heater carefully in a safe, dry, child proof location.

WARNING! Never touch the lamp directly with your fingers. Use a soft cloth, otherwise the tube may get damaged.

WARNING! This heater is not equipped with a device to control the room temperature. Do not use this heater in a small room if it is occupied
by people not capable of leaving the room on their own, unless constant supervision is provided.

WARNING! Ensure the heater is at least 1m from any object and there is no possibility of inflammable materials coming into contact.
Document Ref.: VLRW15BN v1.0

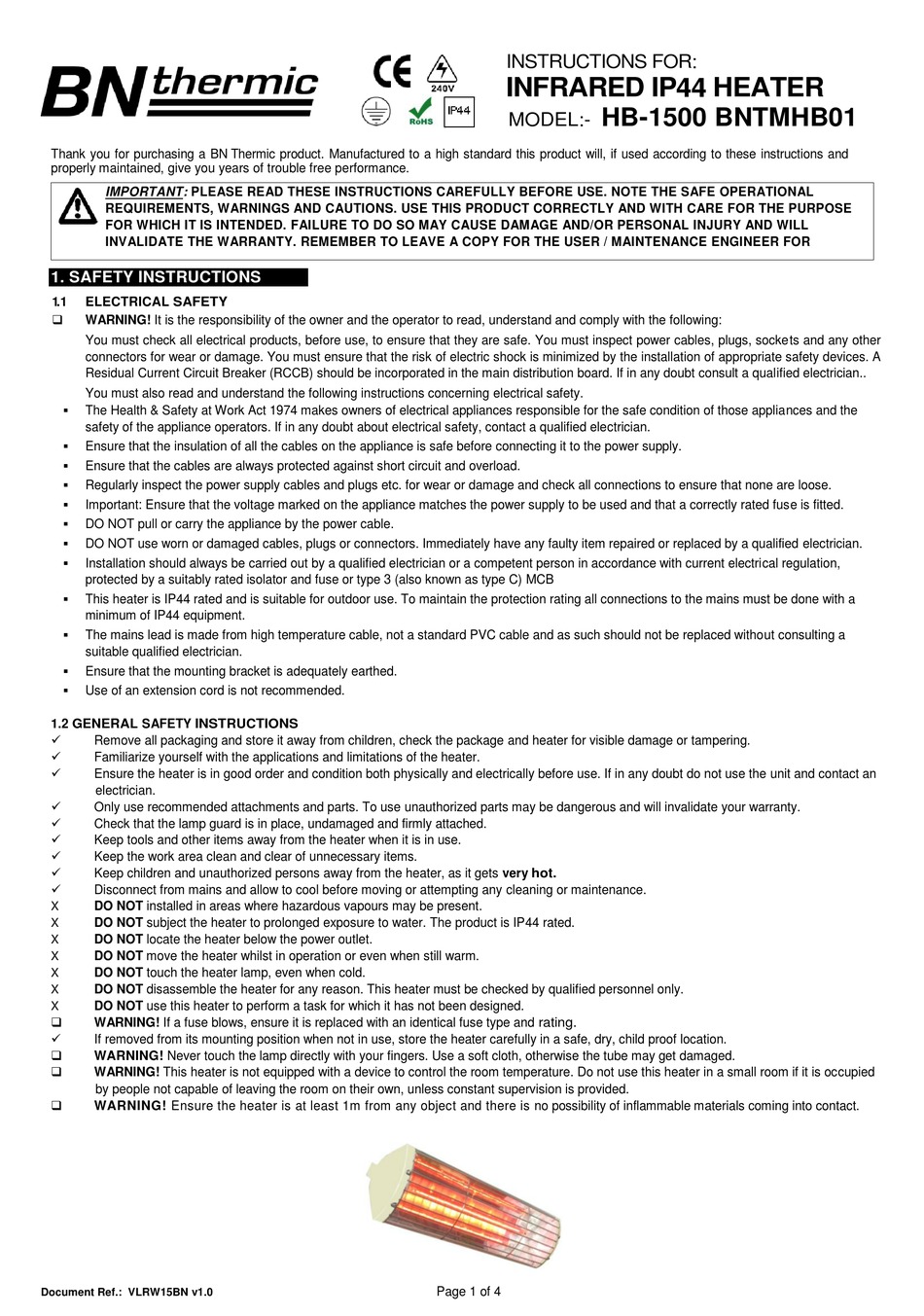

INSTRUCTIONS FOR:

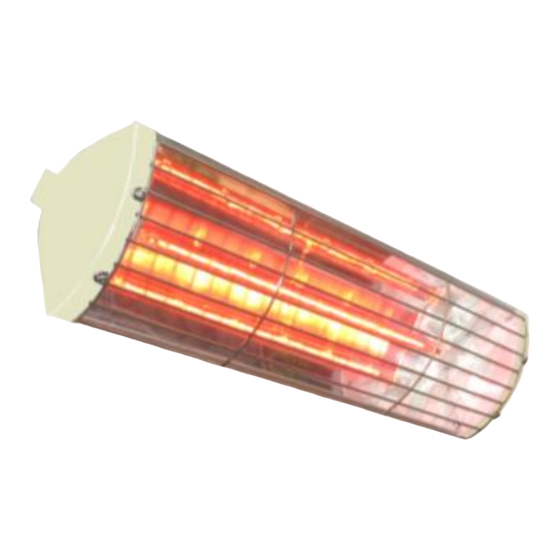

INFRARED IP44 HEATER
HB-1500 BNTMHB01
MODEL:-
Page 1 of 4
