BN
BN Thermic Ltd. 34 Stephenson Way, Three Bridges, Crawley, West Sussex RH10 1TN England
Tel: +44 (0)1293 547361 Fax: +44 (0)1293 531432
BN Thermic Ltd
34 Stephenson Way
Three Bridges,
Crawley,
West Sussex RH10 1TN
England
Tel: +44 (0)1293 547361
Fax: +44 (0)1293 531432
Mounting hole distance : Heater length minus 120mm
Heater Length
Finned tube heaters
U
500
1000
1500
Power W
2000
3000
4000
Max. surface temperature
240°C
Type
Universal

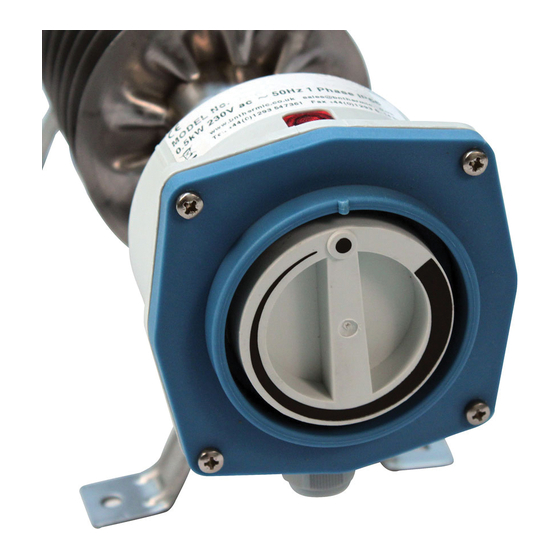

Automatic
with built-in thermostat
Finned tube heaters and tube heaters
Conforming to EN 60335-1 and EN 60335-2-30
Ø Tube
Ø Fins
Height
Width
Finned tube
Terminal box
Heating unit
Cable gland M20x1,5
Heating conductors acc. to DIN 17470
Protection type IP66 acc. to EN 60529
BN
SWD Series
Industrial Finned Tubular Convector Heaters
Heater
A
Length mm
500
440
1000
640
1500
840
2000
1040
3000
1440
-
1840
BNTMSWD-02
240°C
240°C
Model
Control
SWD-U
No switch
Frost-free
SWD-A
Adjustable between +5°C and +30°C
50mm
110mm
170mm
130mm
Stainless steel grade 1.4512
PA6-GF30
Technical ceramics C221 and C520
PA6
Date: May 2013
Subject to change
