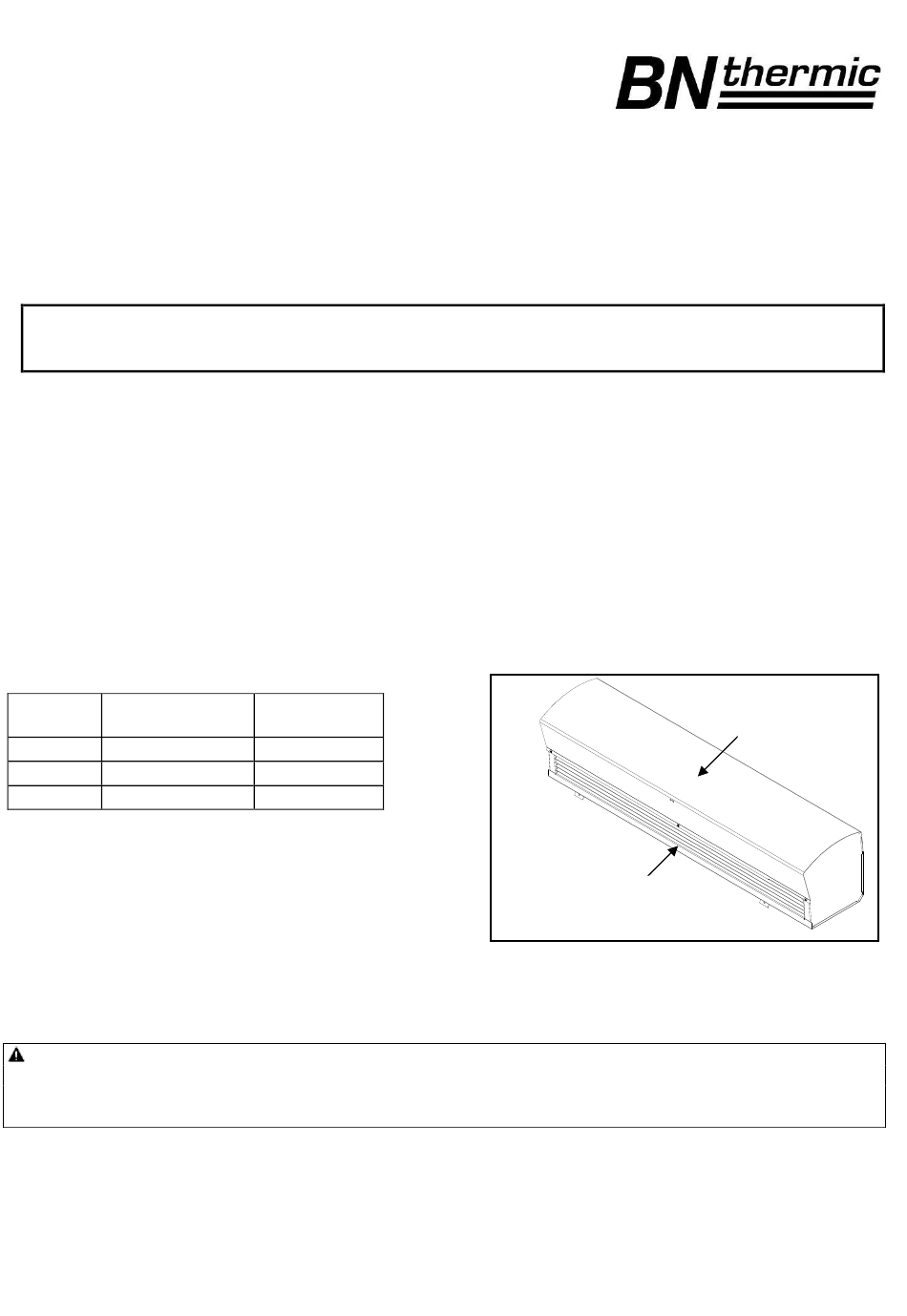

BN Thermic HCA-09 Manual

HCA High Capacity Air Curtain
INSTALLER: Please leave these instructions, other relevant literature and any controls/accessories with the
INTRODUCTION
This booklet provides guidance to identify, handle, install
and commission BN Thermic HCA door curtains. The
instructions apply to models from the standard range of
standard models only.
carefully before commencing any installation work.
IDENTIFICATION
The door curtain model description is displayed on a
label found inside the unit casing.
RANGE OF STANDARD MODELS
Overall
Model
Length (mm)
HCA-09 1113
HCA-13 1621
HCA-18 2121
Note: All models are suitable for doorway heights between 1800mm and 2700mm.
WARNING
This appliance should be used by persons who are adequately trained and/or supervised.
This door curtain is not equipped with a device to control the room temperature.
Do not use this door curtain in rooms occupied by persons not capable of leaving the room on their own.
Please study the instructions
Nominal
Duty (kW)
9.0
13.5
18.0
user
DESCRIPTION

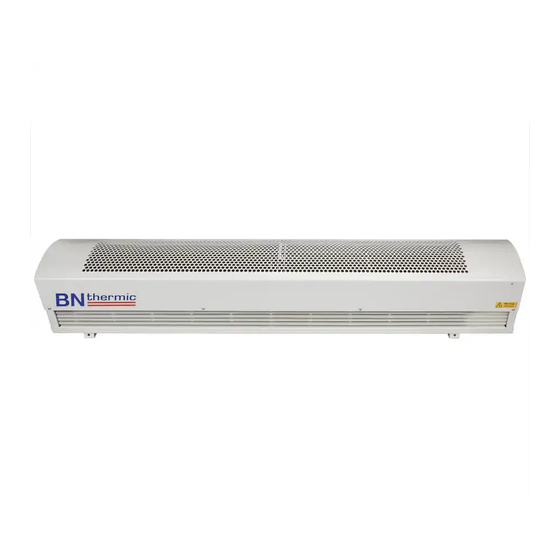

BN Thermic HCA door curtains consist of a casing,
motor, tangential fan(s), electric heating elements and
electrical connection box. Each door curtain is supplied
with a wall mounting bracket and a remote switching
control box as standard. Casings are finished in durable
polyester powder coat.
STANDARD RANGE MODELS & SIZES
BN Thermic HCA door curtain is available in three sizes;
1000mm, 1500mm, and 2000mm.
Discharge air grille
HCA Air Curtain
1
BN Thermic Ltd
34 Stephenson Way
Three Bridges,
Crawley
West Sussex RH10 1TN
England
Tel: +44 (0)1293 547361
Fax: +44 (0)1293 531432
Return air grille
