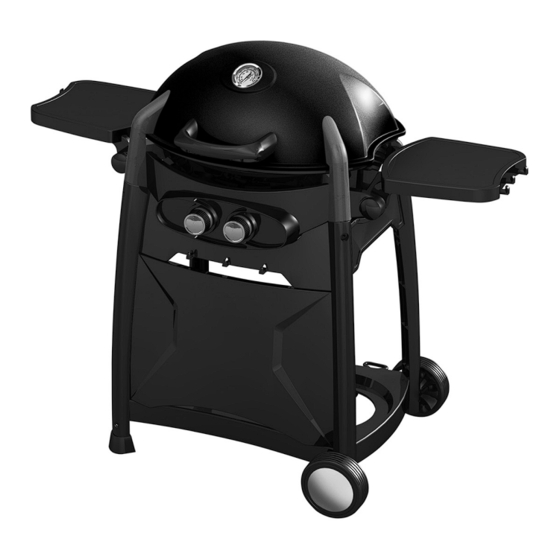

Model No. BQ1062, BQ1062R
Powerful 23MJ/h stainless steel burners for true
BBQ performance
Rotary ignition for easy lighting
Removable grill circular section for wok cooking
Substantial cooking area of 2130cm
cast iron cooking surface – ²/ ³ grill and ¹/ ³ hotplate
Durable die cast aluminium bowl and hood
Integrated temperature gauge – a must when roasting
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
, satin enamel
2
Important: Retain these instructions for future use.
Convenient side shelves for easy food preparation and
cooking – when not in use, they can be dropped down
High dome hood – 21cm – allows you to roast easily
Integrated trolley features wheels, integrated BBQ tool
hooks and screen to discreetly hide gas cylinder and
storage area
Supplied with hose and regulator so it's ready to use
with a QCC gas cylinder
Approved to NZ Standards
Aber Holdings Ltd - Hamilton, N.Z. www.gasmate.co.nz
4457-06/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate BQ1062
Summary of Contents for Gasmate BQ1062
- Page 1 QCC gas cylinder Integrated temperature gauge – a must when roasting Approved to NZ Standards Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Holdings Ltd - Hamilton, N.Z. www.gasmate.co.nz 4457-06/16...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with the IMPORTANT barbecue are suitable for L.P.G. only. Read these instructions carefully prior to use. A gas regulator adjusted to have an outlet pressure of Familiarise yourself with the appliance before 2.75kPa is supplied for connection to the LPG cylinder. - Page 4 GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply Failure to comply with these instructions could assembly. result in a fire or explosion which could cause serious bodily injury, death or property damage.
-
Page 5: Protect Children
Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn. -
Page 6: Exploded Diagram
EXPLODED DIAGRAM... -
Page 7: Parts List
PARTS LIST Part Description Part Description Body Foot Hot Plate Base Grill Plate Axle Wok Grill Plate Wheel Fat Cup Hub Cap Heat Shield Plugs Side Shelf Fat Tray Support Side Panel Upper Leg Plugs Back Panel Knobs Front Panel Hood Front Skirt Lid Handle... -
Page 8: Self Tapping Screw
ASSEMBLY INSTRUCTIONS Remove any transit protection material. Pre installed screw (4) CC x 4 BB x 4 AA x 4 STEP 1 Loosen the pre installed screws. Position the legs as shown and secure with the fasteners. Self Tapping Screw STEP 2 Place the feet on the legs as shown and secure with the self tapping screw. - Page 9 CC x 4 BB x 4 AA x 4 STEP 3 Attach the front skirt with the fasteners as shown. Pre installed screw (4) CC x 2 BB x 2 STEP 4 AA x 2 Loosen the pre installed screws. Position the front panel and secure with the fasteners as shown.
- Page 10 Pre installed screw (4) STEP 5 Loosen the pre installed screws. Position the back panel, DO NOT retighten the fasteners. STEP 6 Loosen the screws. Position the side panels as shown, then tighten the fasteners.
- Page 11 STEP 7 Locate the axle through the legs as shown, attach the wheels using the nuts then push on the hub caps. Plug the holes as shown. DD x 2 STEP 8 Attach the hood handle with the fasteners as shown.
- Page 12 STEP 9 Align the ‘D’ shape on the knob with the ‘D’ shape on the spindle and push on the control knobs. JJ x 2 STEP 10 KK x 2 Place the hood onto the body and secure it with the pins and clips as shown.
- Page 13 AA x 2 STEP 11 Attach the fat tray support as shown. AA x 4 STEP 12 Locate the barbecue body as shown and secure with the four fasteners. Plug the holes as shown.
- Page 14 CC x 1 BB x 1 AA x 1 STEP 13 Secure the front panel with the fastener as shown. STEP 14 Position the heat shield tabs as shown.
- Page 15 STEP 15 Secure the heat shield with the fasteners. EE x 1 FF x 1 GG x 1 STEP 16 Position the folding side shelves.
- Page 16 HH x 4 STEP 17 Secure with the fasteners as shown. STEP 18 Position the cooking plate and grate as shown.
- Page 17 STEP 19 Slide the fat tray in from the rear.
-
Page 18: Lighting Procedure
GENERAL INFORMATION CONNECTING & DISCONNECTING If the gas regulator safety feature activates, the barbecue TO GAS SOURCE will operate with reduced output as gas flow is restricted. These steps should be taken first to reset the gas Familiarise yourself with the general information and regulator safety device: safety guidelines located at the front of this manual. -
Page 19: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite Piezo igniter is faulty Use a long barbecue match inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not empty and re- ignite the burner... -
Page 20: Care And Maintenance
CARE & MAINTENANCE As with all appliances, proper care and maintenance Cleaning the Cooking Surface will keep them in top operating condition and prolong After cooking, turn burner control to ‘OFF’ and let their life. Your new gas barbecue is no exception. By barbecue cool before attempting to clean the grill plate following these cleaning procedures on a timely basis, or grate. -
Page 21: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. - Page 22 Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
