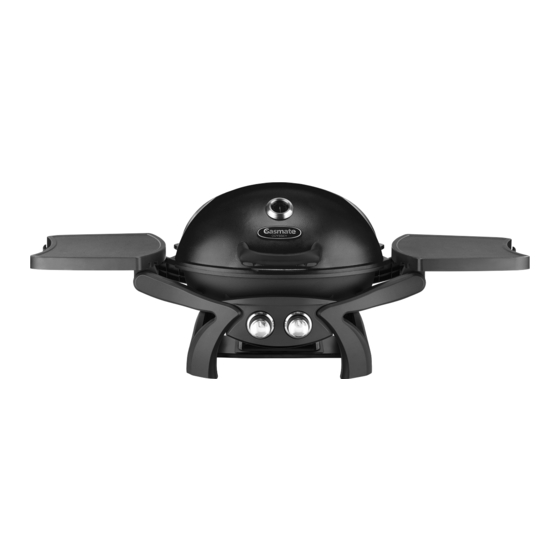

Model No. BQ10612, BQ10612R
Powerful 28MJ/h stainless steel burners for true
BBQ performance
Rotary ignition for easy lighting
Removable grill circular section for wok cooking
Substantial cooking area of 2130cm
cast iron cooking surface – ²/ ³ grill and ¹/ ³ hotplate
Durable die cast aluminium bowl and hood
Integrated temperature gauge – a must when roasting
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
, satin enamel
2
Important: Retain these instructions for future use.
Convenient side shelves for easy food preparation and
cooking – when not in use, they can be removed
High dome hood – 21cm – allows you to roast easily
Trolley available as an optional extra (sold separately)
Supplied with hose and regulator so it's ready to use
with a POL gas cylinder
Gas certified to Australian Standards
Aber, N.Z. www.gasmate.co.nz
03397 04/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate ODYSSEY2
Summary of Contents for Gasmate ODYSSEY2
- Page 1 Durable die cast aluminium bowl and hood Gas certified to Australian Standards Integrated temperature gauge – a must when roasting Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, N.Z. www.gasmate.co.nz 03397 04/17...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with the IMPORTANT barbecue are suitable for Propane Gas or Universal Read these instructions carefully prior to use. L.P.G. only. Familiarise yourself with the appliance before A gas regulator adjusted to have an outlet pressure of connecting it to it’s gas container. - Page 4 GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply Failure to comply with these instructions could assembly. result in a fire or explosion which could cause serious bodily injury, death or property damage.
-
Page 5: Protect Children
Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn. -
Page 6: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST Part Description BBQ Body Grill Plate Wok Grill Plate Hot Plate Fat Tray Side Shelves... - Page 7 ASSEMBLY INSTRUCTIONS Remove any transit protection material. STEP 1 Slide the side shelves into the legs as shown. STEP 2 Position the cooking plates as shown.
- Page 8 STEP 3 Slide the fat tray in from the back. STEP 4 Connect the regulator and test for leaks with a soapy water solution.
- Page 9 GENERAL INFORMATION CONNECTING & DISCONNECTING LIGHTING PROCEDURE TO GAS SOURCE Burner Operation & Ignition System Check Familiarise yourself with the general information and 1. With cylinder valve in ‘OFF’ position check the piezo safety guidelines located at the front of this manual. igniter by pushing in and rotating the control knob Check anti-clockwise.
-
Page 10: Operation
‘LOW’. When cooking with a Wok, remove the Wok Grill Plate and ensure the bottom of the Wok does not touch the burner, or purchase the Gasmate Odyssey Wok which has been designed to meet these requirements. Servicing Servicing should be conducted every year or sooner if required. -
Page 11: Care And Maintenance
CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong After cooking, turn burner control to ‘OFF’ and let their life. Your new gas barbecue is no exception. By barbecue cool before attempting to clean the grill plate following these cleaning procedures on a timely basis, or grate. -
Page 12: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
