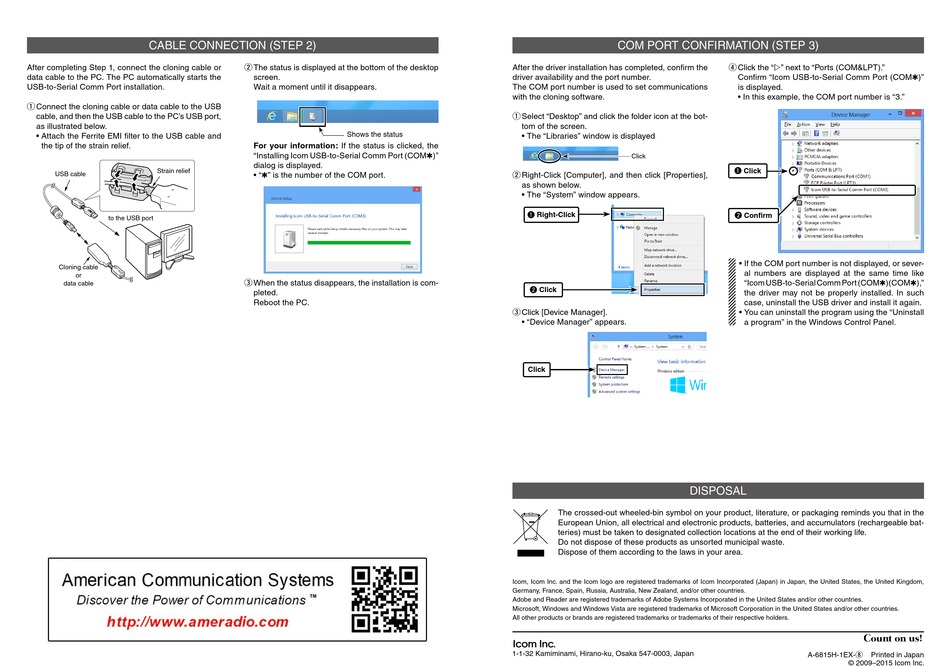

Icom OPC-1122U Instructions page 2

CABLE CONNECTION (STEP 2)
After completing Step 1, connect the cloning cable or
data cable to the PC. The PC automatically starts the
USB-to-Serial Comm Port installation.
q Connect the cloning cable or data cable to the USB
cable, and then the USB cable to the PC's USB port,
as illustrated below.
• Attach the Ferrite EMI filter to the USB cable and
the tip of the strain relief.
Strain relief
USB cable
to the USB port
Cloning cable
or
data cable
w The status is displayed at the bottom of the desktop
screen.
Wait a moment until it disappears.
Shows the status
For your information: If the status is clicked, the
"Installing Icom USB-to-Serial Comm Port (COM✱)"
dialog is displayed.
• "✱" is the number of the COM port.
e When the status disappears, the installation is com-
pleted.
Reboot the PC.
COM PORT CONFIRMATION (STEP 3)
After the driver installation has completed, confirm the
driver availability and the port number.
The COM port number is used to set communications
with the cloning software.
q Select "Desktop" and click the folder icon at the bot-
tom of the screen.
• The "Libraries" window is displayed
Click
w Right-Click [Computer], and then click [Properties],
as shown below.
• The "System" window appears.
q Right-Click
w Click
e Click [Device Manager].
• "Device Manager" appears.
Click
DISPOSAL
The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the
European Union, all electrical and electronic products, batteries, and accumulators (rechargeable bat-
teries) must be taken to designated collection locations at the end of their working life.
Do not dispose of these products as unsorted municipal waste.
Dispose of them according to the laws in your area.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
Adobe and Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries.
All other products or brands are registered trademarks or trademarks of their respective holders.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
r Click the "" next to "Ports (COM&LPT)."
Confirm "Icom USB-to-Serial Comm Port (COM✱)"
is displayed.
• In this example, the COM port number is "3."
q Click
w Confirm
• If the COM port number is not displayed, or sever-
al numbers are displayed at the same time like
"Icom USB-to-Serial Comm Port (COM✱)(COM✱),"
the driver may not be properly installed. In such
case, uninstall the USB driver and install it again.
• You can uninstall the program using the "Uninstall
a program" in the Windows Control Panel.
