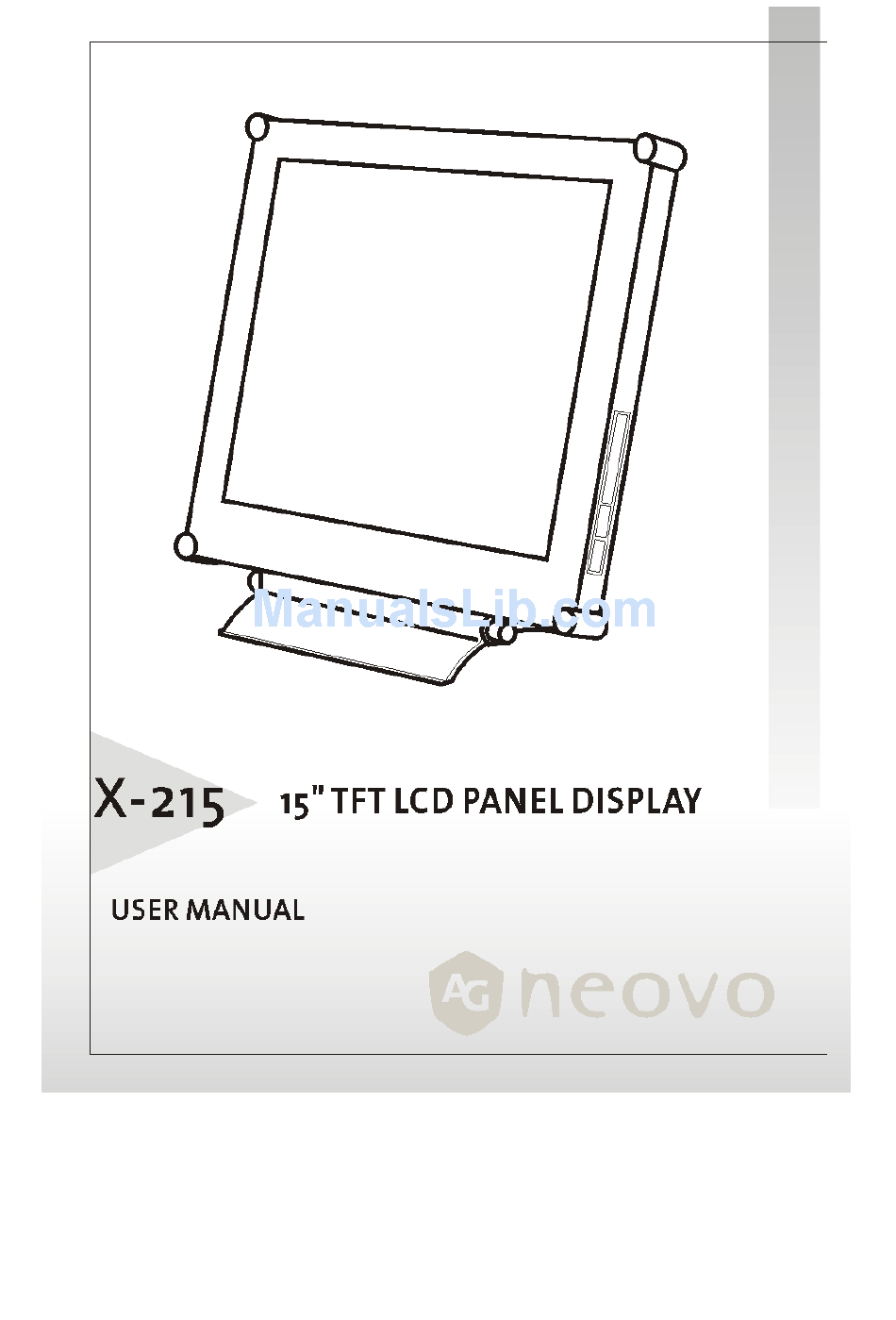

Summary of Contents for AG Neovo X-215
-
Page 2: Table Of Contents
PRECAUTIONS ... 2 ... 2 NSTALLATION ... 2 OWER CONNECTION ... 2 SING THE ... 3 AINTENANCE ... 3 RANSPORTATION GETTING STARTED ... 4 ...4 ACKAGE ONTENTS DENTIFYING ARTS AND ONTROLS ... 7 ETUP ETTING THE INPUT SIGNAL PRIORITY NSTALL INFORMATION CUSTOMIZING MONITOR ... -
Page 3: Precautions
Installation Do not cover or block the ventilation ports on the rear of the monitor. Ÿ Do not install the monitor close to heat sources such as radiators or air ducts, or Ÿ in a location exposed to direct sunlight, excessive dust, mechanical vibration, or shock. -
Page 4: Maintenance
Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a Ÿ mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene. Do not rub, touch, or tap the surface of the screen with sharp or abrasive items Ÿ... -
Page 5: Getting Started
Package Contents Before using this monitor, make sure the following items are included in your carton box: Monitor (*1) Ÿ Power adapter (*1) Ÿ Power cord (*1) Ÿ Digital DVI signal cable (*1) Ÿ D-sub 15-pin VGA signal cable (*1) Ÿ... -

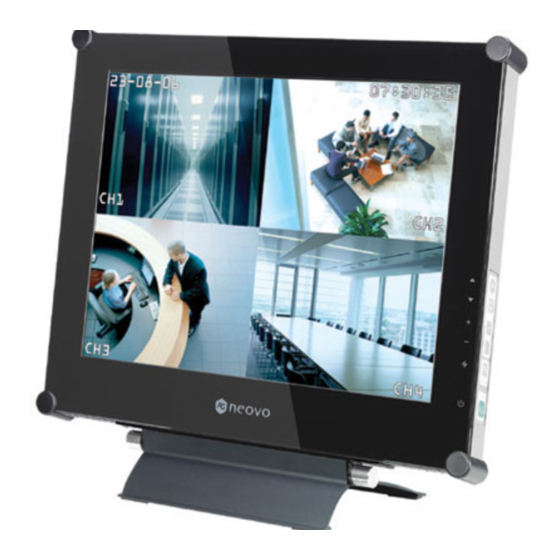

Page 6: Dentifying Parts And Controls
Power switch Turns the monitor on or off. LED indicator Indicates the monitor’s operational mode; green for regular operation, and amber for power saving mode. AUTO button Automatically adjusts the picture and performance. The AUTO function should be used the first time you use the monitor and after changing the resolution and/or refresh rate of the input signal. - Page 7 DC +12V Power inlet Ÿ Provides +12V DC power to the monitor. VGA-In Ÿ D-sub 15-pin connector for VGA signal. VIDEO-In (Optional) Ÿ Mini-dim 8- pin connector for S-Video or CVBS signal. Digital Ÿ DVI-D connector for digital signal input Rear View...
-
Page 8: Setup
Please follow the following instructions to setup monitor. Step 1: Remove all packing materials and wrapping from the monitor and then tear down the plastic dust cover from the screen surface. Step 2: With the computer or video equipment turned off, connect the enclosed VGA signal cable. -
Page 9: Setting The Input Signal Priority
Step 4: Turn on your computer or video equipment. Press monitor. Step 5: For 15” LCD monitor, it will have the best performance at resolution 1024 x 768. Ensure that your computer display is set at 1024 x 768 pixels and 60Hz. Press the AUTO button. -
Page 10: Customizing Monitor
In the OSD menu, you will find all kinds of features to help you adjust your LCD panel to the optimal performance. Important! Though manual adjustment of the LCD panel is available, we strongly recommend you to use the auto adjustment function of the panel. It will automatically tune your LCD panel to the optimal performance. -
Page 11: Osd Menus
OSD Menus Display Adjust Color Temperature OSD Adjust... -
Page 12: Input Select
Misc Adjust Brightness & Contrast Select Brightness and Contrast in the Display Adjust menu. Push button to adjust value between 0 and 100, reading will display at the bottom of the OSD window. Push AUTO to save changes and go back to the main menu. Horizontal &... -
Page 13: Clock & Phase
Clock & Phase Select Clock and Phase in the Display Adjust menu to modify the distortion of video signal. Push button to adjust value between 0 and 100, reading will display at the bottom of the OSD window. Push AUTO to save changes and go back to the main menu. -
Page 14: Using User Defined Color Temperature
Using User Defined Color Temperature You may select USER feature to adjust color temperature according your preferences or special purposes. Select a color from the menu. Push Push AUTO to save changes and go back to the main menu. OSD Position Select OSD Position in the OSD Adjust menu to adjust OSD window position according to your preference. -
Page 15: Input Select
Your LCD panel is equipped with an input signal auto detection function. It will record the last input signal and automatically detect that input signal at the beginning of next use. The sequence of input signal detection is VGAàDigitalàS-VideoàCVBS. Recall Select Recall to reset all features to default settings. -
Page 16: Warning Messages And Troubleshooting
Warning Messages If the message appears on the screen CAN NOT DISPLAY THIS INPUT SIGNAL NO SIGNAL INPUT MAIN CONTROL MENU LOCKED NO VIDEO SIGNAL FROM VGA-IN WAIT FOR AUTOMATIC ADJUSTMENT Check the items The input signal is not acceptable by the monitor. Please check the video resolution and frequency range is ·... -
Page 17: Troubleshooting
Symptom No picture · LED power indicator is · not lit No picture · The LED power · indicator is orange color The texts are not solid · · Screen image is not · Centered properly Some lines missing · There are red, green, ·... -
Page 18: Technical Specifications
Specifications Electrical characteristics Screen size Pixel format Horizontal frequency Vertical frequency Maximum pixel clock Connections Power consumption Physical characteristics Weight Tilt angle 15.0” (381mm) diagonal 1024 x 768 vertical stripe 30kHz – 60kHz 50Hz – 75Hz 80MHz Power: 3-Pin AC Plug <... -
Page 19: Regulations
FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 20: Tco'95
TCO'95 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. - Page 21 Environmental requirements Brominated flame retardants Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances.
