Press-to-Talk Wireless Microphone
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ........................................................................................................... 2
2. GENERAL DESCRIPTION ......................................................................................................... 3
3. FEATURES .................................................................................................................................. 3
4. HANDLING PRECAUTIONS ...................................................................................................... 3
5. NOMENCLATURE AND FUNCTIONS ....................................................................................... 4
6. BATTERY INSERTION ............................................................................................................... 5
7. CHANNEL NUMBER SETTING .................................................................................................. 6
8. OPERATION................................................................................................................................ 6
9. A/B SWITCH FUNCTION AND USAGE METHOD .................................................................... 7
10. TALK SWITCH SETTING ......................................................................................................... 8
11. CHIME SETTING ....................................................................................................................... 8
12. MICROPHONE SENSITIVITY SETTING .................................................................................. 9
13. WHEN USING EXTERNAL MICROPHONE ............................................................................. 9
14. USING POCKET CLIP .............................................................................................................. 10
15. TROUBLESHOOTING .............................................................................................................. 11
16. FREQUENCY TABLE ............................................................................................................... 11
17. CERTIFICATIONS ..................................................................................................................... 12
18. SPECIFICATIONS ..................................................................................................................... 12
Accessories .................................................................................................................................. 12
Optional products ......................................................................................................................... 12
Thank you for purchasing TOA Press-to-Talk Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

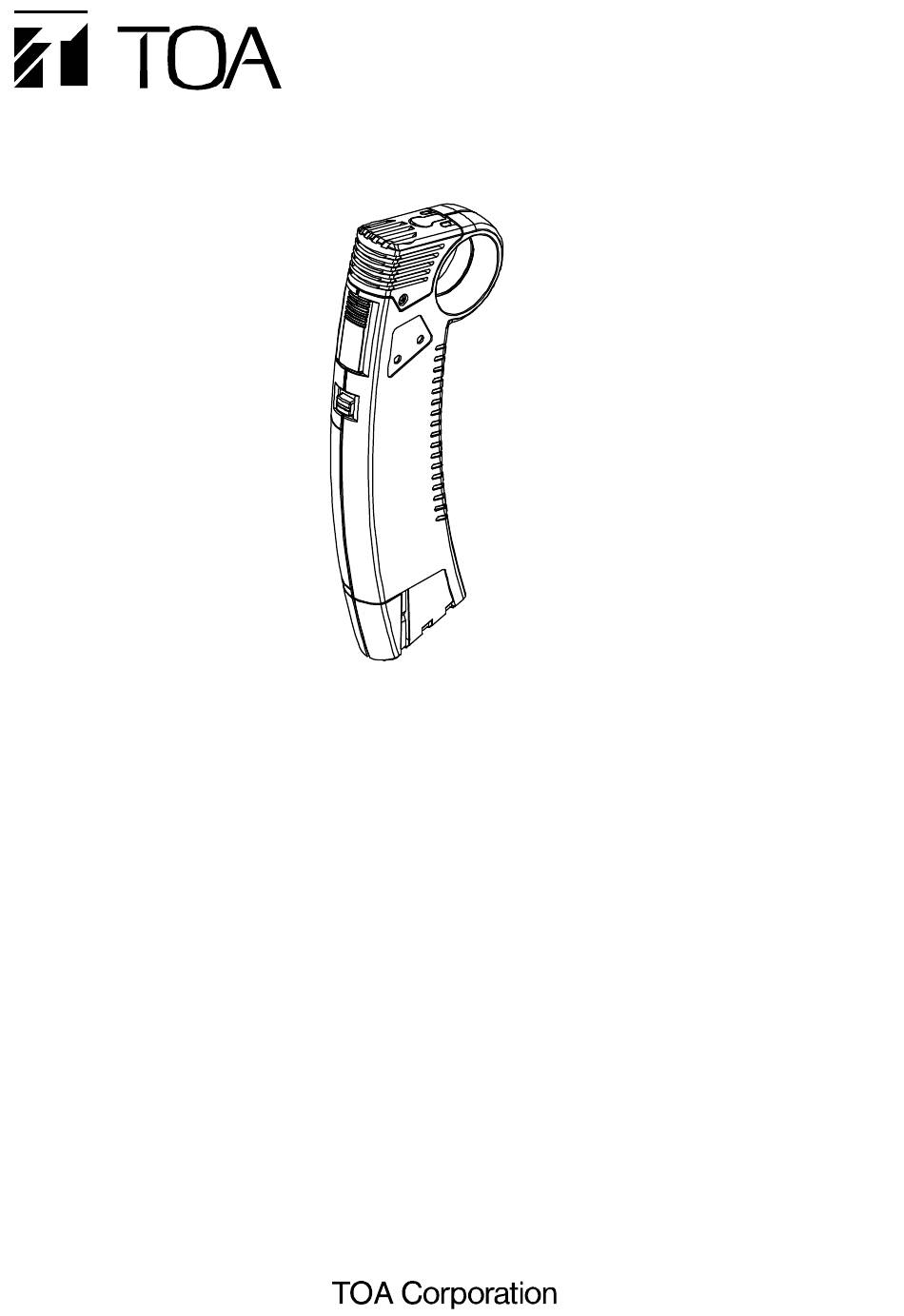

OPERATING INSTRUCTIONS
WM-5420
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa WM-5420-AS
Summary of Contents for Toa WM-5420-AS
-
Page 1: Table Of Contents
16. FREQUENCY TABLE ....................... 11 17. CERTIFICATIONS ........................12 18. SPECIFICATIONS ........................12 Accessories ..........................12 Optional products ......................... 12 Thank you for purchasing TOA Press-to-Talk Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. WARNING Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury. -
Page 3: General Description
Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer. Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail. -
Page 4: Nomenclature And Functions
NOMENCLATURE AND FUNCTIONS [Top] [Right side] [Front] [Rear] [Left side] [Inside battery cover] [Bottom] 1. Power / Battery lamps A green LED lights as long as the battery capacity is sufficient. When the battery capacity becomes low, the green LED starts to dim, while the red LED to light. The microphone does not transmit the signal if the channel selector switch is set to the empty channel. -
Page 5: Battery Insertion
4. Talk switch 6. Neck strap Use this switch to turn microphone on/off. Press Strap provided is to be fitted here. the switch to talk. Settings may be changed. 7. Settings for various functions 5. A/B switch Including locking talk switch, chime and Modes A and B are settings for different microphone sensitivity. -
Page 6: Channel Number Setting
CHANNEL NUMBER SETTING Note Setting should be done when talk-switch is off. If you change setting when the power is on, the transmission frequency will not be changed. Refer to the frequency table when setting. If you configure a bank or channel that is not on the frequency table, signals will not be transmitted. -
Page 7: A/B Switch Function And Usage Method
CONVENIENT FUNCTIONS Switches inside battery cover, accessories and optional purchase provide convenient functions. Note Setting should be done when talk-switch is off. After removing battery cover, use the supplied screwdriver or any screwdriver with a pointed tip to change settings. A/B SWITCH FUNCTION AND USAGE METHOD Inside battery cover WM-5420 sets different combinations of channels... -
Page 8: Talk Switch Setting
10. TALK SWITCH SETTING This function is the setting for the talk-switch ON/OFF. Talk-switch Select lock option using talk-switch inside battery cover and set A/B mode. Note Setting should be done when talk-switch is off. If talk-switch is on, the setting will not change. Inside battery cover LOCK OFF/ON Talk switch setting... -
Page 9: Microphone Sensitivity Setting
12. MICROPHONE SENSITIVITY SETTING Select microphone input sensitivity (including external microphone) according to type of use. Select microphone input sensitivity switch inside battery cover and set A/B mode. Note Setting should be done when talk-switch is off. If talk-switch is on, the setting will not change. Inside battery cover MIC SENSE Lo/Hi Microphone sensitivity switch... -
Page 10: Using Pocket Clip
External microphone Off WM-5420 internal talk-switch is available. Use this setting if the optional microphone without talk- switch is used. The external talk-switch on the optional microphone is not available. External microphone On The external talk-switch on the optional microphone is available. -
Page 11: Troubleshooting
15. TROUBLESHOOTING Solution Problem Possible Causes Power/Battery lamps does not light Is the battery polarity correct? Replace the battery correctly. (for both red and green indicators) Is the battery capacity low? Replace with new battery. even when the microphone is turned on. -
Page 12: Certifications
17. CERTIFICATIONS Hereby, TOA Electronics Europe GmbH, declares that this wireless microphone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In compliance with EN 301 489-01:V1.9.2(2011-09) EN 301 489-09:V1.4.1(2007-11) EN 300 422-2 V1.4.1 (2015-06)
