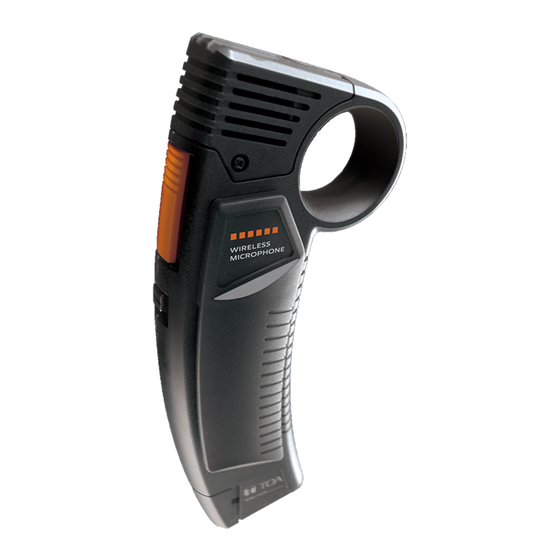

Press-to-Talk Wireless Microphone
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ........................................................................................................... 2
2. GENERAL DESCRIPTION ......................................................................................................... 3
3. FEATURES .................................................................................................................................. 3
4. HANDLING PRECAUTIONS ...................................................................................................... 3
5. NOMENCLATURE AND FUNCTIONS ....................................................................................... 4
6. BATTERY INSERTION ............................................................................................................... 5
7. CHANNEL NUMBER SETTING .................................................................................................. 6
8. OPERATION................................................................................................................................ 6
9. A/B SWITCH FUNCTION AND USAGE METHOD .................................................................... 7
10. TALK SWITCH SETTING ......................................................................................................... 8
11. CHIME SETTING ....................................................................................................................... 8
12. MICROPHONE SENSITIVITY SETTING .................................................................................. 9
13. WHEN USING EXTERNAL MICROPHONE ............................................................................. 9
14. USING POCKET CLIP .............................................................................................................. 10
15. TROUBLESHOOTING .............................................................................................................. 11
16. FREQUENCY TABLE ............................................................................................................... 11
17. CERTIFICATIONS ..................................................................................................................... 12
18. SPECIFICATIONS ..................................................................................................................... 12
Accessories .................................................................................................................................. 12
Optional products ......................................................................................................................... 12
Thank you for purchasing TOA Press-to-Talk Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

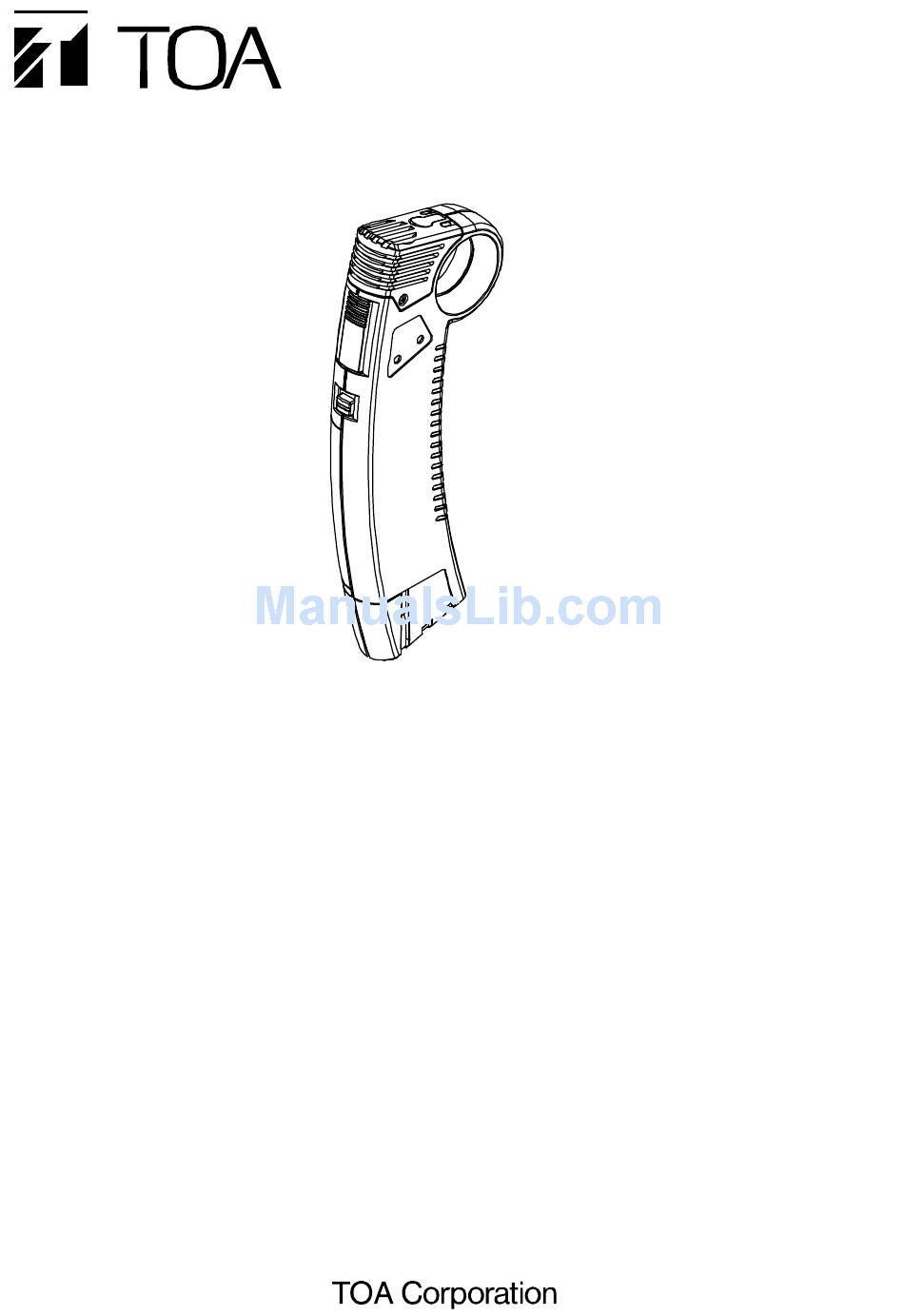

OPERATING INSTRUCTIONS
WM-5420
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa WM-5420
Summary of Contents for Toa WM-5420
-
Page 1: Table Of Contents
16. FREQUENCY TABLE ....................... 11 17. CERTIFICATIONS ........................12 18. SPECIFICATIONS ........................12 Accessories ..........................12 Optional products ......................... 12 Thank you for purchasing TOA Press-to-Talk Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. WARNING Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury. -
Page 3: General Description
Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer. Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail. -
Page 4: Nomenclature And Functions
NOMENCLATURE AND FUNCTIONS [Top] [Right side] [Front] [Rear] [Left side] [Inside battery cover] [Bottom] 1. Power / Battery lamps A green LED lights as long as the battery capacity is sufficient. When the battery capacity becomes low, the green LED starts to dim, while the red LED to light. The microphone does not transmit the signal if the channel selector switch is set to the empty channel. -
Page 5: Battery Insertion
When the battery capacity becomes low, the green LED of the Power/Battery lamps starts to dim, while the red LED to light. When only the red LED lights, replace the battery with a new one. Power/Battery lamp (red) WM-5420 top... -
Page 6: Channel Number Setting
When the setting is incorrect or done improperly, the red and green indicators of the power/Battery lamps will blink alternately, indicating an error. Check again and reconfigure your setting. Power/Battery lamp (red) WM-5420 top BANK setting Inside battery cover... -
Page 7: A/B Switch Function And Usage Method
After removing battery cover, use the supplied screwdriver or any screwdriver with a pointed tip to change settings. A/B SWITCH FUNCTION AND USAGE METHOD Inside battery cover WM-5420 sets different combinations of channels and functions as mode A or mode B. By switching [A] mode the A/B modes, one microphone can be used in two different ways. -
Page 8: Talk Switch Setting
10. TALK SWITCH SETTING This function is the setting for the talk-switch ON/OFF. Talk-switch Select lock option using talk-switch inside battery cover and set A/B mode. Note Setting should be done when talk-switch is off. If talk-switch is on, the setting will not change. Inside battery cover LOCK OFF/ON Talk switch setting... -
Page 9: Microphone Sensitivity Setting
Talk-switch SETTING EXTERNAL MICROPHONE The optional microphone YP-M201 has the talk-switch. This can be available to turn on/off WM-5420. Select external microphone function using external microphone switch inside battery cover. Note Setting should be done when internal and external talk-switch is off. -
Page 10: Using Pocket Clip
(Default setting is off) Note If the external microphone function is set to “on”, WM-5420 will sometimes turn on when the external microphone is being plugged or unplugged. Check if WM-5420 is on/off using Power/Battery lamps when plugging or unplugging external microphone. When WM- 5420 is on, use the talk-switch on WM-5420 or the external microphone to turn “off”. -
Page 11: Troubleshooting
15. TROUBLESHOOTING Solution Problem Possible Causes Power/Battery lamps does not light Is the battery polarity correct? Replace the battery correctly. (for both red and green indicators) Is the battery capacity low? Replace with new battery. even when the microphone is turned on. -
Page 12: Certifications
17. CERTIFICATIONS Hereby, TOA Electronics Europe GmbH, declares that this wireless microphone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In compliance with EN 301 489-01:V1.9.2(2011-09) EN 301 489-09:V1.4.1(2007-11) EN 300 422-2 V1.4.1 (2015-06)
