instrUction ManUal
Digital Wireless Microphone
WM-D5200
Thank you for purchasing TOA's Digital Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-D5200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa WM-D5200

Summary of Contents for Toa WM-D5200

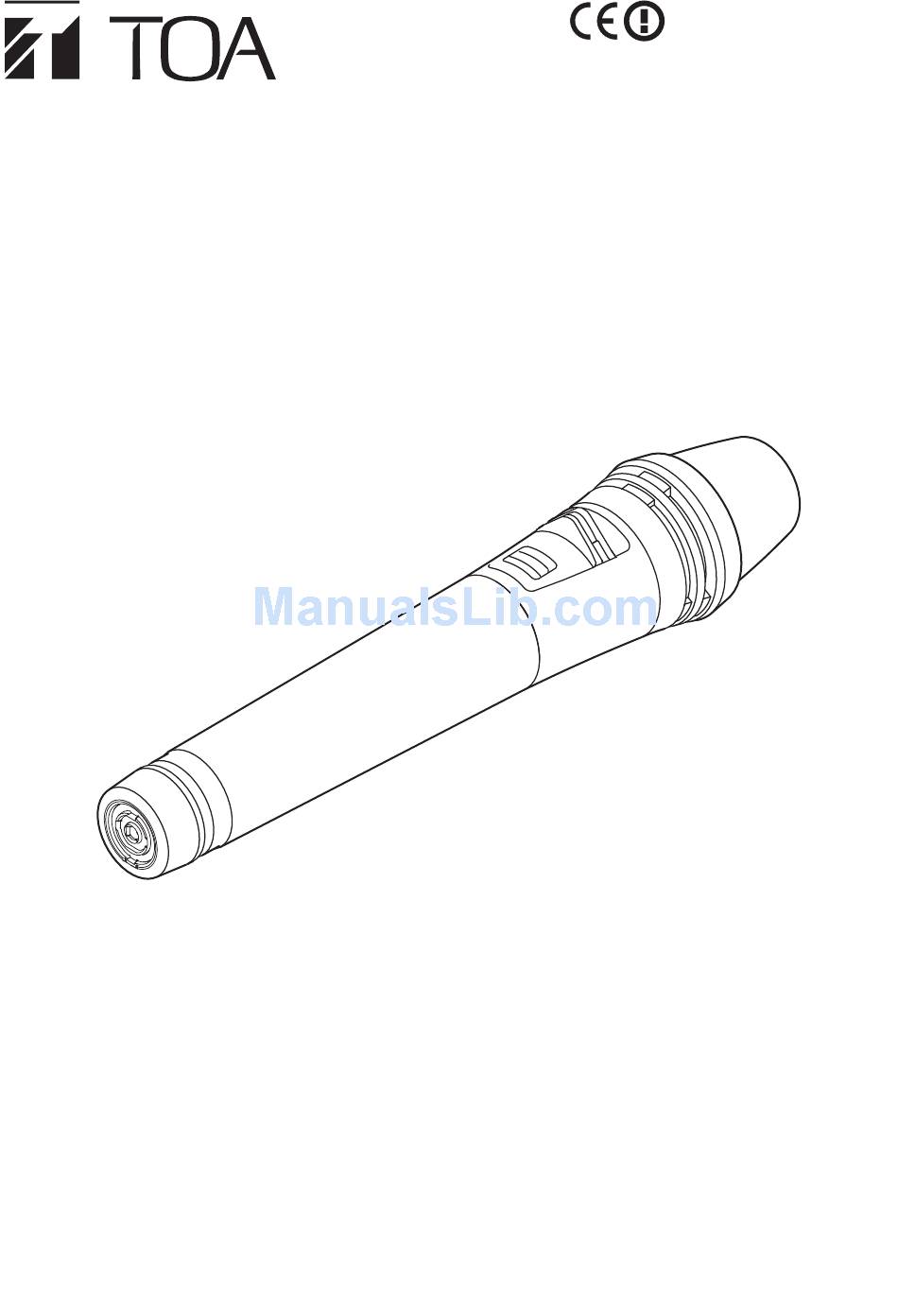

  • Page 1 ManUal Digital Wireless Microphone WM-D5200 Thank you for purchasing TOA’s Digital Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    taBle oF contents 1. saFetY precaUtions ......................3 2. general Description ....................... 4 3. FeatUres ..........................4 4. hanDling precaUtions ....................4 5. noMenclatUre anD FUnctions ................... 5 6. preparing Batteries ......................7 6.1. Battery Insertion ........................7 6.2. Guide to Battery Operating Times ..................7 6.3.

  • Page 3: Safety Precautions

    1. saFetY precaUtions • Before use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety. • After reading, keep this manual handy for future reference. · Avoid using both new and old batteries Warning together. · Never charge batteries of the type which Indicates a potentially hazardous situation are not rechargeable. which, if mishandled, could result in death ·...

  • Page 4: General Description

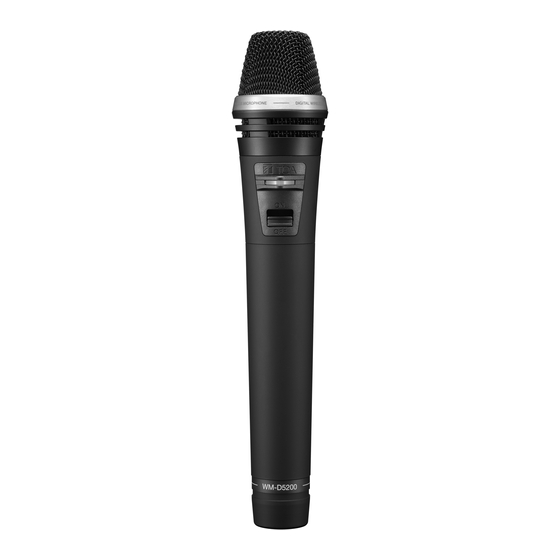

    2. general Description The WM-D5200 is a digital wireless microphone employing a condenser microphone element that features high sensitivity and clear sound quality. The microphone is specially designed to be used in conjunction with TOA's WT-D5800 digital wireless receiver. 3. FeatUres • Employs the PLL-synthesizer system.

  • Page 5: Nomenclature And Functions

    5. noMenclatUre anD FUnctions [Front] 1. power switch [on/oFF] Power can be turned on by sliding the power switch to the ON position, while it can be turned off by sliding it back to the OFF position. 2. Battery checker (green/orange/red) Lit: Power ON Unlit: Power OFF*...
  • Page 6 [Battery case internals – front] [Battery case internals – side] 4. Bank selector switch 8. encryption setting switch Make sure that the microphone is identical 9. code setting switch [0 – 9] to the wireless receiver in the bank number. 5.

  • Page 7: Preparing Batteries

    6. preparing Batteries The WM-D5200 can operate on both the optional rechargeable battery or replaceable dry batteries. Please carefully read the corresponding sections for correct use. 6.1. Battery insertion step 1. Turn off the power switch. step 2. Hold the microphone body and rotate the battery compartment cover counterclockwise to remove step 3.

  • Page 8: When Operating On Rechargeable Battery

    Charge the dedicated rechargeable battery*. caUtion Failure to observe these instructions could cause fire or personal injury due to a bursting battery. * T he optional TOA WB-2000-2 (package of 2). notes • When operating on rechargeable batteries, the optional BC-2000 Battery charger is required. • For rechargeable batteries, be sure to use the optional BC-2000 or the optional WB-2000-2 (package of 2).

  • Page 9: Operation

    7. operation step 1. Confirm that the wireless microphone and the wireless receiver are identical in the bank and channel numbers If not identical, turn the power switch to the OFF position, then set the bank and channel numbers to the same ones as the receiver. step 2. Turn the Power switch to the ON position. Then, confirm the battery checker will light green or orange. step 3. Turn the Power switch to the OFF position after use. 8.

  • Page 10: Performing Encryption Settings

    8.2. performing encryption settings To enhance security, the WM-D5200 is provided with an encryption setting function that prevents leakage of transmitted information. This function also has the advantage of eliminating radio interference if enabled. Before enabling the encryption setting, be sure that bank and channel settings are completed first. In addition to the WM-D5200, the WT-D5800 Digital Wireless Receiver also requires setup.
  • Page 11 8.2.2. performing encryption settings [switching the encryption function from oFF to on] See also the instruction manual enclosed with the WT-D5800 receiver. step 1. Enable the receiver's encryption function. step 2. With the battery compartment cover removed, switch ON the microphone power switch and confirm that the Encryption indicator is unlit.
  • Page 12 [switching the encryption function from on to oFF] step 1. With the battery compartment cover removed, switch ON the microphone power switch and confirm that the Encryption indicator is lit. step 2. Switch OFF the power switch. step 3. Switch ON the microphone power switch while holding down the Encryption setting switch.

  • Page 13: Performing Code Settings (When Encryption Function Is Off)

    8.3. performing code settings (When encryption Function is oFF) 8.3.1. code setting summary By presetting the specified code between the wireless microphone and receiver, audio is only output when a digital signal received from the wireless microphone has the same ID code as the receiver.

  • Page 14: Performing Transmission Output Changeover Switch Settings

    8.4. performing transmission output changeover switch settings Transmission can be set for either of two outputs: ‘H’ (10 mW) or ‘L’ (1 mW). The switch is factory-preset to the ‘H’ position. note Be sure to turn the microphone’s power switch OFF before performing settings. step 1. Confirm that the power switch is turned OFF, then remove the battery compartment cover and battery. step 2. Using the supplied screwdriver, set the changeover Screwdriver switch to the desired transmission output.

  • Page 15: Convenient Functions (Microphone Sensitivity Selector Switch Settings)

    9. conVenient FUnctions (Microphone sensitivity selector switch settings) Microphone sensitivity can be set to "0 dB" (H) or "–10 dB" (L). notes • Switch OFF the power switch when selecting the sensitivity. • When the sensitivity is set to "H," avoid positioning the microphone too close to the mouth and speaking in a loud voice, as the sound could become muddled and difficult to understand. step 1. Confirm that the power switch has been switched off, then remove the battery compartment cover. step 2. Using the supplied screwdriver, set the switch to the desired sensitivity. step 3.

  • Page 16: Specifications

    Storage case ............1 Screw driver (for setting) ......... 1 Microphone holder ..........1 note The WM-D5200 cannot communicate with the TRANTEC Wireless System (S4 and S5 Series) nor with the TOA Analog Wireless System (WT-5800, WT-5805, and WT-5810 etc.).

  • Page 17: Declaration Of Conformity

    Tel.: +44 (0) 870 774 0987; Fax: +44 (0) 870 777 0839; URL: www.toa.co.uk German Office: TOA Electronics Europe GmbH, Süderstraße 282, 20537 Hamburg, Germany Tel: +49 / (0)40 / 25 17 19-0, Fax: +49 / (0)40 / 25 17 19-98 URL: www.toa.eu...
  • Page 18 WM-D5200 Hiermit erklärt TOA Electronics Europe GmbH die Österreich Übereinstimmung des Funkmikrofon mit den grundlegenden Deutschland Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. Bij deze verklaart TOA Electronics Europe GmbH dat deze België draadloze microfoon voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
  • Page 19 TOA Electronics Europe GmbH declara que este Microfone Portugal Emissor está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Härmed intygar TOA Electronics Europe GmbH att denna Trådlös mikrofon står I överensstämmelse med de väsentliga Sverige egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
  • Page 20 Use oF WM-D5200 Der Gebrauch dieses Funkmikrofons für andere Zwecke als zur Übertragung eines Tonsignals an einen passenden Funkempfänger ist nicht zulässig. Österreich Wichtiger Dieses Gerät arbeitet auf in der europäischen Schweiz hinWeis ! Gemeinschaft (EU) nicht harmonisierten Deutschland Frequenzen. Abhängig vom geografischen Gebiet dürfen nur bestimmte Frequenzen legal mit oder ohne Autorisierung/individueller Lizenz entsprechend der beigefügten...
  • Page 21 Es ilegal utilizar este micrófono inalámbrico para cualquier otro propósito que no sea transmitir una señal de audio a su correspondiente receptor o módulo sintonizador. ¡ aViso España Este dispositivo hace uso de bandas de iMportante ! frecuencia que no son legales en toda la Comunidad Europea (CE). Dependiendo del área geográfica, ciertas frecuencias se pueden utilizar legalmente, con o sin autorización individual, según se indica en la tabla de frecuencias.
  • Page 22 È illegale utilizzare questo radiomicrofono per qualsiasi altro scopo che non sia la trasmissione di un segnale audio ad ogni suo ricevitore o modulo sintonizzatore. Questo prodotto utilizza bande di frequenza aVViso Italia che non sono totalmente armonizzate in tutta iMportante ! Svizzera la Comunità...
  • Page 24 Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/ 133-07-00050-00...
