Genelec SAM 8340A Operating Manual page 3

DIP SWITCHES FOR
STAND-ALONE USE
MAINS INPUT
GLM NETWORK
CONNECTORS

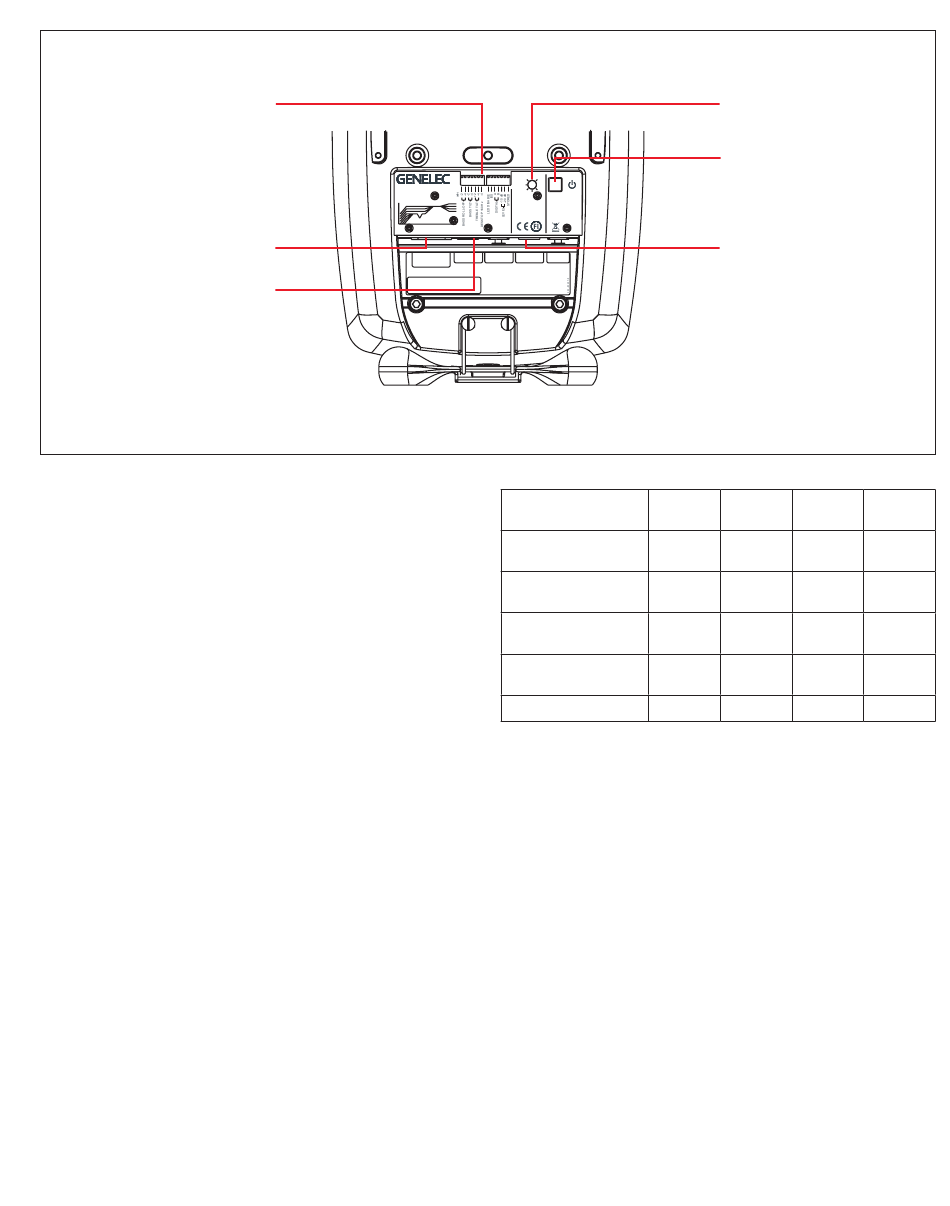

Figure 2. Connectors and controls on the back panel of a 8340A.
supply is stable.
The ANALOG IN connector is used for analog audio signals. The
maximum input level is +25 dBu. These monitors produce 100
dB SPL sound level at 1 meter in free space for an analogue
input signal of -6 dBu.
The DIGITAL IN AES/EBU female XLR connector is for AES/
EBU formatted digital audio input signals. This input is selected
automatically when a valid digital audio signal is present.
Analog input is selected when the AES/EBU signal input is
disconnected. The AES/EBU input supports two channels in a
single cable). When the digital source device controls the digital
output level, it may be advantageous to lower the level on the
monitor's controls, which will enable the use of a higher digital
signal level with more digital resolution. With digital inputs the
audio is referenced to 0 dBFS (dB relative to the digital full scale,
the largest level that can be represented in the AES/EBU signal).
These monitors produce 100 dB SPL sound level at 1 meter in
free space for a digital input signal of –30 dBFS. The DIGITAL
OUT male XLR carries an unaltered copy of the digital signal fed
into the digital in connector. This enables daisy-chaining up to
four monitors.
The CONTROL NETWORK RJ-45 connectors are used with
Genelec Loudspeaker Manager™ (GLM™) network. These
connectors are not Ethernet LAN compatible. Do not connect
to Ethernet LAN.
Stand-Alone Control Functions
Bass Roll-Off Control
Bass Roll-Off control attenuates the monitor's output near the
-4
ON ON
-2 -6
OFF OFF
0 dBu
SMART ACTIVE MONITOR
+2 +6
+4
SENSITIVITY RESET TO FACTORY
+2 ALL OFF
0 IN dBu FOR SETTINGS: PUSH
-2
BASS
100 dB SPL (1 m) BUTTON FOR 10 SEC
-4
TILT TREBLE
-6
TILT
dB DESKTOP
BASS
ROLL-OFF
20 160 800 4k 20k
Frequency (Hz)
MAINS INPUT
GLM DIGITAL IN DIGITAL THRU ANALOG
50 / 60 Hz 200 W NETWORK AES/EBU AES/EBU IN
100 - 240 V~
This device complies
8340A
with FCC Part 15 and
Canadian ICES-003
radio frequency
SERIAL NUMBER
Class B emission
MAGNETICALLY SHIELDED
requirements. Refer
to operating manual MADE IN FINLAND
for full information.
www.genelec.com
Monitor
Mounting Position
Flat anechoic
response
Free standing in
a damped room
Free standing in
a reverberant room
Near field on
a reflective surface
In a corner
Table 1. Suggested Tone Control settings for some typical moni-
tor placement positions.
cut-off frequency. Attenuation levels of -2 dB, -4 dB or -6 dB
(both switches ON) can be selected.
Desktop 160 Hz
The desktop low frequency control (switch 5) attenuates the
bass frequencies around 160 Hz by 4 dB. This feature is de-
signed to compensate for the boost often occurring at this fre-
quency range when the monitor is placed upon a meter bridge,
table or similar reflective surface.
Bass Tilt Control
The Bass Tilt control switches (swiches 3 and 4) offer three at-
tenuation levels for the bass response below 800 Hz, usually
necessary when the monitors are placed near room boundaries.
The attenuation levels are -2 dB, -4 dB and -6 dB.
Treble Tilt Control
Treble Tilt control allows adjusting the treble response above 5
ROTARY LEVEL
CONTROL
POWER
SWITCH
AUDIO SIGNAL
CONNECTORS:
-DIGITAL IN
-DIGITAL THRU
-ANALOG IN
Treble Bass Bass
Tilt Tilt Roll-Off
None None None
None -2 dB None
None -4 dB None
None -2 dB None
None -4 dB -4 dB
Desktop
None
None
None
-4 dB
None
