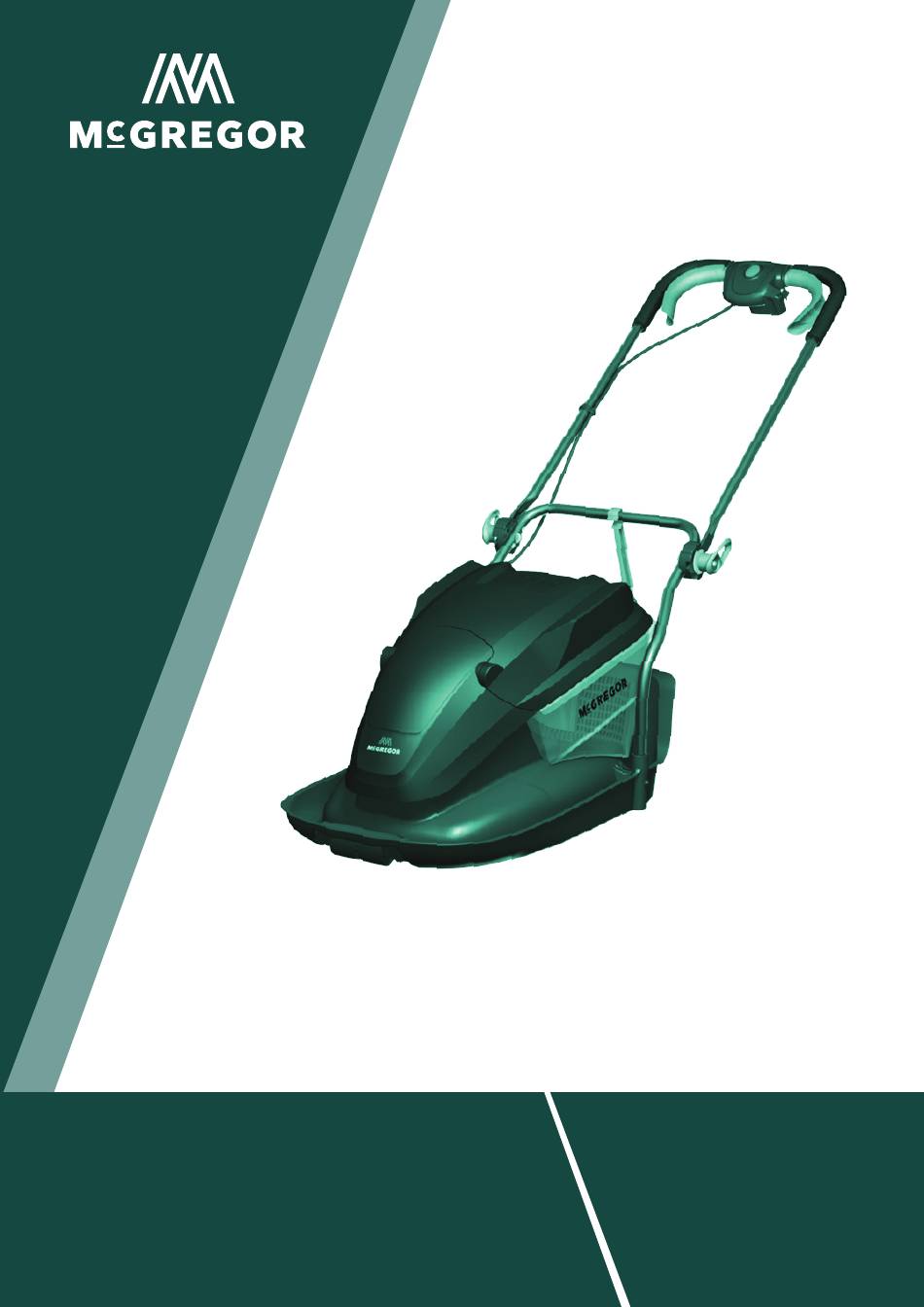

ORIGINAL
INSTRUCTION
MANUAL

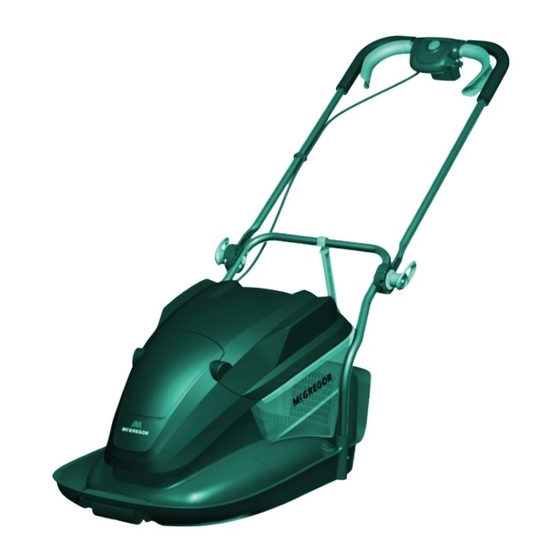

McGregor 1450W
Electric Hover Mower
7543120 (Model: MEH1430A)
Important - Please read these
instructions fully before starting assembly
AFTER SALES SUPPORT
These instructions contain important information that will help
0345 605 2063
you get the best from your hover, ensuring it is assembled
correctly and safely. If you need help or have damaged or
missing parts, call the Customer Helpline on 0345 605 2063
Oct 2017
Advertisement
Table of Contents
Related Manuals for McGREGOR MEH1430A
Summary of Contents for McGREGOR MEH1430A
- Page 1 ORIGINAL INSTRUCTION MANUAL McGregor 1450W Electric Hover Mower 7543120 (Model: MEH1430A) Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT These instructions contain important information that will help 0345 605 2063 you get the best from your hover, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Safety Information ............................ 3 Warning Symbols ........................... 3 General Safety............................5 Personal safety ............................6 Operating safety ............................. 9 Maintenance and storage safety ......................14 Intended use ............................15 Service ..............................16 In the Box ............................... 17 Parts ..............................17 Assemble.............................. -
Page 3: Safety Information
Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols Before any use, refer to the corresponding paragraphin the present manual. This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead to an accident for yourself or for others. - Page 4 Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols (continued) Guaranteed sound power level value in 96 dB. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.Waste electrical products should not be disposed of with household waste.
-
Page 5: General Safety
Safety Information Important - Please read these instructions fully before starting assembly General Safety Important! • Keep this instruction manual in a safe place for future reference. • Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. •... -
Page 6: Personal Safety
Safety Information Important - Please read these instructions fully before starting assembly Personal Safety • Do not operate the machine in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 7 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) electric shock. The maximum operating current of the RCD must be less than 30mA. • The voltage indicated on the rating plate must correspond to the voltage of the power source. •...
- Page 8 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
-
Page 9: Operating Safety
Safety Information Important - Please read these instructions fully before starting assembly Operating Safety TRAINING • Read the instructions carefully. Be familiar with the controls and the proper use of the machine. • Never allow people unfamiliar with these instructions or children to use the product. - Page 10 Safety Information Important - Please read these instructions fully before starting assembly Operating Safety (continued) OPERATION • Operate the machine only in daylight or in good artificial light. Do not expose the product to rain or wet conditions. Avoid using the product in bad weather conditions especially when there is a risk of lightning.
- Page 11 Safety Information Important - Please read these instructions fully before starting assembly Operating Safety (continued) • Do not use the product if the cord is damaged or worn. • Warning! The cutting blade may continue to move after the product is switched off. •...
- Page 12 Important - Please read these instructions fully before starting assembly Operating Safety (continued) • Before clearing blockages or unclogging chute, • Before checking, cleaning or working on the machine, • After striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine.
- Page 13 Important - Please read these instructions fully before starting assembly Operating Safety (continued) • Injuries and damage to property due to broken application tools or sudden impact of hidden objects during use. • WARNING! This machine produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult...
-
Page 14: Maintenance And Storage Safety
Important - Please read these instructions fully before starting assembly Maintenance and storage safety • Keep all nuts, bolts and screws tight to be sure the machine is in safe working condition. • Check the grass collector frequently for wear or deterioration. -
Page 15: Intended Use
Safety Information Important - Please read these instructions fully before starting assembly Intended use This hover is designed for domestic use only: • This electric hover is intended for mowing lawns in domestic and hobby gardens. • This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass, e. -
Page 16: Service
Safety Information Important - Please read these instructions fully before starting assembly Service This tool is manufactured in accordance with the relevant safety regulations. To avoid danger, electrical appliances must only be repaired by qualified technicians. Call our customer helpline at 0345 605 2063 for advice. Customer Helpline 0345 605 2063... -
Page 17: In The Box
In the Box Parts Switch box Grassbox Cable clamp Spacer*3 (one piece is pre- On/Off switch lever Safety lock-off Spanner assembled) button Upper handle Grassbox lid Wheel Cable strain relief Wing Knob Deck hook Lower handle Screw*2 Customer Helpline 0345 605 2063... -
Page 18: Assemble
Assemble Step 1 - Fix the lower handle • Fully insert the lower handle into the slot on the hover deck. • Fasten in position with the 2 screws provided. Step 2 - Fix the upper handle • Attach the upper handle to the lower handle tubes using bolts and wingknobs. •... -
Page 19: Step 3 - Fix The Cable
Assemble Step 3 - Fix the cable • Ensure that the cables clamps are used to fix the cable to the handle. • The spanner could be easily fixed on the machine like below way. Customer Helpline 0345 605 2063... -
Page 20: Prepare
Prepare Step 1 - Connection to the power supply • Hook the mains cable through the cable strain-relief. Step 2 - Connect the plug to the main socket Customer Helpline 0345 605 2063... -
Page 21: Step 3 - Mowing Tips
Prepare Step 3 - Mowing tips 33 mm 26 mm 19 mm 12 mm • Verify that the lawn is free of stones, sticks, wires, and other objects that could damage the hover mower. • When cutting thick grass, reduce walking speed in order to maintain a high blade speed for a more effective cut and better hover lift. - Page 22 Prepare Step 4 - Setting the cutting height (continued) Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Removing the blade and fan. USE GLOVES. • To remove the blade bolt, hold the blade firmly and with the spanner provided loosen the blade bolt.
- Page 23 Prepare Step 4 - Setting the cutting height (continued) IMPORTANT! Ensure the power cord is disconnected from the mains supply and wait until the cutting head has stopped rotating before adjusting the cutting height. • There are 4 different cutting heights. Figure 7 shows the lowest cutting height, 3 spacers. Figure 8 shows the highest cutting height, no spacers.
-
Page 24: Operate
Operate Step 1 - Switching on • Press and hold the button (1). • Pull either switch lever (2) towards the handle and hold in position. Step 2 - Switching off • Release the switch lever (2). Customer Helpline 0345 605 2063... -
Page 25: Step 3 - Mowing Direction
Operate Step 3 - Mowing direction • To avoid cutting the mains cable and to collect grass clippings correctly please mow away from the plug socket following the arrows and avoid twisting the power cord. Customer Helpline 0345 605 2063... -
Page 26: Maintenance & Repair
Maintenance Maintenance WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! • Keep the underbody and cutting blade clean and free of debris. Remove clippings from the discharge chute. -
Page 27: Storage
Maintenance Mowing advice (continued) IMPORTANT! Before you remove the grass collection box, switch off the motor and wait until the blade reaches a complete standstill. To remove the grass box, lift open the grass box lid and lift up the grass box. Do not remove grass cuttings in the hover casing or on the cutter by hand or with your feet. -
Page 28: Technical Data
Technical Data Technical Data Table Model 7543120 (MEH1430A) Voltage 220-240V~ 50 Hz Power input 1450W Motor speed 4300/min Cutting width 30cm Cutting height adjustment 12 mm, 19 mm, 26 mm, 33 mm, 4 levels Volume of grass box 20 litres... -
Page 29: Recycling And Disposal
Technical Data Recycling and disposal • The product comes in a package that protects it against damage during shipping. Keep the packaging until you are sure that all parts have been delivered and the product is functioning properly. Recycle the packaging afterwards. •... -
Page 30: Troubleshooting
Troubleshooting General Troubleshooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing must be worn when performing these... -
Page 31: Getting Help
Getting Help Customer Helpline Our dedicated UK based customer helpline can assist you with assembly, parts queries and technical support. Our experts are here to get you back enjoying your garden in no time. Calling our service does not affect your statutory rights. Customer Helpline 0345 605 2063 Guarantee Dear Customer,...
