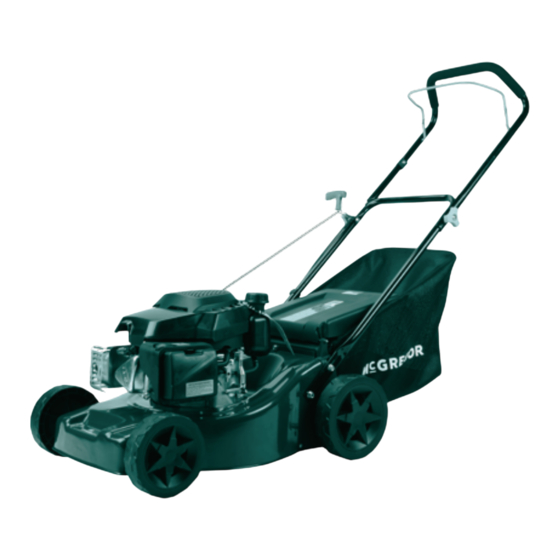

McGREGOR XSS41E Quick Start Manual

ASSEMBLE
Unpack the lawn mower ensuring all parts are present
(see parts list overleaf) before discarding the packaging.
1
Align the lower handle
with the holes in the
deck. Fix the lower
handle using the 4 handle
wrench.
Locate upper handle
2
bar on lower with the
bolts. Secure the left
bolt using plastic
tightening knob
ensuring cables are
not twisted.
OPERATE
Fill the petrol tank with 0.9l of normal 95 Octane petrol
(standard unleaded) using a funnel and measuring jug.
9
When starting a cold
engine, press down the
primer fully 3~5 times.
When starting a warm
engine, the primer
does not need to be
used.
10
Hold the stop/start bar
firmly to the handle to
disengage the motor
brake and automatic
cut out.
3
Locate the rope guide
as the image showed,
and secure using the
plastic knob.
4
Using the cable
clip provided,
secure the cables to
the handle without
trapping them.
To start the engine slowly
11
pull the start cord out
until resistance is felt
(approx 10-15cm) then
start the engine with a
sharp vigorous pull.
12
To stop the mower
release the stop/start bar.
PREPARE
Follow these steps to ensure quick and easy set up
every time.
5
Attach the grass bag
to the frame by
hooks.
6
hook the grass bag
over the plastic
hooks on the rear
of the mower.
7
Adjust the cutting
height via the height
2
adjusting handle.
1
IMPORTANT INFORMATION!
Always read the instruction manual thoroughly
before starting the lawnmower.
-
In cold weather it may be necessary to repeat the cold engine starting process.
Never allow the starter cord to snap back.
Check the oil level before every use. Always use high quality detergent oil classified
SAE30 oil (or equivalent eg 5W 30, often termed as 4 Stroke lawn mower oil).
If you have any difficulties please contact the
8
Add Full
9
helpline on 0345 605 2062
The engine does not
come with oil. Add
0.4 litres oil (SAE 30).
CHECK THE OIL LEVEL
BEFORE EVERY USE.
Slowly pull out starter
cord & hook it through
the eye of rope guide.
You should ALWAYS
start your mower
from this position.
