McGREGOR MCM30A Original Instruction Manual

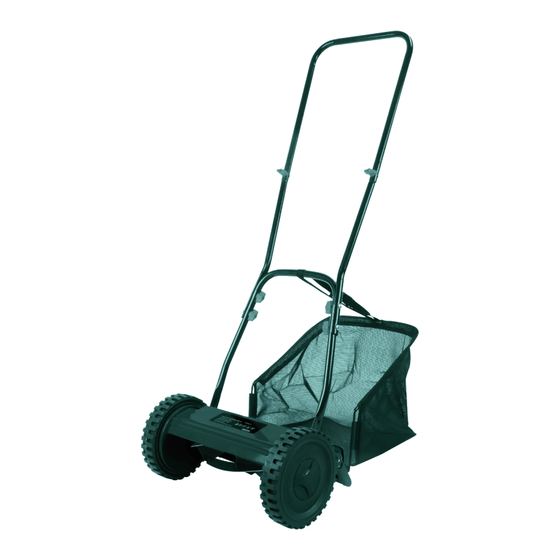

30cm hand push mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

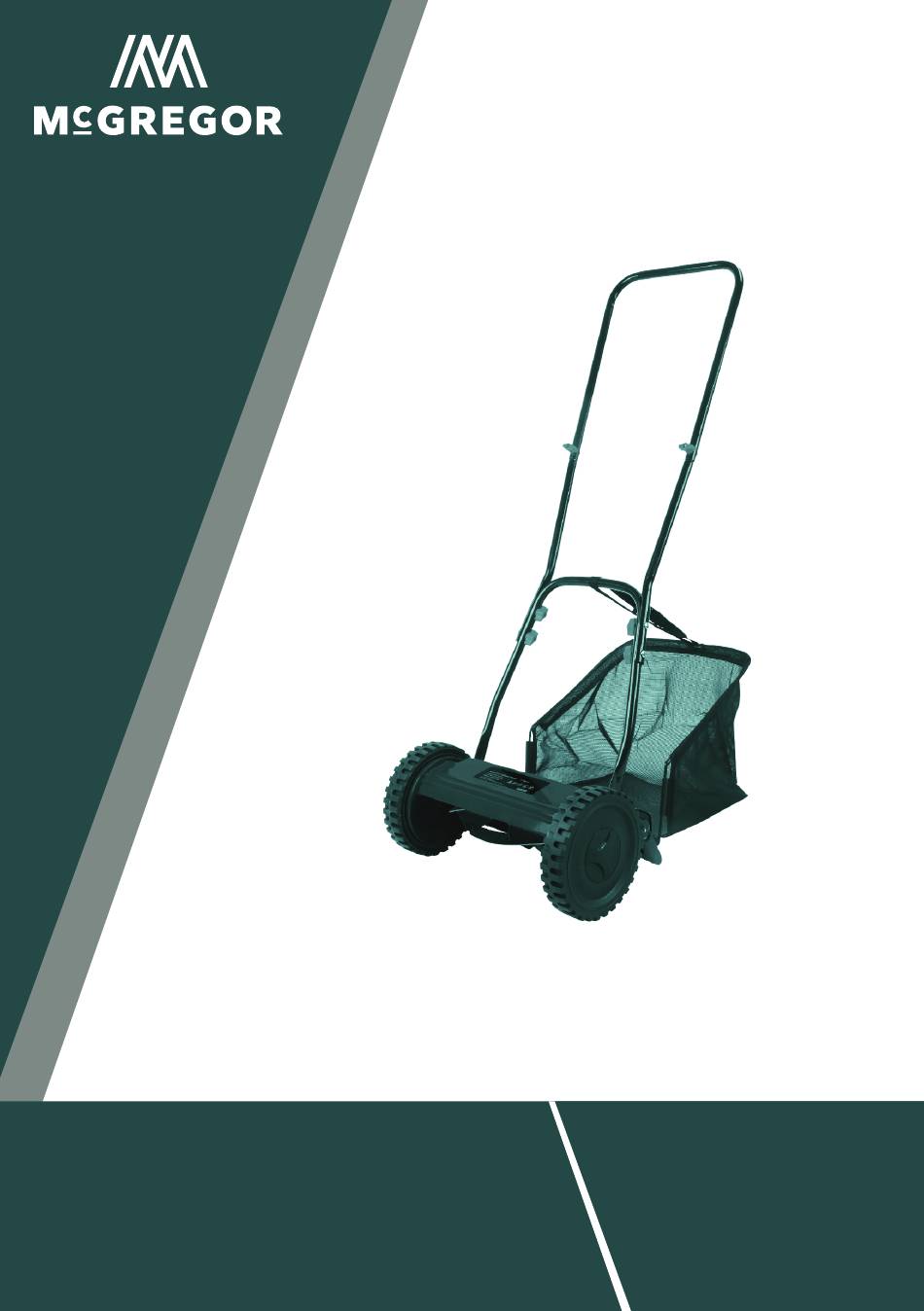

1 0f 19
Important - Please read these
instructions fully before starting assembly
These instructions contain important information that will help
you get the best from your mower, ensuring it is assembled
correctly and safely. If you need help or have damaged or
missing parts, call the Customer Helpline on 0345 605 2062
INSTRUCTION
McGregor 30cm Hand Push
ORIGINAL
MANUAL
Mower
4542320 (Model: MCM30A)
AFTER SALES SUPPORT
0345 605 2062
SAN NO: 03218AODE011
V1.5: 11/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCM30A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for McGREGOR MCM30A

Summary of Contents for McGREGOR MCM30A

  • Page 1 ORIGINAL INSTRUCTION MANUAL McGregor 30cm Hand Push Mower 4542320 (Model: MCM30A) 1 0f 19 V1.5: 11/23 Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2062 These instructions contain important information that will help...

  • Page 2: Table Of Contents

    Contents Introduction....................3 Safety Information ....................3 Parts list ........................9 Assembly..................10 Operation....................14 Maintenance and Storage ..................15 Troubleshooting...................17 Technical Data ......................17 Recycling and Disposal....................18 Getting Help .........................18 Guarantee ........................19 Produced in China for Argos Limited, London, EC1N 2HT, UK. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK.

  • Page 3: Introduction

    We would you like to be completely satisfied with your new product and hope you will enjoy using this tool for many years. Your Mcgregor lawn mower has been designed for mowing grass in domestic gardens only. It must not be used to mow unusually high,dry or wet grass,e.g. pasture grass or for shredding leaves.
  • Page 4 Safety Information Important - Please read these instructions fully before starting assembly Preparation 3. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Operation 1.
  • Page 5 Safety Information Important - Please read these instructions fully before starting assembly Maintenance 1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. 2. Check the grass catcher frequently for wear or deterioration.
  • Page 6 Safety Information Important - Please read these instructions fully before starting assembly Personal Safety 3. Do not overreach. Keep proper footing and balance at all times. This enables better control of the mower in unexpected situations. 4. Dress properly. Do not wear loose clothing or jewellery.
  • Page 7 Safety Information Important - Please read these instructions fully before starting assembly Use and care are caused by poorly maintained machine. 5. Keep cylinder blades sharp and clean. Properly maintained cutting blades with sharp cutting edges are less likely to bind and are easier to control.
  • Page 8 Safety Information Warning Symbols Before any use, refer to the corresponding paragraph in the present manual. Warning! This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead to an accident for yourself or for others.

  • Page 9: Parts List

    Parts list Parts description Upper handle Grass collecting bag Extension handle Cutting height adjustment knob Lower handle Wheels Cylinder blade Grass collecting bag support strap Mower body 10. Nuts and screws Customer Helpline 0345 605 2062 9 of 19...

  • Page 10: Assembly

    Assembly Preparing to assemble the cylinder mower WARNING! Always take care when removing the packaging to prevent damage to you or to the cylinder mower. Keep the carton in guarantee time. Always recycle the packaging in accordance with local recycling schemes. Before using the tool, read the instruction book carefully.
  • Page 11 Assembly Fit the upper handle with extension handle Slide the upper handle over the two extension handles until the holes are lined up, then secure them by using the nuts and screws provided. Assemble the grass collection bag WARNING! The grass collection bag need to be assembled well before use. Insert the metal frames into the plastic holes.
  • Page 12 Assembly Fit the grass collection bag Attach the box to the lawn mower by attaching the hooks in front of the box bracket to the two sides of the rear roller shaft. Circle the grass box strap around the extension handle and click the buckle. Prepare to use cylinder mower Caution! This operation will have to be done whilst carefully turning the cylinder blade.
  • Page 13 Assembly Fix blade setting Carefully tighten the two adjusting knobs by turning them slowly in the clockwise direction. When the cylinder blade just makes contact with the fixed blade turn the rotating knobs slightly in an anticlockwise direction until the rotating blade turns without touching the fixed blade.

  • Page 14: Operation

    Operation Operating the hand push mower WARNING! Be sure lawn is clear of stones, sticks, wire or other objects which could damage mower or user. The operation of mower can result in foreign objects being thrown into the eyes, which can damage your eyes severely. Always wear safety glasses while operating the mower.

  • Page 15: Maintenance And Storage

    Maintenance and Storage Maintenance and Repair IMPORTANT! Cylinder mowers have a difficult time with tall weeds such as dandelions which most times will cause the weeds to bend and not cut – cut often to prevent this. Cylinder mowers are relatively low maintenance. For consistent cutting follow the below instructions: Clean Always keep the cutting bar properly adjusted.
  • Page 16 Maintenance and storage Blade clearance adjustment All blades should slice the paper evenly, along the entire length of the cutter bar while the reel turns smoothly. If mower has an intermittent cut, adjustment should be made to the appropriate side of blades to attain proper cutting action. PAPER Storage and transportation CAUTION!

  • Page 17: Troubleshooting

    Blade clearance is too Adjust the blade and difficutl to operate narrow clearance, refer to maintenance section Technical data Technical Data Table Model No. MCM30A Cutting width 300 mm Variable cutting heights 18-38mm Grass collection box Volume 23litres Weight 6.3kg...

  • Page 18: Recycling And Disposal

    Recycling and Disposal Recycling and disposal Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Recycle rather than dispose of unwanted material in landfill whenever possible.

  • Page 19: Guarantee

    Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase.
