Atlas SM42T Specifications

Strategy Series

Specifications

Power Rating 16 Watts RMS
Transformer Taps 2, 4, 8, & 16 Watts and 8Ω Bypass
Frequency Response 115Hz – 16kHz (±5dB)
Sensitivity (1W / 1M) 88dB
Height 7" (177.8mm)
Width 5" (127mm)
Depth 5
15
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435

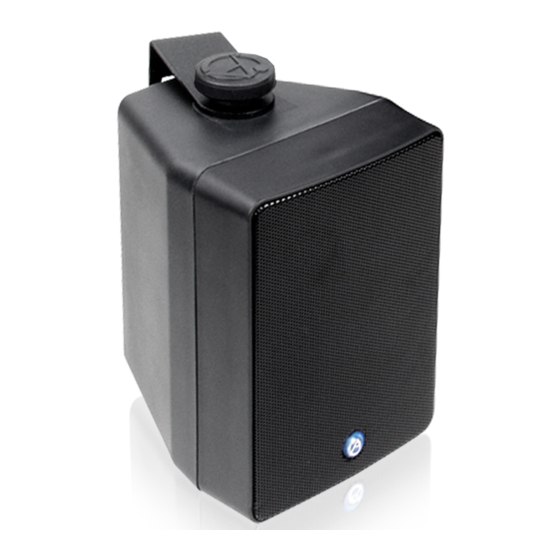

SM42T
Surface Mount Loudspeaker
®
SM42T-W
⁄ " (150.3mm)
16
Features
• C ompact, Two-Way Loudspeaker Systems for Exceptional
Performance in Sound Reinforcement Systems
• W eather-Resistant Construction For Year-round Indoor or Outdoor
Use, UV-resistant Talc Impregnated Polypropylene, Injection Molded,
Weatherproof Enclosure, Powder Coated Aluminum Grilles and all
Brass Hardware Inserts
• 100HR Salt Spray Test Per ASTM B117
• C olor Matched Heavy-duty Zinc Chromate Plated & Powder Coated
"C" Bracket (Included)
• H ighly Efficient 4" Polypropylene Woofer
• 1" Ferrofluid Cooled Dome Tweeter
™
• A tlas Sound TRX WAVEGUIDE
Frequency Wave Guide System Provides Accurate, Even High
Frequency Coverage
• A tlas Sound POLYGUARD ™ High Frequency Circuit Diverts Damaging
Transient Signals to Protect the Tweeter
• S crewdriver Adjustable 16 Watt 70.7V / 100V Transformer for
Distributed Sound Applications (may be bypassed for 8Ω operation via
tap selector switch)
• A ll ⁄ "-20 Hardware Inserts Allow Easy Integration of "Off The Shelf"
1
4
Security Hardware
• OMNIMOUNT 10 Series Compatible
™
• Available in Black or White
• Five-Year Warranty
Applications
Use surface-mount Atlas Sound SM42T loudspeaker systems for
c ommercial, professional, and residential applications or where
high-fidelity sound and weather-resistance are desired. Full-range
f requency response makes these systems ideal for indoor or o utdoor
installations, in monaural and stereo foreground or background music
s ystems, and for applications in boutiques / shops, restaurants / cafes,
corporate AV applications and houses of worship. Multi-position,
C-shaped mounting bracket and rugged construction provide optimum
installation flexibility and assurance of long-term service.
AtlasSound.com
– A Constant Directivity Style High
™
