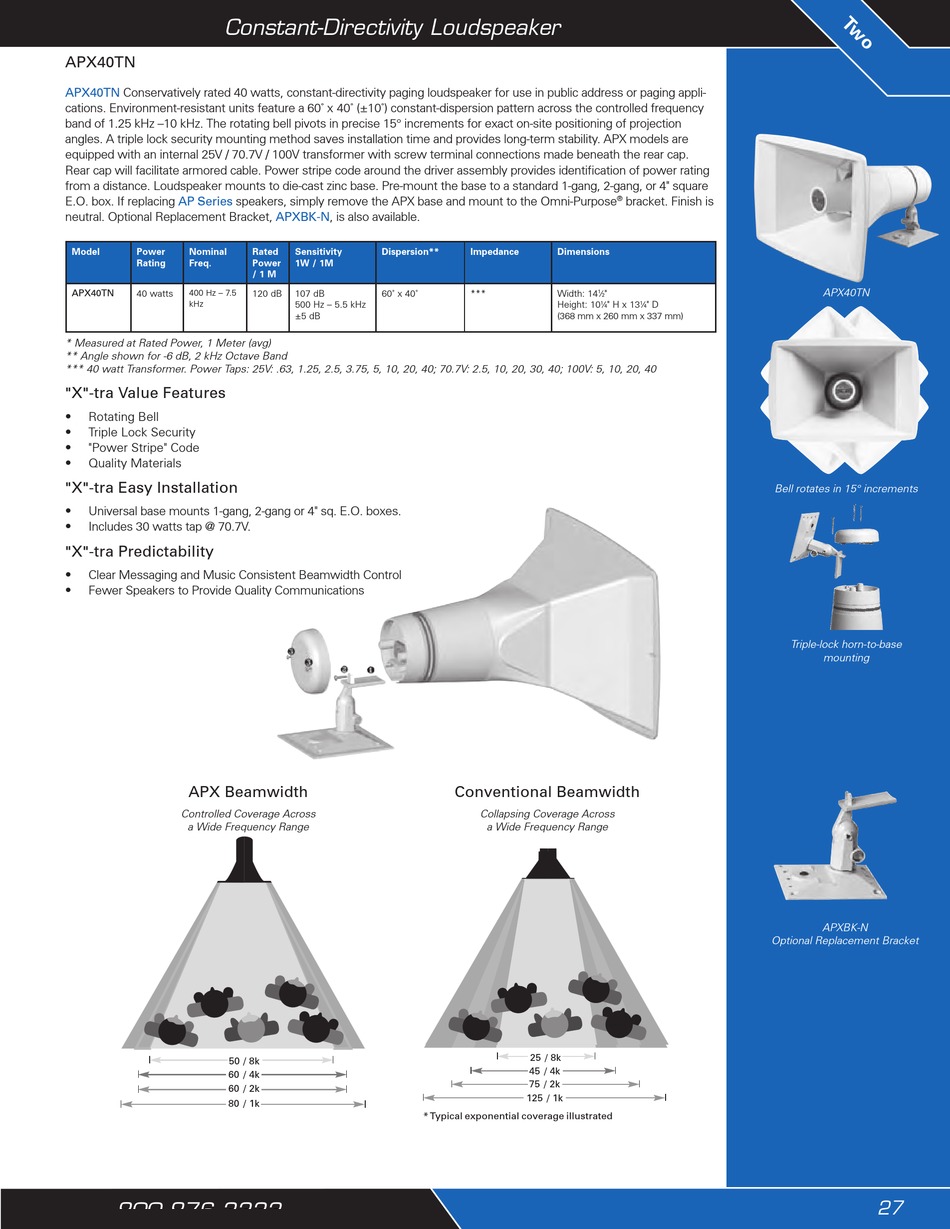

Constant-Directivity Loudspeaker
APX40TN
APX40TN

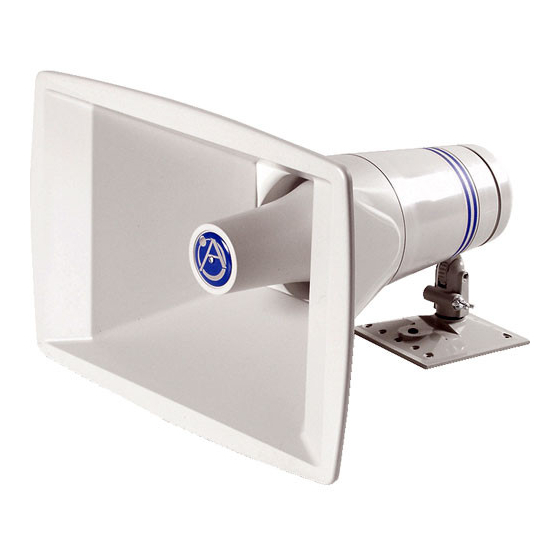

Conservatively rated 40 watts, constant-directivity paging loudspeaker for use in public address or paging appli-
cations. Environment-resistant units feature a 60˚ x 40˚ (±10˚) constant-dispersion pattern across the controlled frequency
band of 1.25 kHz –10 kHz. The rotating bell pivots in precise 15° increments for exact on-site positioning of projection
angles. A triple lock security mounting method saves installation time and provides long-term stability. APX models are
equipped with an internal 25V / 70.7V / 100V transformer with screw terminal connections made beneath the rear cap.
Rear cap will facilitate armored cable. Power stripe code around the driver assembly provides identification of power rating
from a distance. Loudspeaker mounts to die-cast zinc base. Pre-mount the base to a standard 1-gang, 2-gang, or 4" square
E.O. box. If replacing
speakers, simply remove the APX base and mount to the Omni-Purpose
AP Series
neutral. Optional Replacement Bracket, APXBK-N, is also available.
Model
Power
Nominal
Rating
Freq.
APX40TN
40 watts
400 Hz – 7.5
kHz
* Measured at Rated Power, 1 Meter (avg)
** Angle shown for -6 dB, 2 kHz Octave Band
*** 40 watt Transformer. Power Taps: 25V: .63, 1.25, 2.5, 3.75, 5, 10, 20, 40; 70.7V: 2.5, 10, 20, 30, 40; 100V: 5, 10, 20, 40
"X"-tra Value Features
Rotating Bell
Triple Lock Security
"Power Stripe" Code
Quality Materials
"X"-tra Easy Installation
Universal base mounts 1-gang, 2-gang or 4" sq. E.O. boxes.
Includes 30 watts tap @ 70.7V.
"X"-tra Predictability
Clear Messaging and Music Consistent Beamwidth Control
Fewer Speakers to Provide Quality Communications
APX Beamwidth
Controlled Coverage Across
a Wide Frequency Range
�� � ��
�� � ��
�� � ��
�� � ��
800.876.3333
Rated
Sensitivity
Dispersion**
Power
1W / 1M
/ 1 M
120 dB
107 dB
60˚ x 40˚
500 Hz – 5.5 kHz
±5 dB
� ������� ����������� �������� �����������
bracket. Finish is
®
Impedance
Dimensions
***
Width: 14
"
1
2
Height: 10
" H x 13
1
4
(368 mm x 260 mm x 337 mm)
�� � ��
�� � ��
�� � ��
�� � ��
Conventional Beamwidth
Collapsing Coverage Across
a Wide Frequency Range
�� � ��
�� � ��
�� � ��
��� � ��
" D
1
4
Bell rotates in 15° increments
Triple-lock horn-to-base
Optional Replacement Bracket
APX40TN
mounting
APXBK-N
27
