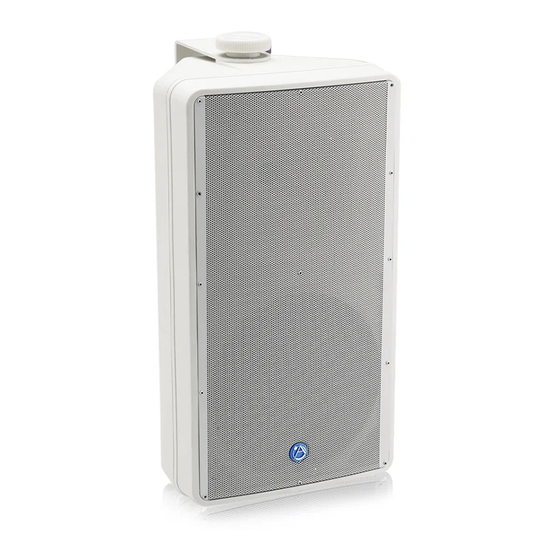

Atlas SM82T Specifications

SM82T-B

SPECIFICATIONS

MODEL:
POWER RATING (RMS):
FREQUENCY RESPONSE
(±3dB)
SENSITIVITY :
(1W/1M)
WOOFER SIZE:
CONE:
SURROUND:
MAGNET:
COMPRESSION DRIVER
SIZE:
DIAPHRAM
MATERIAL:
MAGNET:
CROSSOVER FREQUENCY:
CROSSOVER TYPE:
SELECTOR: 70.7 Volt Taps:
DIMENSIONS:
WEIGHT :
(WITH BRACKET)
Model SM82 (8 Ohm) Version also available, see SL1-1193
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2002 Atlas Sound
STRATEGY SERIES
SURFACE MOUNT LOUDSPEAKERS
SM82T-W
SM82T(-B,-W)
150 W
(Transformer Limited)
: 65Hz to 20kHz
92dB
8"
HYCONE Treated Paper
Treated Cloth
30 oz
1" (25mm)
Titanium
13.32 oz
2.5 kHz
1st Order Low Pass,
2nd Order High Pass
1.9, 3.8, 7.5, 15,
30, 60 Watts
16 1 ⁄ "H x 9 1 ⁄ "W x 8 7 ⁄ "D
2 1 6 1 6
41.9cm x 23.0cm x 21.49cm
18.08 lbs. (8.2kg)
Specifications subject to change without notice
Printed in U.S.A.
™

FEATURES:

• Compact, 2-way loudspeaker systems for exceptional performance
in music and sound reinforcement systems
• Weather-resistant construction for year-round indoor or outdoor use:
UV-resistant, talc impregnated, polypropylene, injection molded enclosure,
powder coated aluminum grilles and all brass hardware inserts
• Conforms to 100HR salt spray test per ASTM B117
• Color matched heavy-duty zinc chromate plated and powder coated
"C" Bracket (included)
• Highly efficient 8" HYCONE™ treated woofer
• 1" exit titanium high frequency compression driver
• Atlas Sound TRX WAVEGUIDE™– A constant directivity style high
frequency wave guide system provides accurate, even high
frequency coverage
• Atlas Sound POLYGUARD™' high frequency circuit diverts damaging
transient signals to protect the tweeter
• Screwdriver adjustable 60 Watt 70.7V/100V transformer for distributed
sound applications
• All 1 ⁄ "-20 hardware inserts allow easy integration of "off-the-shelf"
4
security hardware
• OMNIMOUNT™ 75 series compatible
• Available in black or white
• Five-year warranty

APPLICATIONS:

Use surface-mount Atlas Sound SM82T Series loudspeaker systems
for commercial, professional and residential applications or where
high-fidelity sound and weather-resistance is desired. Full-range
frequency response makes these systems ideal for indoor and outdoor
installation, in monaural and stereo foreground or background music
systems, and for applications in boutiques/shops, restaurants/cafes,
leisure, recreation/sports centers and houses of worship. Multi-posi-
tion, C-shaped mounting bracket and rugged construction provide
optimum installation flexibility and assurance of long-term service.

GENERAL DESCRIPTION:

Environment-resistant SM Series loudspeaker systems offer quality
sound reproduction and contemporary styling in a compact enclosure.
System components consist of a highly efficient woofer section and
1" exit compression driver frequency device. Vocal and musical clarity
is optimized by the mathematically conceived, advanced design of
the Atlas Sound TRX Control WaveGuide high frequency director.
This design provides smooth, even sound coverage (65˚H x 65˚V).
The high frequency section is symmetrical, for equal coverage in both
vertical and horizontal cabinet mounting positions. High frequency
component protection is provided by the Atlas Sound PolyGuard
protection circuit. The SM82T includes an internally mounted 60 watt
70.7V/100V line matching transformer with screwdriver adjustable tap
selection for use in distributed sound applications.
To withstand the harshest environments, the new Strategy Series
SM82T surface mount loudspeakers are constructed of weather
resistant materials: UV-resistant, talc impregnated, polypropylene
injection molded cabinets; HYCONE treated woofer cones; powder
coated aluminum grilles and all brass hardware. The Strategy Series
speaker systems include a versatile, yet simple, C-bracket designed to
provide easy vertical or horizontal installation on just about any surface.
AtlasSound.com
000202
SM82T-B
SM82T-W
2.13
SL1-1194
