Manual size: 145W x 210H mm
Spread size: 290W x 210H mm
OUTSIDE

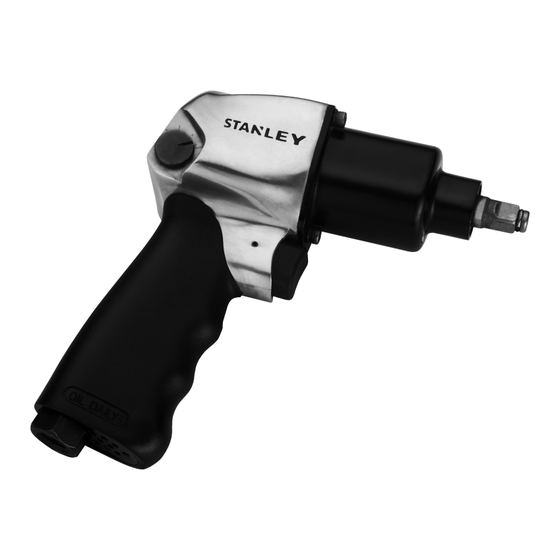

3/8" IMPACT WRENCH
STMT70116-8
G
A
B
Serial Number
Parts Number
A
K46301
B
K46008B
C
46341
D
K46009
E
K56313
F
K46333
G
K46339
H
K46340
I
46331
H
F
I
E
D
C
Description
Q'ty
Housing repair kit
1
Air Inlet repair kit
1
Handle Grip
1
Trigger set repair kit
1
Cylinder repair kit
1
Hammer repair kit
1
Front cover repair kit
1
Cap screw repair kit
3
Washer
1
3/8" IMPACT WRENCH
IT IS ADVISABLE TO:
CAREFULLY READ THE INSTRUCTIONS BEFORE USING THE PNEUMATIC TOOLS
WEAR SAFETY GOGGLES AND HEARING PROTECTION
