Summary of Contents for Tacony Powr-Flite Comfort Pro FREEDOM 6 CPF6 Series

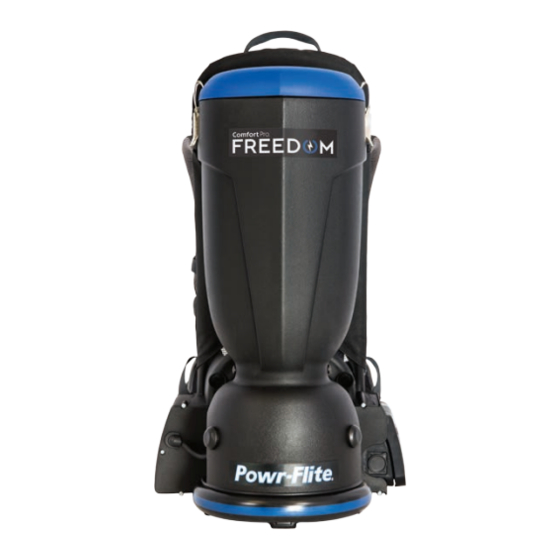

- Page 1 OPERATOR’S MANUAL & PARTS LIST Comfort Pro FREEDOM Backpack Vacuum CPF6 Series WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved CPF-MAN 5/2016 Save These Instructions...
- Page 2 NOTES Model Number: __________________________________________________________________ Serial Number: ___________________________________________________________________ Date of Purchase: ________________________________________________________________ Retain this manual as a permanent record of your purchase.
-
Page 3: Protect The Environment
ntroductIon Check the carton for shipping damage. Carefully unpack and Introduction ...........3 inspect your new Powr-Flite vacuum for shipping damage. Each unit is tested and thoroughly inspected prior to shipping. Safety Instructions ........4 If damage is discovered, immediately notify the transportation company that delivered your machine and request an Storage ............4 inspection. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Save These Instructions afety arnIngS and recautIonS Read all instructions before using. Save these instructions. WARNING! Following the cleaning instructions will prolong the life of your Powr-Flite vacuum. When using an electrical appliance, basic precautions should always be followed. Use only as instructed in this manual. - Page 5 2. Disconnect the battery pack from the machine before making any adjustments, changing accessories or storing machine. 3. DO NOT expose battery packs to temperatures above 122°F (50°C). Never leave battery packs in automobiles on hot days, where temperatures can be much higher than the outside temperature. 4.
-
Page 6: C Harger G Rounding I Nstructions
harger roundIng nStructIonS THE COMFORT PRO FREEDOM BATTERY CHARGER MUST BE GROUNDED. If the charger should malfunc- tion or stop working, grounding provides a path of least resistance for electrical current, thereby reducing the risk of electrical shock. This unit is equipped with a cord that has an equipment-grounding conductor and grounding plug. The plug must be inserted in an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 7: Perating Instructions
PeratIng InStructIonS IMPORTANT! PERFORM PROPER INSTALLATION OF HEPA BAGS AND CORD IN COMFORT PRO BACKPACK VACUUMS. Please read the following instructions carefully. They will help to get the best performance from this professional commer- cial vacuum cleaner and to maintain it in optimum condition. Always make sure the main power of the vacuum is off and the unit is not plugged in when doing any maintenance on the vacuum. - Page 8 Always unplug machine before cleaning, or making any WARNING! adjustments or repairs. The backpack vacuum has four levels of filtration: the paper vacuum bag, a micro cloth filter, a pre-motor filter and an exhaust filter. These bags and filters capture fine dust particles and protect the motor from dirt. It is important to replace the paper bag when it is no more than ½ full and to clean the filters on a regular schedule and replace as necessary. Paper Vacuum Bag 1. Remove paper bag. Insert a new paper bag into the cloth bag, making sure the cardboard disk is centered on the flexible sealing ring. When you replace the lid, the short nozzle in the center of the lid will be closed over the central hole of the cardboard disk of the paper vacuum bag providing a seal.
- Page 9 Wearing the Backpack Vacuum The backpack is designed to balance the weight of the vacuum on the hips, not the shoulders. 1. Adjust the VariQuick height adjuster to your back length. 2. Loosen all of the straps and place the vacuum on your back. Stabilizer Straps Shoulder Straps VariQuick Height Adjuster...
-
Page 10: Troubleshooting
roubleShootIng TROUBLESHOOTING 1. If the vacuum will not operate, check the following: a. The battery pack connection to the vacuum. b. The battery pack is charged. c. That the switch is in the “on” position and functioning properly. 2. If the battery pack is not charging, check that the charger is plugged into 120 Volt outlet and that the battery is properly connected to the charger. -
Page 11: Specifications
PecIfIcatIonS Specifications and parts are subject to change without notice. Please refer to www.Powr-Flite.com for the latest schematic drawing and parts list. PRODUCT SPECIFICATIONS MODEL COMFORT PRO FREEDOM 6 COMFORT PRO FREEDOM 6 PREMIUM ITEM# CPF6S CPF6P TOOL KIT* Standard Hands-Free BODY High Density Polyethylene... - Page 12 Standard Tool Kit J1006 4′ Rigid Hose Fits: CPF6S W/90° Bend & Cuff CT171 2 Bend Wand CT176 17″ Crevice Tool W/Clip CT184 3″ Dusting Tool W/Clip B352-PF10 Install the floor tool to the end of the Carpet Tool wand. Align the brass ring with the W/Clip groove on the floor tool to ensure a CT188 secure fit.
- Page 13 oolS chematIcS and artS STANDARD TOOL KIT - FITS CPF6S PREMIUM TOOL KIT - FITS CPF6P ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. CARPET TOOL W/CLIP B352-PF10 CARPET TOOL W/CLIP B352-PF10 HARD FLOOR TOOL W/CLIP C352-PF20 HARD FLOOR TOOL W/CLIP C352-PF20 DOUBLE BEND WAND CT171...
- Page 14 chematIc X9666 X9679 X9739 X9683 X9668 X9691 X9698 X9752 01575 A352-3300 X9753 X1195 X1207 02568 X9697 X9758 X1152 X1263 X8248 X1197 X9664 X9754 X9713 X9733 X9734 X1004 X9688 X1206 X9681 X1259 X9687 X1395 X9079 X1200 X1208 X1198 X1205 X9671 X9669 X9690 X9717 X9667...
- Page 15 artS PART NO. DESCRIPTION PART NO. DESCRIPTION 02568 HARNESS MOUNTING WASHER X9676 8-18 3/4 LONG HI LO SCREW 7CM004 WASHER 3/8 USS FLAT 18-8 SS X9679 6 QUART CLOTH BAG A352-3300 LID LATCH X9681 RUBBER MOTOR MOUNT A352-9401 FEMALE RIVOT FOR BELT PANEL X9682 EXHAUST FILTER A352-9402...
- Page 16 IMPORTANT WARRANTY CONDITIONS: A purchase receipt or other proof of date of original consumer purchase also will be required before warranty service is rendered. A Tacony Company 3101 Wichita Court • Ft. Worth, TX 76140-1755 1-800-880-2913 • Fax: 1-817-551-0719 • www.Powr-Flite.com...
