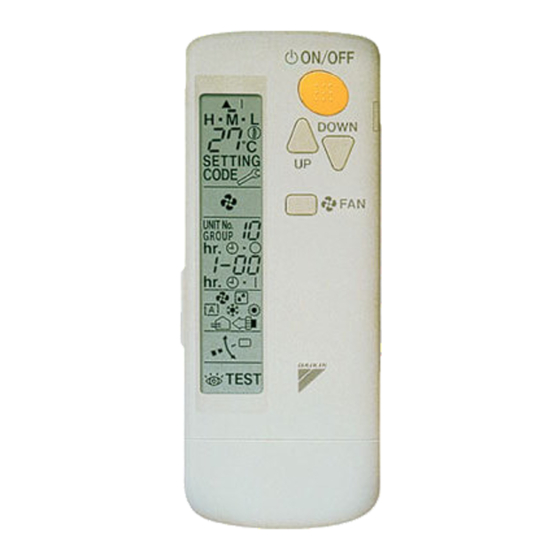

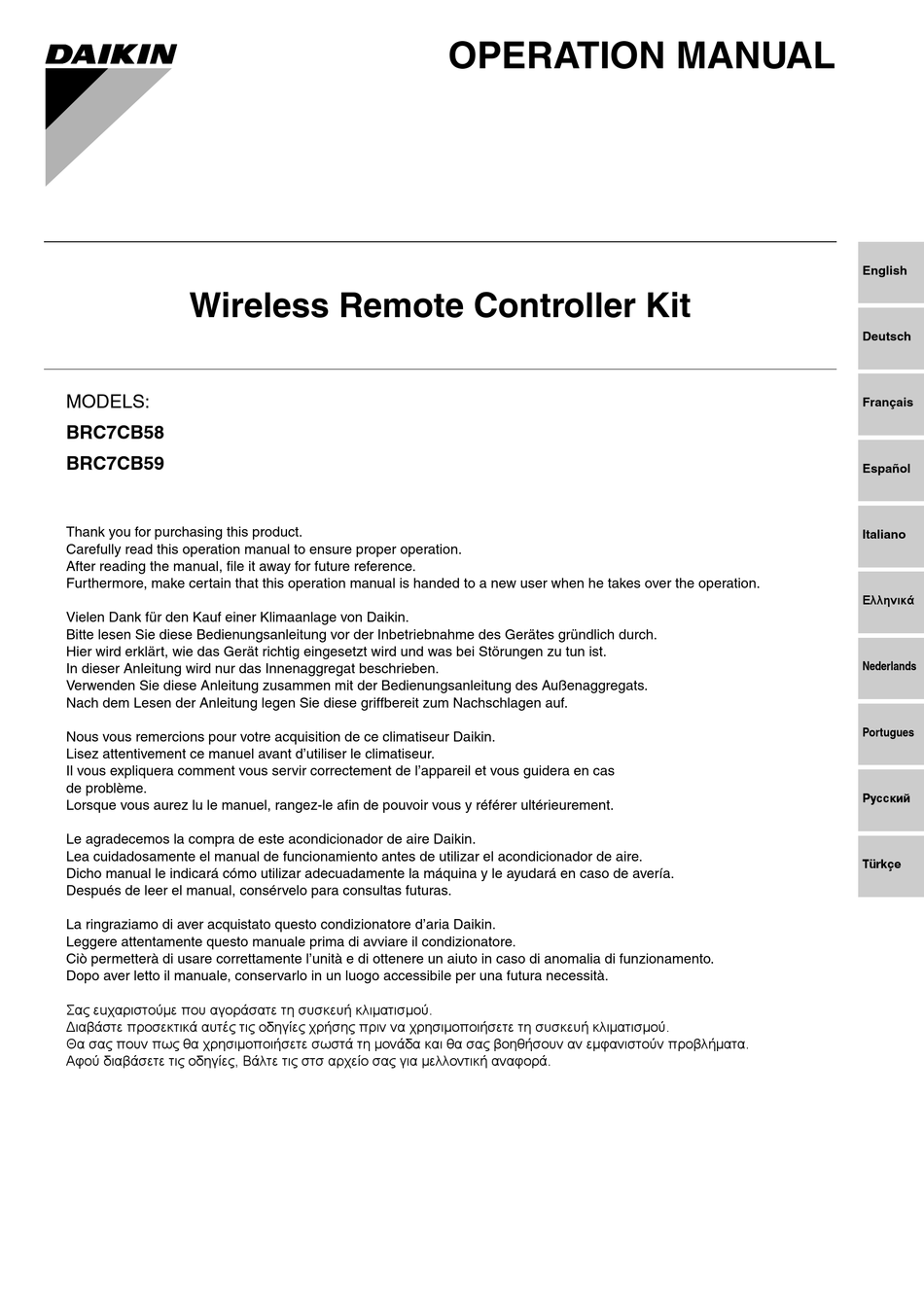

Wireless Remote Controller Kit
MODELS:
BRC7CB58
BRC7CB59
Thank you for purchasing this product.
Carefully read this operation manual to ensure proper operation.
After reading the manual, file it away for future reference.
Furthermore, make certain that this operation manual is handed to a new user when he takes over the operation.
Vielen Dank für den Kauf einer Klimaanlage von Daikin.
Bitte lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme des Gerätes gründlich durch.
Hier wird erklärt, wie das Gerät richtig eingesetzt wird und was bei Störungen zu tun ist.
In dieser Anleitung wird nur das Innenaggregat beschrieben.
Verwenden Sie diese Anleitung zusammen mit der Bedienungsanleitung des Außenaggregats.
Nach dem Lesen der Anleitung legen Sie diese griffbereit zum Nachschlagen auf.
Nous vous remercions pour votre acquisition de ce climatiseur Daikin.
Lisez attentivement ce manuel avant d'utiliser le climatiseur.
Il vous expliquera comment vous servir correctement de l'appareil et vous guidera en cas
de problème.
Lorsque vous aurez lu le manuel, rangez-le afin de pouvoir vous y référer ultérieurement.
Le agradecemos la compra de este acondicionador de aire Daikin.
Lea cuidadosamente el manual de funcionamiento antes de utilizar el acondicionador de aire.
Dicho manual le indicará cómo utilizar adecuadamente la máquina y le ayudará en caso de avería.
Después de leer el manual, consérvelo para consultas futuras.
La ringraziamo di aver acquistato questo condizionatore d'aria Daikin.
Leggere attentamente questo manuale prima di avviare il condizionatore.
Ciò permetterà di usare correttamente l'unità e di ottenere un aiuto in caso di anomalia di funzionamento.
Dopo aver letto il manuale, conservarlo in un luogo accessibile per una futura necessità.
Σαò εuχαριστοýìε που αγορÜσατε τη συσκευÞ κλιìατισìοý.
ÄιαβÜστε προσεκτικÜ αυτÝò τιò οδηγßεò χρÞσηò πριν να χρησιìοποιÞσετε τη συσκευÞ κλιìατισìοý.
Θα σαò πουν πωò θα χρησιìοποιÞσετε σωστÜ τη ìονÜδα και θα σαò βοηθÞσουν αν εìφανιστοýν προβλÞìατα.
Αφοý διαβÜσετε τιò οδηγßεò, ΒÜλτε τιò στσ αρχεßο σαò για ìελλοντικÞ αναφορÜ.
OPERATION MANUAL
English
Deutsch
Français
Español
Italiano
ΕλληνικÜ
Nederlands
Portugues
Рóссêий
Türkçe
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Daikin BRC7CB58
Summary of Contents for Daikin BRC7CB58
- Page 1 Nach dem Lesen der Anleitung legen Sie diese griffbereit zum Nachschlagen auf. Portugues Nous vous remercions pour votre acquisition de ce climatiseur Daikin. Lisez attentivement ce manuel avant d’utiliser le climatiseur. Il vous expliquera comment vous servir correctement de l’appareil et vous guidera en cas de problème.
- Page 2 Wij danken u voor de aankoop van deze Daikin airconditioner. Lees deze bedrijfshandleiding aandachtig door voordat u de airconditioner gebruikt. Het omvat uitleg over het correcte gebruik van de unit en biedt hulp in geval een storing mocht optreden. Gebruik deze handleding voor verdere raadpleging.
- Page 3 Fig. 1-1 ON OFF Fig. 1-2 DOWN ON OFF TEMP TIME DOWN RESERVE CANCEL TIMER TEST MODE SWING TEST TEST Fig. 2-1 Fig. 2-2...
-
Page 4: Prior To Use
PRIOR TO USE This operation manual is exclusively for instructions on how to use the wireless remote controller. Read also the operation manual attached to the indoor unit and to the outdoor unit for safe usage of the system and maintenance. - Page 5 ΠροϋποθÝσειò απüρριψηò Disposal requirements Το συγκεκριìÝνο προϊüν καθþò οι ìπαταρßεò που παρÝχονται ìε το χειριστÞριο επισηìαßνονται Your product and the batteries supplied with the controller are marked with this symbol. This ìε αυτü το σýìβολο. Αυτü σηìαßνει üτι τα ηλεκτρικÜ και ηλεκτρονικÜ προϊüντα, καθþò και οι symbol means that electrical and electronic products and batteries shall not be mixed with ìπαταρßεò...
-
Page 6: Table Of Contents
CONTENTS WARNING ILLUSTRATIONS..........[1] Be aware that prolonged, direct exposure to PRIOR TO USE........... [2] cool or warm air from the air conditioner, or to air that is too cool or too warm can be 1. SAFETY PRECAUTIONS....... 1 harmful to your physical condition and 2. - Page 7 Consult your local dealer regarding reloca- Consult your local dealer regarding cleaning tion and reinstallation of the air conditioner. the inside of the air conditioner. Improper installation work may result in leakage, Improper cleaning may cause breakage of plas- electric shocks or a fire. tic parts, water leakage and other damage as well as electric shocks.
- Page 8 Be sure that children, plants or animals are Do not leave the remote controller wherever not exposed directly to airflow from the there is a risk of wetting. indoor unit, as adverse effects may ensue. If water gets into the remote controller there is a risk of electrical leakage and damage to elec- Do not wash the air conditioner with water, as this may result in electric shocks or a fire.
-
Page 9: What To Do Before Operation
TEMPERATURE SETTING BUTTON 2. WHAT TO DO BEFORE OPERA- Use this button for SETTING TEMPERA- TION TURE. (Operates with the front cover of the remote controller closed.) Refer to the operation manual attached to the indoor SIGNAL TRANSMITTER unit. This sends the signals to the indoor unit. TEMPERATURE ADJUSTMENT/ 3. -
Page 10: Handling For Wireless Remote Controller
Never press the button of the remote controller NOTES with a hard, pointed object. • For the sake of explanation, all indications are The remote controller may be damaged. shown on the display in Fig. 1 contrary to actual running situations. Installation site •... -
Page 11: Operation Range
[CAUTIONS] Refer to Fig. 1-1, 2 on page [1] • Replace all batteries at the same time, do not OPERATION MODE MODE use new and old batteries intermixed. SELECTOR • In case the remote controller is not used for a long time take out all batteries in order to pre- Press OPERATION MODE SELECTOR BUT- vent liquid leak of the battery. - Page 12 DEFROST OPERATION (Frost removal oper- NOTE ation for the outdoor unit) • Do not turn OFF power immediately after the unit • As the frost on the coil of an outdoor unit increase, stops. Then, wait no less than 5 minutes. heating effect decreases and the system goes Water is leaking or there is something else wrong into the DEFROST OPERATION.
- Page 13 ■ CHARACTERISTICS OF THE PROGRAM [°C] DRY OPERATION ■ ■ • This operation lowers the humidity without lower- Setting ing the indoor temperature. The indoor tempera- temperature ture when the operation button is pressed will be • The setting is impossible for FAN operation. the set temperature.
- Page 14 MOVEMENT OF THE HORIZONTAL BLADE For the following conditions, micro computer con- PROGRAMMING TIMER trols the airflow direction so it may be different from DOWN the display. Press the PROGRAMMING TIMER BUT- • COOLING • HEATING TON and set the time for stopping or start- •...
- Page 15 For example. PRECAUTIONS FOR GROUP CONTROL When the timer is pro- SYSTEM OR TWO REMOTE CONTROLLER grammed to stop the sys- ON OFF CONTROL SYSTEM tem after 3 hours and start TEMP This system provides two other control systems TIME the air conditioner after 4 beside individual control (one remote controller con- hours, the air conditioner...
-
Page 16: Operation Characteristics
8. OPERATION CHARACTERIS- 12. HOW TO DIAGNOSE TROUBLE TICS SPOTS I. EMERGENCY STOP Refer to the operation manual attached to the indoor unit. When the air conditioner stops in emergency, the OPERATING INDICATOR LAMP on the indoor unit starts blinking. Take the following steps yourself to read the 9. - Page 17 Operate the indoor unit with the remote con- troller of the same number. MODE Signal transmitted from a remote controller of a different number cannot be accepted. (If the Press OPERATION MODE SELECTOR BUT- number is not mentioned, it is considered as TON.
- Page 18 3P302565-3B EM12A025 (1210) HT...
