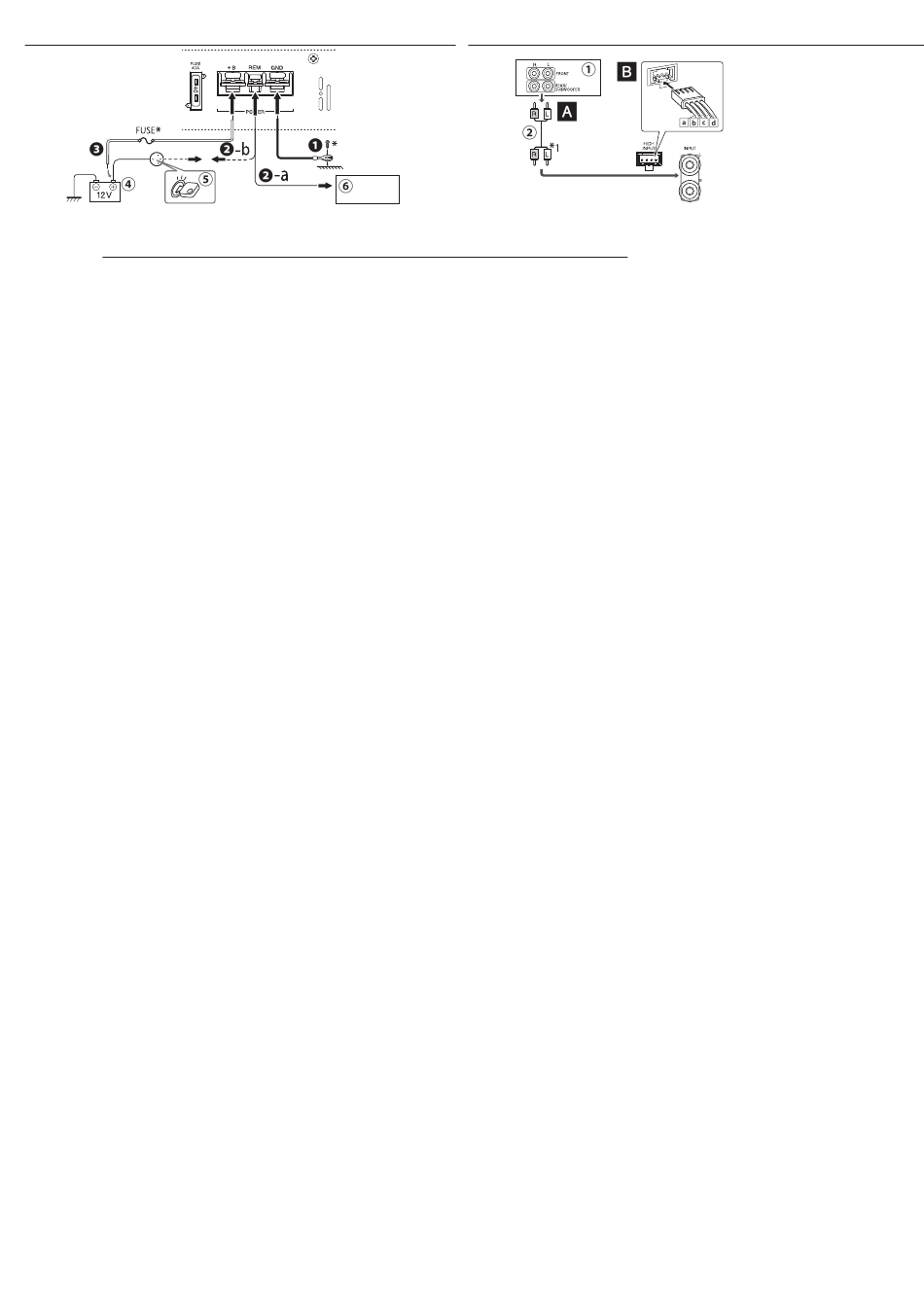

POWER SUPPLY CONNECTION

POWER SUPPLY CONNECTION
The proper lead wire connected to each POWER terminal is as
follows.
• + B and GND: AWG 8 to AWG 4
(The cross section is about 8 mm
• REM: AWG 18 to AWG 8
(The cross section is about 0.8 mm
❶ Connect to metallic body or chassis.
❷-a When you use JVC car receiver with REMOTE OUTPUT, connect
to REMOTE OUTPUT.
❷-b When you use a unit without REMOTE OUTPUT, connect to the
accessory circuit of the car which is activated by the ignition
switch. In this case, noise may occur when the car receiver is
turned on or off. To avoid this noise, do not turn on or off the
car receiver itself. You can turn on or off the car receiver along
with the on/off operation of the ignition switch.
❸ After all connections have been made, connect to the battery
12 V.
– Be sure to place the fuse near the battery as shown.
④ Car battery
⑤ Ignition switch
⑥ JVC car receiver, etc.
* Not supplied

AUDIO INPUT CONNECTION

A When your receiver is equipped with line output.
① JVC car receiver, etc.
② Line out
*1 Not supplied
B When your receiver is NOT equipped with line output.
a Gray "FRONT RIGHT (+)"
b Gray (Stripe) "FRONT RIGHT (–)"
c White (Stripe) "FRONT LEFT (–)"
d White "FRONT LEFT (+)"
• The power is turned on and off as the unit detects input signal
("Auto Turn-On"). Therefore it is not necessary to connect the REM
wire. (❷-a, ❷-b)
AUDIO INPUT CONNECTION
English
to 21 mm
.)
2
2
to 8 mm
.)
2
2
