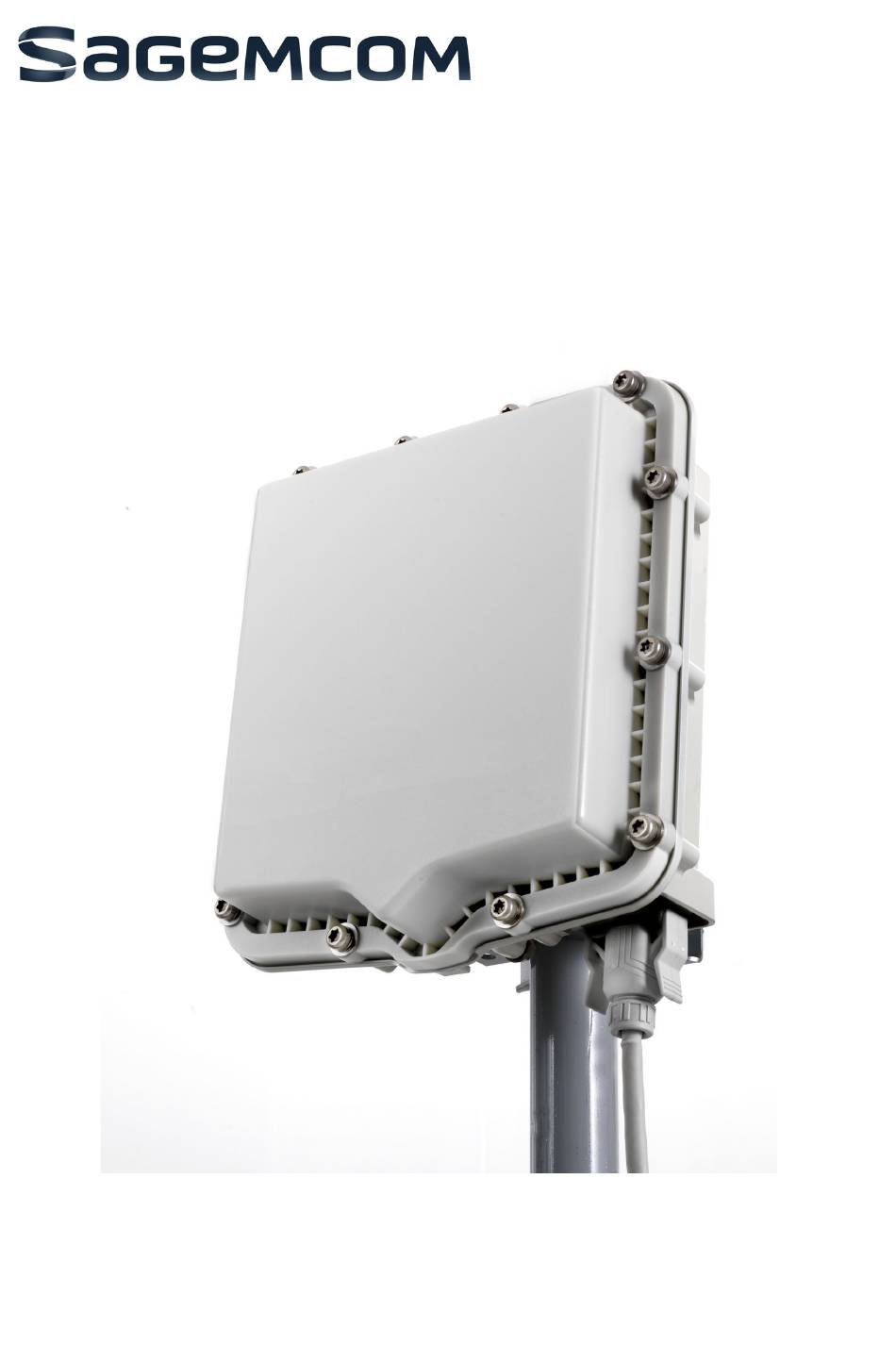

SE680 WiMAX
User Guide
This device works in a frequency band for which a general licence might have to be
obtained. Please contact your service provider or your National Authority for Frequency
Management about licensing before putting this device into service.

Advertisement

Table of Contents
loading

Related Manuals for Cisco SE680 WiMAX

Summary of Contents for Cisco SE680 WiMAX

  • Page 1 SE680 WiMAX User Guide This device works in a frequency band for which a general licence might have to be obtained. Please contact your service provider or your National Authority for Frequency Management about licensing before putting this device into service.

  • Page 3: Table Of Contents

    Wall mounting (optional) ..........11 Connecting the SE680 WiMAX modem ....... . . 12 Connecting the outdoor modem .
  • Page 4 Before contacting customer service or your provider ....42 Checking the connection to the SE680 WiMAX ......43 Configuring the Web browser .

  • Page 5: For Your Safety

     Safety precautions General safety instructions Only pass on the SE680 WiMAX modem to third parties with this user guide and the  assembly instructions. The SE680 WiMAX modem must only be installed and put into use by a qualified ...

  • Page 6: Information On Specific Absorption Rate (Sar)

    Notes on the user guide This user guide describes how to set up and configure the SE680 WiMAX modem. Installation of the individual components is dealt with in the assembly instructions, which you received together with the SE680 WiMAX modem.

  • Page 7: The Se680 Wimax

    WiMAX modem already meets the latest IEEE 802.16e-2005 standard, a mobile WiMAX standard that offers many extra possibilities. The SE680 WiMAX modem With your SE680 WiMAX modem, you can make use of everything the Internet has to offer: Downloads ...

  • Page 8: Product Features

    DHCP server and routing functions  High performance and Quality of Service  Scope of delivery 1 SE680 WiMAX modem, comprising:  – 1 Outdoor modem (to be installed by an electrician) – 1 Indoor unit 1 power lead (two-pin) ...

  • Page 9: Connectors And Leds

     door modem is faulty. The LED shows that power is being supplied. Green: The SE680 WiMAX modem is powered correctly.  Ethernet connector for data exchange with a PC or network (RJ45, 10/100 Base T), see "Connecting a PC or switch" on page 12.

  • Page 10: Installing The Se680 Wimax Modem

     Indoor unit  The SE680 WiMAX modem must be assembled and put into service by a qualified electrician. The information in the enclosed assembly instructions must be noted. This user guide assumes that the work required for outside installation has already been carried out.

  • Page 11: Choosing The Location

    System requirements Choosing the location Choose the location so that you can easily establish the following connections:  – Ethernet cable socket, which, for example, establishes the connection to the out- door modem through a wall duct. – Ethernet cable socket for connection with a PC or network. –...

  • Page 12: Connecting The Se680 Wimax Modem

    Wall mounting (optional) Connecting the SE680 WiMAX modem Set up the connections on the indoor unit in the following order: 1. Connect the outdoor modem. 2. Connect the PC or the switch/hub. 3. Connect the indoor unit to the mains power supply and switch all the devices on.
  • Page 13 Wall mounting (optional) Connecting the indoor unit to a PC Connect an Ethernet cable plug to the IN socket on the indoor unit.  Connect the other plug of the Ethernet cable to the LAN interface on the PC.  Connecting the indoor unit to a switch Connect an Ethernet cable plug to the IN socket on the indoor unit.

  • Page 14: Switching On The Devices

    Check the LEDs during startup:  LEDs during startup: – The ON power supply LED lights up green, and the SE680 WiMAX modem starts a self-test. – The FAULT LED (red) and the CONNECT LED (green) light up for approximately 1 second and then go out.

  • Page 15: Configuration With The Web Browser

    Press Enter (Return).  If a system password has been set up on your SE680 WiMAX, the login screen will now open. Enter the system password supplied by your provider in the text box and click Ok.The start page (Home) of the user interface opens, in which you can change the language if necessary ( page 18).

  • Page 16: User Interface Elements

    Check the connections; see "Connecting the SE680 WiMAX modem" on page 12.  If you use a firewall on the PC, it must allow connection to the SE680 WiMAX. If  applicable, switch off the firewall for a test; if you can then open the login screen, configure the firewall accordingly.
  • Page 17 Menu area: Click the menu items to display the respective pages of the currently open con- figuration area or a submenu. Working area: Check the settings on your SE680 WiMAX modem and change them as neces- sary. Buttons Open online Help.

  • Page 18: Setting The Language

     window. Menu structure The menu of the user interface on your SE680 WiMAX modem is split into the following main areas: Home, Basic Setup Wizard, Advanced Settings and Status. Under these menu options, you will find the following areas:...

  • Page 19: The Home Page

    The Home page The Home page Once you have logged in successfully to the SE680 WiMAX modem, you will see the Home page for the device software. The start screen offers an overview of all areas of the configuration program:...

  • Page 20: Basic Setup Wizard

    Internet provider. Enter the access data and click Next.  Your SE680 WiMAX can be used as an Internet router or bridge. For more on this see "Setting the operating mode" on page 24.

  • Page 21: Adjusting The Antenna

    If you have entered your access data correctly, adjust the SE680 WiMAX modem.  Turn your SE680 WiMAX modem by approx. 20°. Turn or move the device a little at  a time and note the signal strength display. Use this to move the antenna to the...

  • Page 22: Precisely Aligning The Antenna

    The closer together the sequence of beeps, the better the con- nection quality. Turn or move the SE680 WiMAX modem a little at a time and note the signal quality  display. Use this to move the antenna to the position with the best signal quality.

  • Page 23: Advanced Settings

    Wizard. The following table contains the options available in this menu. Menu Description Operating Mode Here you can define whether your SE680 WiMAX will be used as a router or a bridge for the Internet access (page 24). Internet Here you can configure your Internet access. This menu covers all setting options for the Internet (page 25).

  • Page 24: Setting The Operating Mode

    PC directly to the indoor unit LAN port. You must also tempo- rarily assign it a static IP address in the address range of the SE680 WiMAX. If you want to use the Internet again after this, reset your PC to “automatic IP address”.

  • Page 25: Configuring Internet Access

    Advanced Settings Configuring Internet access If you have configured the SE680 WiMAX using the Basic Setup Wizard, you have also configured your Internet access. You can check or change these settings in the Inter- net menu. This menu also offers you a wide range of possibilities for setting up security settings and limiting access to the Internet as well as for providing your own services on the Internet.

  • Page 26: Setting Up Dns Servers

    Preferred DNS server and the Alternate DNS server. Enabling or disabling the firewall Your SE680 WiMAX comes with an integrated firewall, which protects your device and network against unauthorised access from the Internet. If the firewall is enabled, your device can identify certain events, e.g. suspicious incoming data packets from the Inter- net, as attacks and avert them (hacker defence).

  • Page 27: Port Forwarding

    PC on which the game is running. If you configure Port For- warding, the SE680 WiMAX outwardly assumes the role of the server. It receives requests from remote users under its public IP address and automatically redirects them to local PCs.

  • Page 28: Opening The Firewall For A Selected Pc (Exposed Host)

    The IP addresses of the PCs you want to set up as exposed hosts must remain unchanged. If the IP addresses of the PCs are assigned via the DHCP server of the SE680 WiMAX, you must select the option Never expires as the Lease time when configuring the DHCP server or assign static IP addresses to the PCs, see "Configuring the DHCP server"...

  • Page 29: Lan Configuration

    LAN configuration With the help of the LAN configuration you can change the preset values for the com- puter name and the private IP address for your SE680 WiMAX and configure the inte- grated DHCP server. Open the Advanced Settings tab and select Local Network.

  • Page 30: Wimax Configuration

    The network components get their IP addresses from a DHCP server in the public net- work. Ageing time for When a PC in the network is accessed, your SE680 WiMAX writes the MAC table MAC address and port number in a MAC table to speed up further accesses.

  • Page 31: Administration

    System password The system password is the password for configuring your SE680 WiMAX and is requested when you open the configuration pages, see "Launching the user interface" on page 15.

  • Page 32: Restoring Factory Settings

    SE680 WiMAX modem. Restoring factory settings You can reset the SE680 WiMAX to the factory settings. You should do this before mak- ing the device available to others or exchanging it through the dealer. Otherwise unau- thorised users may use the Internet access data at your expense.

  • Page 33: Restart

    Updating the firmware Restart If the SE680 WiMAX is not operating properly, you can reboot it. It should then be ready for use again. Open the Advanced Settings tab and on the Administration menu select  Restart. Click Ok to reboot the device.

  • Page 34: Status

    Status Status You can check the status of your SE680 WiMAX with the pages in the Status menu. The menu is divided into several individual pages opened by clicking the entries in the menu area. To help with orientation, in the following sections the path is placed first so that you can quickly find the status messages described.

  • Page 35: Internet

    Internet Internet Status > Internet The connection settings for your SE680 WiMAX are displayed in the Internet sub- menu. Connection status The status of the radio connection with the WiMAX network is displayed as follows: connected = The SE680 WiMAX has established a ...

  • Page 36: Local Network Lan

     Device status Status > Device Status The device status of your SE680 WiMAX is displayed in the Device Status submenu. System uptime Operating time of your SE680 WiMAX since it was last restarted. The operating time is given in the format ddd:hh:mm:ss (d=days, h=hours, m=minutes, s=seconds).

  • Page 37: Radio Status

    Information about the radio connection to the WiMAX network is displayed in the Radio Status submenu. Connected to a base station Indicates whether or not your SE680 WiMAX is connected to a base station. Base station ID ID number of the base station to which the device is connected.
  • Page 38 Device status Current uplink modulation scheme Currently used uplink modulation type. Current downlink modulation scheme Currently used downlink modulation type. If necessary, click the Refresh button to refresh the data in the status display. ...

  • Page 39: Using The Se680 Wimax

    Using the SE680 WiMAX Using the SE680 WiMAX When you have finished configuring your SE680 WiMAX modem, use it to surf the Internet, send e-mails etc. As soon as you attempt to access the Internet with a PC connected to the SE680...

  • Page 40: Appendix

    Check if the indoor unit is connected correctly.  Check if the power socket is live.  The CONNECT LED does The SE680 WiMAX modem is not registered to a base not light up. station. Check the cable connections. If necessary, charge ...
  • Page 41 2. Enter a ping command to your own computer us- ing ping 127.0.0.1, see "Checking the connec- tion to the SE680 WiMAX" on page 43. If an error is reported, reinstall the TCP/IP network protocol. 3. Enter a ping command to the SE680 WiMAX mo- dem using ping 192.168.2.1 (if you did not...

  • Page 42: Other Faults And Problems

    Troubleshooting Other faults and problems You are using a firewall on the PC that prevents access to the SE680 WiMAX modem Test this, if necessary, by briefly switching off the firewall. If access is possible, config- ure the firewall. For details, refer to the user guide for your firewall.

  • Page 43: Checking The Connection To The Se680 Wimax

    Troubleshooting Checking the connection to the SE680 WiMAX You can check whether the PC is correctly connected to the SE680 WiMAX modem. This can be done as follows: Open the command prompt on the PC:  – Click on Start > Run.

  • Page 44: Configuring The Web Browser

    SE680 WiMAX modem; for this reason, your SE680 WiMAX modem can only be configured if the HTTP proxy is not being used for local pages.

  • Page 45: Allowing Pop-Up Windows

    Open Internet Explorer.  Click on Tools and then on Pop-up Blocker and choose Pop-up Blocker Set-  tings. Enter the IP address of your SE680 WiMAX modem as the Website address:  192.168.2.1 Click on the Add button. ...

  • Page 46: Specifications

    Troubleshooting Specifications Model SE680 WiMAX Dimensions Outdoor Modem: approx. 228.5 x 208 x 101 mm Indoor unit: approx. 140 x 65 x 36 mm Operating temperature Outdoor Modem: –40 °C to +60 °C Indoor unit: 0 °C to +40 °C...

  • Page 47: Ce Declaration

    WEEE CE declaration This device is intended for use with WiMAX base stations. We, Sagemcom Broadband SAS, declare that this device meets the essential require- ments and other relevant regulations laid down in Directive 1999/5/EC. National laws and regulations must be considered before putting the device into service. A copy of the 1999/5/EC declaration of conformity is available at this Internet address: http://support.sagemcom.com WEEE...

  • Page 48: Open Source Software Used In The Product

    WEEE Open Source Software used in the product The SE680 WiMAX contains, among other things, Open Source Software, licensed under an Open Source Software License and developed by third parties. These Open Source Software files are protected by copyright. Your rights to use the Open Source Software beyond the mere execution of the Sagemcom Broadband SAS program, is governed by the relevant Open Source Software license conditions.

  • Page 49: Open Source Software Used

    WEEE Open Source Software used Open Source Software Compo- License nent wpa_supplicant BSD-license djbbns public domain zlib Zlib license boost lib Boost Software License expat expat license openSSL OpenSSL License, SSLeay License sybyx proprietary AES and combined encryption / proprietary authentication modes Acknowledgements WPA Supplicant:...

  • Page 50: Open Source Software Licenses

    WEEE Open Source Software Licenses WPA-Supplicant License: BSD WPA Supplicant ============== Copyright (c) 2003-2007, Jouni Malinen <j@w1.fi> and contributors All Rights Reserved. Redistribution and use in source and binary forms, with or without modification, are per- mitted provided that the following conditions are met: 1.
  • Page 51 WEEE OpenSSL License Copyright (c) 1998-2005 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are per- mitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 52 WEEE This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this dis- tribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).
  • Page 53 WEEE Permission is granted to anyone to use this software for any purpose, including com- mercial applications, and to alter it and redistribute it freely, subject to the following restrictions: 1. The origin of this software must not be misrepresented ; you must not claim that you wrote the original software.
  • Page 54 WEEE expat Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons...
  • Page 55 WEEE CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCURE- MENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PRO- FITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLU- DING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

  • Page 56: Glossary

    IP address be assigned to different network components in succession as and when required. DHCP server There is a DHCP integrated into the SE680 WiMAX modem that automatically assigns IP addresses to PCs in the local network.
  • Page 57 IP address. Downlink Files that your SE680 WiMAX modem receives and forwards to your local network. Digital Subscriber Line. DSL is a technique whereby data is transmitted via the conven- tional phone line. To do this, you require suitable phone lines and special technology to be set up by a Provider.
  • Page 58 Glossary File Transfer Protocol. Protocol for exchanging files via the Internet. FTP is used, for example, to make files available for download or to receive files from other users. Full duplex Data transmission operating mode in which data can be sent and received at the same time.
  • Page 59 Glossary IEEE 802.16 Standard defined by the IEEE for WiMAX. Similarly to other standards in the 802 series (e.g. 802.3 Ethernet, 802.11 WLAN), the WiMAX standard is one of the standards for networks. The standard has progressed in accordance with new developments; there are currently two main versions: IEEE 802.16-2004: WiMAX, which specifies the secure location for connection part- ...
  • Page 60 Glossary Internet Service Provider. See Provider. Local Area Network, local network. A local network links network components so that they can exchange data and share resources. The physical range is restricted to a par- ticular area (a site). A local network can be connected to other local networks or a wide- area network (WAN) such as the Internet.
  • Page 61 Some applications (e.g. Internet services such as HTTP or FTP) work with fixed port numbers; others are allocated a free port number whenever they need one. Port forwarding In port forwarding, the SE680 WiMAX directs data packets from the Internet that are addressed to a particular Port to the corresponding port of the appropriate network component.
  • Page 62 Glossary SMTP Simple Mail Transfer Protocol. The SMTP protocol is a TCP/IP protocol and regulates the exchange of electronic post on the Internet. Your Provider provides you with access to an SMTP server. Subnet A subnet divides a network into smaller units. Subnet mask The subnet mask determines how many parts of the IP addresses of a network repre- sent the network number and how many parts represent the network component...
  • Page 63 Uplink Data that your SE680 WiMAX modem forwards from your PC or local network to exter- nal sites (e.g. to the Internet). Universal Resource Locator. Globally unique address of a domain on the Internet, e.g.

  • Page 64: Index

    Index Index ..... Connectors ... . . Address Translation ....Administration .
  • Page 65 Index ...........
  • Page 66 Index ......Port forwarding System requirements ....setting up .
  • Page 67 Issued by Sagemcom Broadband SAS Sagemcom Broadband SAS 250, route de l'Empereur - 92500 RUEIL MALMAISON © Sagemcom Broadband SAS 2011 All rights reserved. Subject to availability. Rights of modification reserved. www.sagemcom.com 05.2011...
