- Page 1 QTM-1500/1700/1850/1900/2150 10-point PCT Multi-touch Flat Panel Monitor User’s Guide QTM-1500/1700/1850/1900/2150 User’s Manual...
- Page 2 © 2016 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Content Content Content............................3 Figures ............................4 Tables ............................5 Safety Instructions........................6 Before You Begin ....................6 When Working Inside a Computer ...............6 Preventing Electrostatic Discharge ..............7 Preface ............................9 How to Use This Guide ..................9 Unpacking ........................9 Regulatory Compliance Statements ..............9 ... -
Page 4: Figures
Figure 2 Control Panel Keypad ................17 Figure 3 Mechanical Dimensions of QTM-1500 ..........18 Figure 4 Mechanical Dimensions of QTM-1700 ..........19 Figure 5 Mechanical Dimensions of QTM-1850 ..........20 Figure 6 Mechanical Dimensions of QTM-1900 ..........21 Figure 7 Mechanical Dimensions of QTM-2150 ..........22 Figure 8 HDMI / D VI-D / VGA................23... -
Page 5: Tables
Tables Tables Table 1 QTM-1500/1700/1850/1900/2150 product specifications ....15 Table 2 OSD Control Button ................31 Table 3 “Picture” Menu ..................33 Table 4 “Image Setting” Menu ................33 Table 5 “Color” Menu ....................33 Table 6 “Signal Source” Menu ................34 Table 7 “Audio” Menu....................34 Table 8 “OSD Menu”... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. WARNING High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. -
Page 7: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. - Page 8 Safety Instructions When transporting a sensitive component, first place it in an antistatic container or packaging. Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and workbench pads. Handle components and boards with care. Don’t touch the components or contacts on a board.
-
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 11: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 12 Preface properties as electrical resistance and thermal conductivity. Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage to the system. Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range.
- Page 13 Preface Uninterruptible Power Supply Uninterruptible power supply (UPS) systems offer the most complete protection against variations on power because they use battery power to keep the server running when AC power is lost. The battery is charged by the AC power while it is available, so when AC power is lost, the battery can provide power to the system for a limited amount of time, depending on the UPS system.
-
Page 14: Chapter 1 Introduction

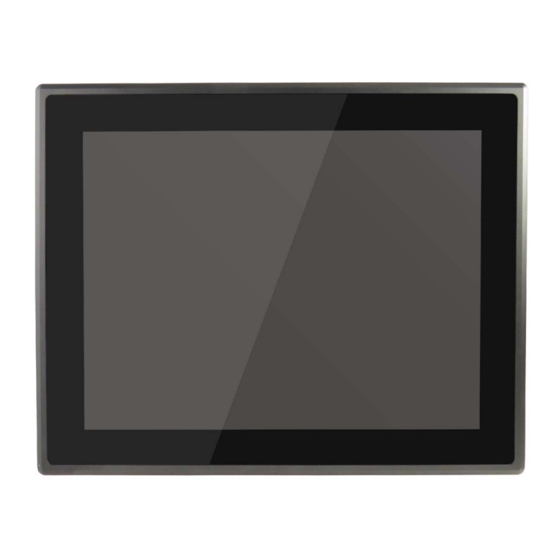

Chapter 1 Chapter 1 Introduction Overview The QTM-1500/1700/1850/1900/2150 is a 15" / 17" / 18.5" / 19" / 21.5" multi-touch flat panel monitor. It features 10-point PCT multi-touch panel and enables fast / intuitive operation. 18.5" and 21.5" models are widescreen and enables multiple windows or convenient panoramic viewing experience. -
Page 15: Product Specifications
Chapter 1 Product Specifications LCD Display QTM-1500 QTM-1700 QTM-1850 QTM-1900 QTM-2150 Display Size 15" 17" 18.5" 19" 21.5" Aspect Ratio 16:9 16:9 Backlight Resolution 1024 x 768 1280 x 1024 1366 x 768 1280 x 1024 1920 x 1080... -
Page 16: System Tour
Chapter 1 System Tour Refer to the diagrams below to identify the components of the system. I/Os Figure 1 I/Os This USB (Universal Serial Bus) port for touch functionality only DC Jack The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. -
Page 17: Figure 2 Control Panel Keypad
Chapter 1 Control Panel Keypad Figure 2 Control Panel Keypad Power Button To turn the monitor on and off Power LED To indicate the power status of the LCD panel Menu / Enter Button To turn on the OSD menu or to confirm the selection Up Button To move to the next item, to display the next setting function, or to increase the setting value... -
Page 18: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 381.7 x 305.6 x 69.3 mm (W x H x D) Figure 3 Mechanical Dimensions of QTM-1500 QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 19: Figure 4 Mechanical Dimensions Of Qtm-1700
Chapter 1 413.0 x 343.9 x 73.3 mm (W x H x D) Figure 4 Mechanical Dimensions of QTM-1700 QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 20: Figure 5 Mechanical Dimensions Of Qtm-1850
Chapter 1 483.0 x 304.0 x 50.0 mm (W x H x D) Figure 5 Mechanical Dimensions of QTM-1850 QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 21: Figure 6 Mechanical Dimensions Of Qtm-1900
Chapter 1 447.3 x 372.1 x 68.4 mm (W x H x D) Figure 6 Mechanical Dimensions of QTM-1900 QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 22: Figure 7 Mechanical Dimensions Of Qtm-2150
Chapter 1 542.6 x 339.2 x 52.8 mm (W x H x D) Figure 7 Mechanical Dimensions of QTM-2150 QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 23: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your monitor Connecting the PC Connect the HDMI / DVI- D / VGA cable from your PC to the HDMI / DV I-D / VGA port. HDMI DVI-D Figure 8 HDMI / DVI-D / VGA QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 24: Figure 9 Connect Touch Panel
Chapter 2 Connecting touch panel Connect the USB cable of touch panel to the USB port Figure 9 Connect touch panel Turning on the monitor 1. Connect the power adapter cable to the DC jack (DC In) of QTM-1500/1700/1850/1900/2150 2. -
Page 25: Vesa Mounting
The product comes with VESA FDMI 75/100 standard mounting holes as shown below. Use 4 screws with the appropriate length for your mounting bracket. Figure 11 QTM-1500/1700/1900 VESA Mounting Hole Locations Figure 12 QTM-1850/2150 VESA Mounting Hole Locations NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. -
Page 26: Panel Mounting
Chapter 2 Panel Mounting The Panel PC can be panel mounted and comes with brackets and screws f or this purpose. The required cutout f or panel mounting and maximum panel thickness is shown below. Figure 13 Panel Mount Cut-out hole and maximum panel thickness (QTM-1500) Figure 14 Panel Mount Cut-out hole and maximum panel thickness (QTM-1700) QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 27: Figure 15 Panel Mount Cut-Out Hole And Maximum Panel Thickness
Chapter 2 Figure 15 Panel Mount Cut-out hole and maximum panel thickness (QTM-1850) Figure 16 Panel Mount Cut-out hole and maximum panel thickness (QTM-1900) QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 28: Figure 17 Panel Mount Cut-Out Hole And Maximum Panel Thickness
Chapter 2 Figure 17 Panel Mount Cut-out hole and maximum panel thickness (QTM-2150) QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 29: Figure 18 Panel Mounting (Qtm-1500/1850)
Chapter 2 Below are the demonstrations of how to do panel mounting. Step 1 Step 2 Step 3 Remove 6 Bracket Insert a Panel Mount Secure Chassis to Panel Opening Covers from Bracket into each by tightening the screws Bracket Openings with Bracket Opening Phillips Screwdriver (2 on top edge, 2 on each side) -
Page 30: Figure 20 Panel Mounting (Qtm-2150)
Chapter 2 Step 1 Step 2 Step 3 Remove 9 Bracket Insert a Panel Mount Secure Chassis to Panel Opening Covers from Bracket into each by tightening the screws Bracket Openings with Bracket Opening Phillips Screwdriver (3 on top edge, 2 on bottom edge and each side) Figure 20 Panel Mounting (QTM-2150) QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 31: Chapter 3 Osd Functions
Chapter 3 Chapter 3 OSD Functions Control Buttons Button Name Image Functions 1. To turn on the OSD menu <Menu / Enter> 2. To confirm the selection 1. To move to the next functional icon 2. To move to the next setting item <Up>... -
Page 32: Setting Instruction
Chapter 3 Setting Instruction Main Menu Cursor Sub-menu Figure 21 OSD Main Menu and Sub-menu There are in total 8 functional icons in the main menu. One of the 8 icons will be displayed in colors to indicate the relationship with the setting items or information in the sub-menu below (as shown in the left figure above). -
Page 33: Function Instruction
Chapter 3 Function Instruction Table 3 “Picture” Menu Picture Back Light Options: 0 ~ 100 Brightness Options: 0 ~ 100 Contrast Options: 0 ~ 100 Sharpness Options: 0 ~ 4 Table 4 “Image Setting” Menu Image Setting ... -
Page 34: Table 6 "Signal Source" Menu
Chapter 3 Table 6 “Signal Source” Menu Signal Source Options: Auto Search, VGA 1, VGA 2, HDMI, D VI Table 7 “Audio” Menu Audio Volume Options: 0 ~ 100 Mute Options: Off, On Table 8 “OSD Menu” Menu OSD Menu ... -
Page 35: Table 9 "Information" Menu
Chapter 3 Table 9 “Information” Menu Information Options: N/A QTM-1500/1700/1850/1900/2150 User’s Manual... -
Page 36: Chapter 4 Driver Installation
Chapter 4 Chapter 4 Driver Installation You can download the Touch-Screen drivers for the QTM-1500/1700/1850/1900/2150 from our website and install as instructed there. QTM-1500/1700/1850/1900/2150 User’s Manual...
