Summary of Contents for Leica Geosystems DISTO D110

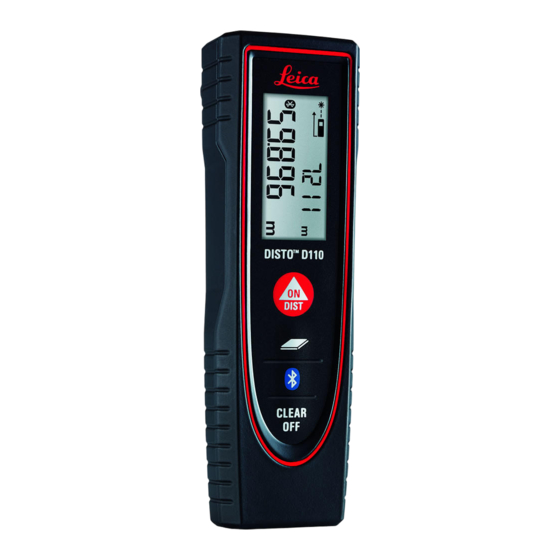

- Page 1 Leica DISTO D110 Leica DISTO D110 The original laser distance meter The original laser distance meter...
-
Page 2: Table Of Contents
Table of Contents Instrument Set-up Limits of use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Areas of responsibility - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2... -
Page 3: Instrument Set-Up
Instrument Set-up Introduction Overview The safety instructions and the user manual should be read through carefully before the product is used for the first time. The person responsible for the product must ensure that all users understand these directions and adhere to them. Display The symbols used have the following meanings: WARNING... -
Page 4: Display
Instrument Set-up Display Insert batteries To ensure a reliable Info use, do not use zinc- carbon batteries. Change batteries when battery sym- bol is flashing. Battery Area ® Bluetooth Units Main line Attach / Remove clip click! Leica DISTO D110 812794c... -
Page 5: Operations
Operations Switching ON/OFF Clear Message Codes If the message "InFo" appears with a Press ON button number, observe the instructions in 2 sec to start "Message Codes" section. continuous laser Example: mode. 2 sec Device is turned Undo last action. Leave actual func- OFF. -
Page 6: Measuring Functions
Measuring Functions Measuring single distance Target surfaces: Measuring errors can occur when measuring to colourless liquids, glass, styrofoam or permaeble surfaces or when aiming at high gloss surfaces. Against dark surfaces the 8.532 measuring time increases. Aim active laser at target. Permanent measuring The last value measured is displayed. -
Page 7: Bluetooth ® Smart
Measuring Functions Bluetooth Smart ® 2 sec Value from main- ® Deactivate/Activate Bluetooth I8.462 line is transferred ™ App Mode: Use this mode to transfer the data using an App. We provide no warranty for free DISTO software and offer no support for it. -
Page 8: Technical Data
Technical Data * applies for 100 % target reflectivity (white painted wall), General Functions low ambient light, 25 ºC Typical Measuring Tolerance* ± 1.5 mm / ± 0.06 in *** Distance measuring ** applies for 10 to 500 % target reflectivity, high ambient Maximum Measuring ±... -
Page 9: Message Codes
Message Codes Care Warranty • Clean the device with a damp, soft cloth. If the message Error does not disappear Lifetime Manufacturer's Warranty after switching on the device repeatedly, • Never immerse the device in water. Warranty coverage for the entire usage time contact the dealer. -
Page 10: Safety Instructions
• Deliberate dazzling of third parties; also in Changes or modifications not expressly material, financial and environmental the dark approved by Leica Geosystems for compli- damage. • Inadequate safeguards at the surveying site ance could void the user’s authority to Important paragraphs which must be (e.g. -
Page 11: Areas Of Responsibility
• This device may not cause harmful interfer- FCC statement (applicable in Leica Geosystems AG ence, and U.S.) Heinrich-Wild-Strasse • this device must accept any interference This equipment has been tested and found to... -
Page 12: Use Of The Product With Bluetooth
Safety Instructions • ce dispositif doit accepter toutes les inter- Laser classification Description Value férences, y compris les interférences pouvant induire des opérations non Wavelength 620 - 690 nm souhaitées. Maximum radiant output Use of the product with power for classification <... - Page 13 Quality Management and Quality Systems (ISO standard 9001) and Environ- mental Management Systems (ISO standard 14001). Total Quality Management - Our commitment to total customer satisfaction. Ask your local Leica Geosystems agent for more information about our TQM program. Copyright Leica Geosystems AG, Heerbrugg,...
