- Page 1 Leica DISTO The original laser distance meter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Overview Technical data Instrument Set-up Operations Message Codes Care Warranty Safety instructions Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

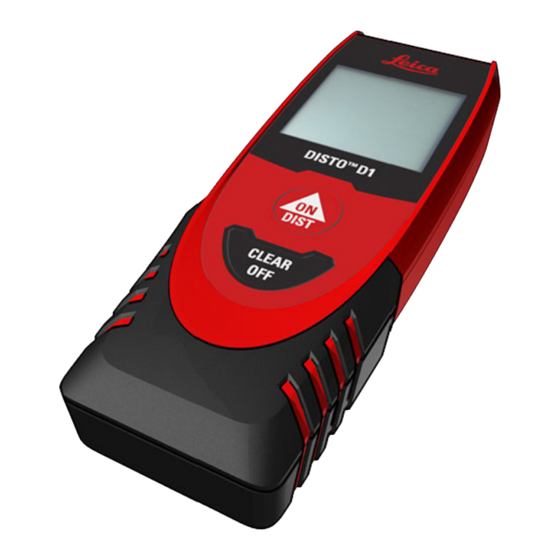

- Page 3 Overview Ov e r v i e w The Leica DISTO™ is a laser distance meter oper- ating with a class 2 laser. See chapter Technical data for scope of use. 1 Display 2 ON/ Measure 3 Clear/ OFF Leica DISTO™ D1 GlobalTestSupply www.
-
Page 4: Technical Data
Technical data T e c h n i c a l d a t a General Accuracy with favourable conditions * 2 mm / 0.08 in *** Accuracy with unfavourable conditions ** 3 mm / 1/8" *** Range with favourable conditions * 0.2 - 40 m / 0.6 - 120 ft *** Range with unfavourable conditions ** 0.2 - 30 m / 0.6 - 100 ft ***... - Page 5 Technical data Functions Distance measuring Permanent measuring Beep Illuminated display Bluetooth® Smart Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 6: Instrument Setup
Instrument Set-up I n s t r u me n t S e t - u p Introduction The safety instructions (see Safety Important paragraphs which WARNING Instructions) and the user manual must be adhered to in practice should be read through carefully Indicates a potentially hazardous situ- as they enable the product to be before the product is used for the first... -
Page 7: Insert Batteries
Instrument Set-up Insert batteries To ensure a reliable use, we recom- mend using high quality Alkaline bat- teries. Change batteries when battery symbol is flashing. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 8 Instrument Set-up Switching ON/OFF Device is turned OFF. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 9 Instrument Set-up Clear Undo last action. Leave actual function, go to default operation mode. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 10 Instrument Set-up Message Codes If the message "i" appears with a number, observe the instruc- tions in Message Codes section. Example: Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 11 Instrument Set-up Settings Press both keys simultaneousley. Switch between the following units: 0.000 m 0'00" 1/16 0.0000 m 0.000 in 0.00 ft 0 in 1/16 Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 12: Measuring Single Distance
Operations Op e r a t i o n s Measuring single distance surfaces the measuring time increases. Aim active laser at target. Target surfaces: Measuring errors can occur when meas- uring to colourless liquids, glass, styrofoam or permeable sur- faces or when aiming at high gloss surfaces. -
Page 13: Permanent Measuring
Operations Permanent measuring The last value measured is displayed Stops permanent measuring. in the main line. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 14: Bluetooth® Smart
Operations Bluetooth® Smart DISTO™ sketch. Use App for devices. All other Bluetooth® upgrades. A wide range of com- Bluetooth® data transfer. devices do not support the mercial software can be found energy saving Bluetooth® on our homepage. Apps for Bluetooth® Smart is always act- Smart Module, which is integ- Android®... -
Page 15: Message Codes
Message Codes Me s s a g e Co d e s Cause Correction Calculation error Perform measurement again. Hardware error Contact your dealer Data transfer error Connect device and repeat procedure Temperature too high Let device cool down. Temperature too low Warm device up. - Page 16 Care Ca r e Clean the device with a damp, soft cloth. Never immerse the device in water. Never use aggressive cleaning agents or solvents. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 17: Warranty
Warranty Wa r r a n t y Warranty under PROTECT by Leica Geosystems Lifetime Manufacturer´s Warranty Warranty coverage for the entire usage time of the product under PROTECT according to Leica Geosystems International Limited Warranty and PROTECT General Terms & Conditions set out charge repair or replacement of all products or any parts under PROTECT that suffer defects as a result of faults in materials or workmanship. - Page 18 Safety instructions Sa f e t y i n s t r u c t i o n s The person responsible for the instrument must ensure that all users understand these directions and adhere to them. Leica DISTO™ D1 GlobalTestSupply www.
-
Page 19: Symbols Used
Safety instructions Symbols used Important paragraphs which must be adhered to in practice as they enable the The symbols used have the following meanings: product to be used in a technically correct and efficient manner. WARNING Indicates a potentially hazardous situation or an unintended use which, if not avoided, will result in death or serious injury. -
Page 20: Permitted Use
Safety instructions Permitted use Measuring distances Data transfer with Bluetooth® Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 21: Prohibited Use
Safety instructions Prohibited use Using the product without instruction Using outside the stated limits Deactivation of safety systems and removal of explanatory and hazard labels Opening of the equipment by using tools (screwdrivers, etc.) Use of accessories from other man- ufacturers without express approval Carrying out modification or conversion of the product... -
Page 22: Hazards In Use
Safety instructions Hazards in use WARNING Watch out for erroneous measurements if the instrument is defective or if it has been dropped or has been misused or modified. Carry out periodic test measurements. Particularly after the instru- ment has been subject to abnormal use, and before, during and after important meas- urements. -
Page 23: Limits Of Use
Safety instructions Limits of use Refer to section Technical data. The device is designed for use in areas permanently hab- itable by humans. Do not use the product in explosion hazardous areas or in aggressive environments. Leica DISTO™ D1 GlobalTestSupply www. -
Page 24: Areas Of Responsibility
Safety instructions Areas of responsibility Responsibilities of the manufacturer of the ori- ginal equipment: The company above is responsible for supplying the product, including the User Manual in a com- pletely safe condition. The company above is not responsible for third party accessories. - Page 25 Safety instructions Disposal CAUTION Flat batteries must not be disposed of with house- hold waste. Care for the environment and take them to the collection points provided in accord- ance with national or local regulations. The product must not be disposed with household waste.
-
Page 26: Electromagnetic Compatibility
Safety instructions Electromagnetic Compatibility (EMC) WARNING The device conforms to the most stringent require- ments of the relevant standards and regulations. However, the possibility of causing interference in other devices cannot be totally excluded. Japanese Radio Law Compliance This device is granted pursuant to the Japanese Radio Law 電... -
Page 27: Fcc Statement (Applicable In U.s.)
Safety instructions this device must accept any interference FCC statement (applicable in U.S.) received, including interference that may cause undesired operation. This equipment has been tested and found to com- ply with the limits for a Class B digital instrument, FCC Radiation Exposure Statement pursuant to part 15 of the FCC rules. - Page 28 Safety instructions ISED Statement (applicable in Canada) This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two conditions: This device may not cause harmful inter- ference, and this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 29: Use Of The Product With Bluetooth
Safety instructions Use of the product with Bluetooth® WARNING Electromagnetic radiation can cause disturbances in other equipment, in installations (e.g. medical ones such as pacemakers or hearing aids) and in aircraft. It can also affect humans and animals. Precautions: Although this product conforms to the most strin- gent standards and regulations, the possibility of harm to people and animals cannot be totally excluded. -
Page 30: Laser Classification
Safety instructions Laser classification Pulse duration > 400 ps The device produces visible laser beams, which Pulse repetition frequency are emitted from the instrument: It is a Class 2 320 MHz laser product in accordance with: Beam divergence IEC60825-1 : 2014 „Radiation safety of 0.16 x 0.6 mrad laser products“... - Page 31 Safety instructions Labelling Subject to change (drawings, descriptions and technical data) without prior notice. Leica DISTO™ D1 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
