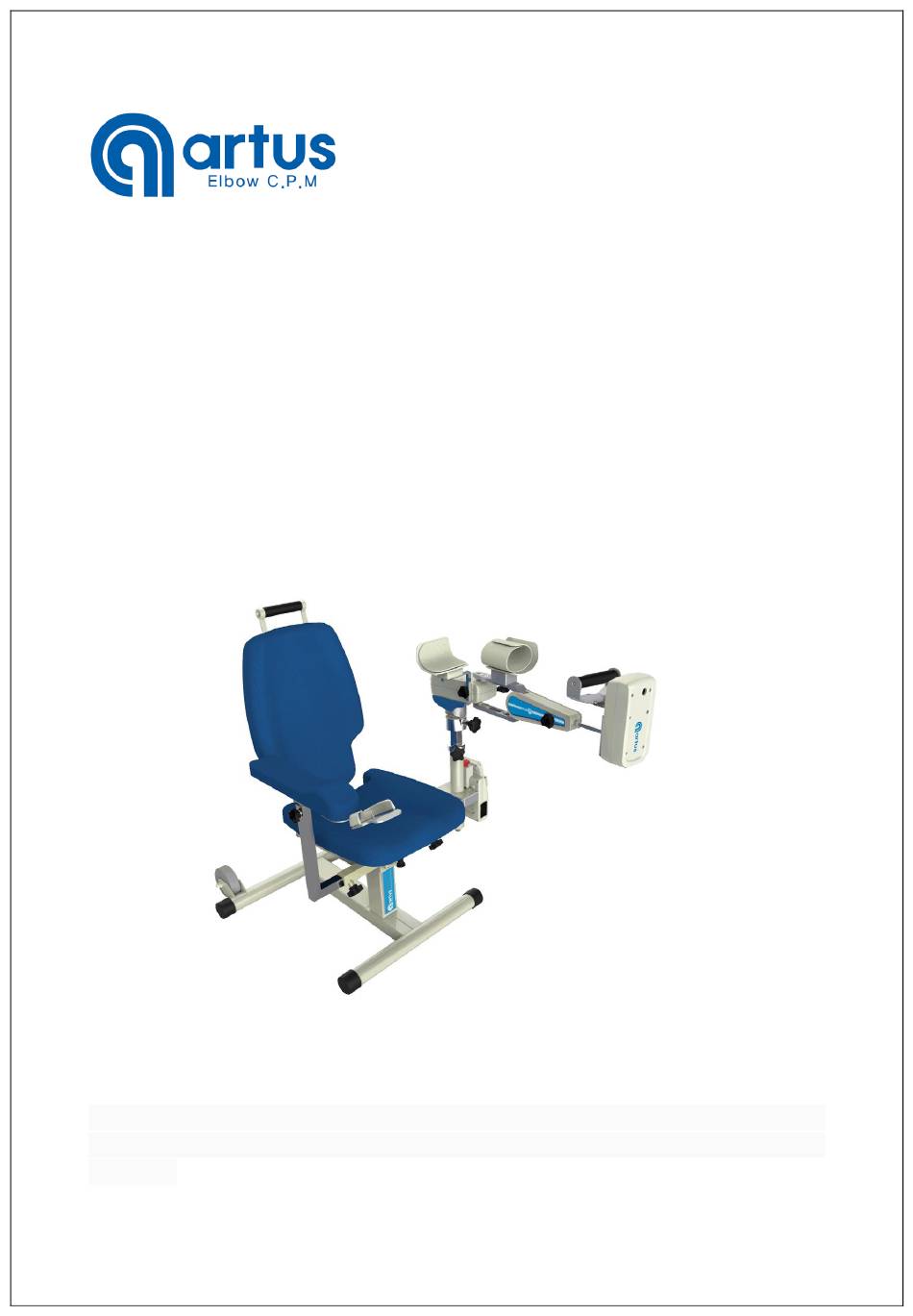

User's Manual
ARTUS-501E
Safety precautions are intended to protect the user's safety and prevent
property damage. Please read the instructions before use and use them
correctly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTUS-501E and is the answer not in the manual?

Questions and answers

Related Manuals for Artus ARTUS-501E

Summary of Contents for Artus ARTUS-501E

  • Page 1 User’s Manual ARTUS-501E Safety precautions are intended to protect the user's safety and prevent property damage. Please read the instructions before use and use them correctly.

  • Page 2: Table Of Contents

    6.2 Treatment and Maintenance 6.3 Troubleshooting Chapter 7. Warranty Thank you for purchasing the Elbow & Elbow CPM(ARTUS-501E). Please refer to the manual in the box to view the components contained within the box when opening the box. Be sure to familiarize yourself with this manual before connecting and powering down the parts, and keep the manuals handy for future use.

  • Page 3: Chapter 1. Warning And Caution

    Chapter 1. Warning and Caution Safety precautions are intended to be used safely and correctly to prevent accidents or risks, so please ensure that you read and protect them carefully. Cautions are divided into ‘warning ’ and ‘ caution ’, each meaning : Warning : If there is a possibility of death or serious injury to the person in violation of the instructions...

  • Page 4: Caution

    1.2 Caution  Please do not disconnect the power or communication cables during operating. This could cause injury.  Elderly people and people with disabilities should use it under supervision of product manager such as doctor or physical therapist. This could cause injury. ...

  • Page 5: Information Of Electro-Magnetic Compatibility (Emc)

    Warning : Do not use ARTUS-501E near high-power wireless equipment such as mobile phone, this could cause malfunction.  Caution : ARTUS-501E is compliant with medical device regulations 93 / 42 / EEC and it is designed to protect it from electromagnetic signals. ...

  • Page 6: Chapter 2. Product

    So it is necessary to exercise properly for the quick recovery of surgical area. ARTUS-501E is the rehabilitation equipment to recover the function of elbow joint quickly through continuous passive movement.

  • Page 7: Purpose Of Artus-501E

     The ARTUS-501E should be used in a properly equipped environment such as a hospital and must be handled by trained professional who have the proper qualifications like physical therapists or medical specialists.

  • Page 8: Product Configuration

    2.8 Product Configuration  Please check the product and accessories before installation. Forearm splint Upper arm splint Motor splint & Arm rest Adjustment Body Power cable 2.9 Label HC label Control box label Base label-1 Base label-2 CST. CO., LTD.

  • Page 9: Component Name

    2.10 Component name  Main device 1. Handle 2. Screw to adjust the height of Elbow 3. Screw to rotate of Motor splint 4. Screw to adjust the angle of Elbow motor 5. Upper arm splint 6. Screw to fix upper arm splint 7.
  • Page 10  Hand Controller 1. Touch Screen 2. Start Button 3. Stop Button  Control box 1. Power Switch 2. Power inlet 3. Connector to motor(any) 4. Connector to motor(any) 5. Connector to Hand Controller CST. CO., LTD.

  • Page 11: Product Specifications

    2.11 Product specifications Division Contents Type of Protection Class I, Type B Rated Power AC 100V~240V, 50/60Hz Power Consumption 30VA Operating Temperature / Humidity +10°C ~ +40°C / 80% or less Storage Temperature +10°C ~ +40°C Atmospheric Pressure 700~1060 hPa Size 706 X 647 X 835 (Width X Length X Height) Weight...

  • Page 12: Explanation Of Terms

    Chapter 3. Explanation of Terms and Symbols 3.1 Explanation of Terms Term Explanation Limit angle of flexion of elbow Upper limit Limit angle of inner rotation of Wrist [When the hand is vertical (the thumb is pointing up) is 0 degrees.] Limit angle of extension of elbow Lower limit Limit angle of outer rotation of Wrist...

  • Page 13: Chapter 4. Installation

    Chapter 4. Installation Refer to 2.8 Product configuration (M8x50) (M5x15) Step 1. Fix the chair back to the Body.(See view-B) Step 2. Fix the Motor splint & Adjustment to the Body.(See view-A) Step 3. Mount the arm rest to the side of Body. Step 4.

  • Page 14: Chapter 5. Operation

    Chapter 5. Operation  Please review warning and caution in Chapter 1.  Please check the connection of the power switch (cord) and the hand controller.  Explanation of symbols in the control unit is covered in Chapter 3. 5.1 How to adjust the device according to the exercise Warning : Tighten the fixing screw (knob) firmly to prevent the device from separation during exercise 5.1.1 How to convert left and right arm location((explain the changing right arm to left arm)
  • Page 15 Step 3. It should be adjust the present angle of elbow motor to 90° and the present angle of wrist to -90° using Hand Controller to prevent injuring. Step 4. Rotate the motor splint 180° using the screw to rotate of motor splint so that the motor splint faces the front.
  • Page 16 5.1.2. How to change the setup of arm location using hand controller <Fig 5.1.1> <Fig 5.1.2> <Fig 5.1.3> Step 1. At the stop mode <Fig 5.1.1>, the display is changed to <Fig 5.1.2> when it touched the symbol [M] (Present exercise arm is right.). Step 2.

  • Page 17: How To Use Hand Controller And Set The Exercise

    How to use Hand Controller and set the exercise 5.2.1 Explanation of full screen <Touch and Display area> 1) Timer/Lower pause/Upper limit 2) Angle/Bypass/Manual 3) Counter/Upper pause/Lower limit 4) Up/Down arrow 5) Exercise setting 6) Speed/Uniform/Acceleration 7) Symbol of Touch Locked 8) Exercise status ...
  • Page 18 5.2.2 Set the Exercise < < Elbow exercise > < Wrist exercise > Simultaneous exercise > 1) The Elbow exercise, Wrist exercise or Simultaneous exercise is selectable by touching the [Exercise setting] area. 2) M1 (Elbow exercise), M2 (Wrist Exercise), or M1 and M2( Simultaneous exercise) simultaneously displayed in the [Angle/Bypass/Manual] display area each time you touch.
  • Page 19 arrow(4) when the number is flickering. ● Touch the [Lower limit] display area(3), and set lower limit angle with [Up/Down] arrow(4) when the number is flickering. ● And then, touch the symbol [M](8) to complete setting of limit angle. 2) Upper pause (time) and lower pause (time) ●...
  • Page 20 ● It is available to select uniform or accelerative exercising speed by touching twice the [Speed] display area(5). ● The current selected mode is flickering and available to change that with [Up/Down] arrow(4). ● And then, touch the symbol [M](8) to complete setting of this. ●...
  • Page 21 5.2.6 Set the function of Progressive and Oscillation ● This function is available at elbow exercise. 1) Progressive increasing of ROM ● Until reached to programmed [Upper(flexion) and Lower(extension) limit] angle of elbow, the function of [Progressive] increase flexion and extension angle progressively by 1°...
  • Page 22 2) Oscillation interval ● When the device reaches the Programmed [Upper(flexion) or Lower(extension) limit] angle, it will oscillate between the programmed [Oscillation] angle. ● If touch twice the [Progressive, Oscillation] display area(6) at the screen od clause 5.2.4, the screen is changed to above. ●...
  • Page 23 5.2.7 Set the function of Bypass and Manual 1) Bypass <Fig 1> <Fig 2> <Fig 3> ● The [Bypass] function is used to adjust exercise range during exercise operating. ● Touch the [Angle] display area(2) at the screen of <Fig 1> while exercise is operating, [Bypass] is displayed like screen <Fig 2>.
  • Page 24 [Manual] is displayed like screen <Fig 5>. ● Pressing and holding the [Up arrow] increase current angle, if it is reached at desired angle, touch [Upper limit] display area(1) to set as [Upper limit] angle. The <Fig 5> shows the setting being changed from 110° to 130°. ●...

  • Page 25: Chapter 6. Maintenance And Troubleshooting

    Chapter 6. Maintenance and Troubleshooting 6.1 Storage conditions ● Please shutdown the main power switch of the product before cleaning. ● Please use a dry cloth while cleaning to protect the inside of the product from liquid. 6.2 Treatment and Maintenance ●...

  • Page 26: Chapter 7. Warranty

    Check the M1(Elbow motor) and M2(Wrist Motor). - This error means that both M1 and M2 are disconnected to device. Error code ‘E4’ displayed - Please check the cable connection between Motors and Device. - If the Motor cables are disconnected to device, please reconnect the cable after power turn off.
  • Page 27 ● This user’s manual cannot be changed or reproduced without prior consent of our company. ● This user's Manual is subject to change without prior notice. Service Information Developer & Manufacturer : CST Co., Ltd. 325, Daeyulnaechu-gil, buki-myun, Cheongwon-gu, Cheongju-si, Chungbuk-do, R.O.
