User's Manual
ARTUS-703S
Safety precautions are intended to protect the user's safety and prevent
property damage. Please read the instructions before use and use them
correctly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 703S and is the answer not in the manual?

Questions and answers

Related Manuals for Artus 703S

Summary of Contents for Artus 703S

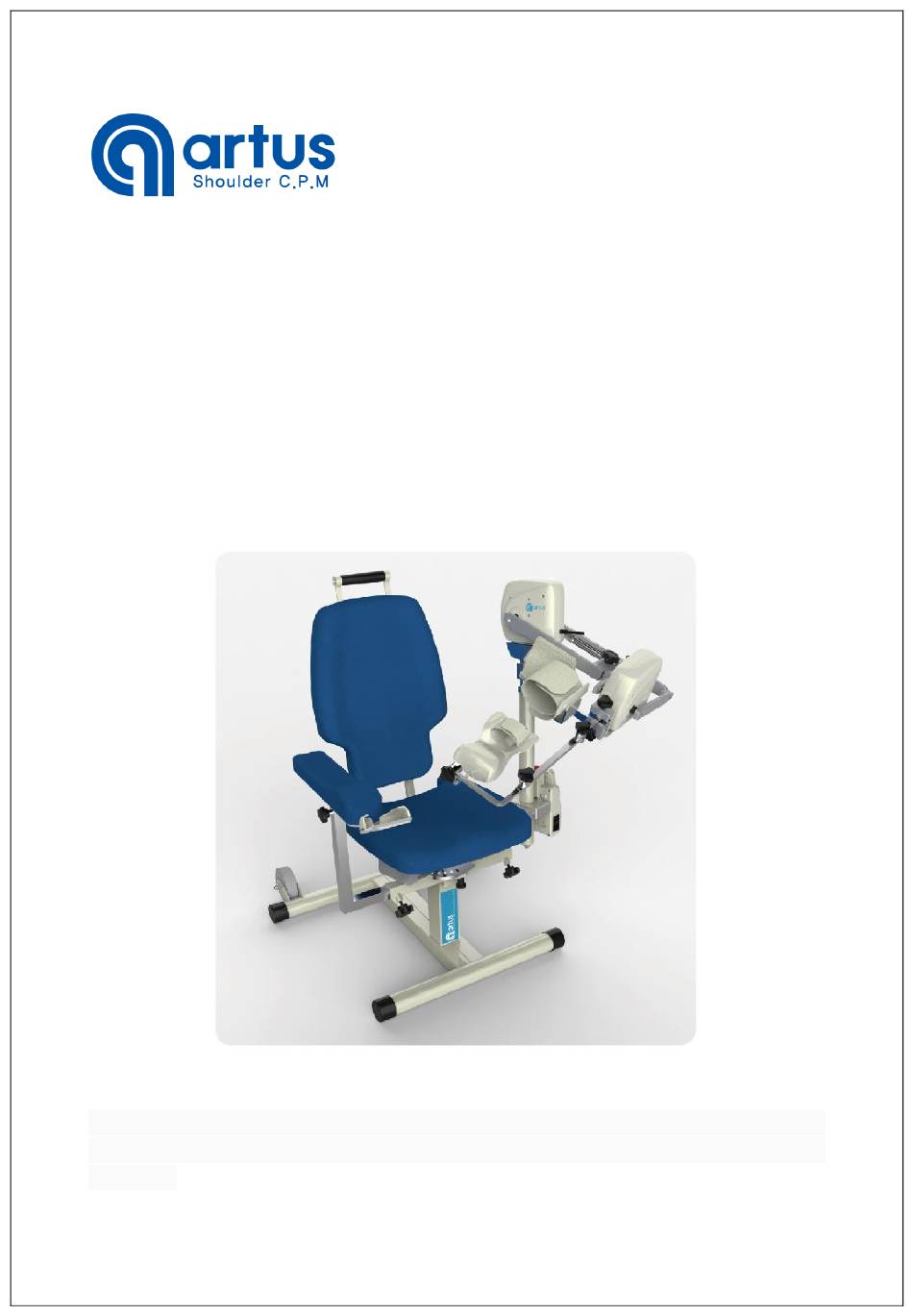

  • Page 1 User’s Manual ARTUS-703S Safety precautions are intended to protect the user's safety and prevent property damage. Please read the instructions before use and use them correctly.

  • Page 2: Table Of Contents

    6.2 Treatment and Maintenance 6.3 Troubleshooting Chapter 7. Warranty Thank you for purchasing the Shoulder & Elbow CPM(ARTUS-703S). Please refer to the manual in the box to view the components contained within the box when opening the box. Be sure to familiarize yourself with this manual before connecting and powering down the parts, and keep the manuals handy for future use.

  • Page 3: Chapter 1. Warning And Caution

    Chapter 1. Warning and Caution Safety precautions are intended to be used safely and correctly to prevent accidents or risks, so please ensure that you read and protect them carefully. Cautions are divided into ‘warning ’ and ‘ caution ’, each meaning : Warning : If there is a possibility of death or serious injury to the person in violation of the instructions...

  • Page 4: Caution

    1.2 Caution  Please do not disconnect the power or communication cables during operating. This could cause injury.  Elderly people and people with disabilities should use it under supervision of product manager such as doctor or physical therapist. This could cause injury. ...

  • Page 5: Information Of Electro-Magnetic Compatibility (Emc)

    Warning : Do not use ARTUS-703S near high-power wireless equipment such as mobile phone, this could cause malfunction.  Caution : ARTUS-703S is compliant with medical device regulations 93 / 42 / EEC and it is designed to protect it from electromagnetic signals. ...

  • Page 6: Chapter 2. Product

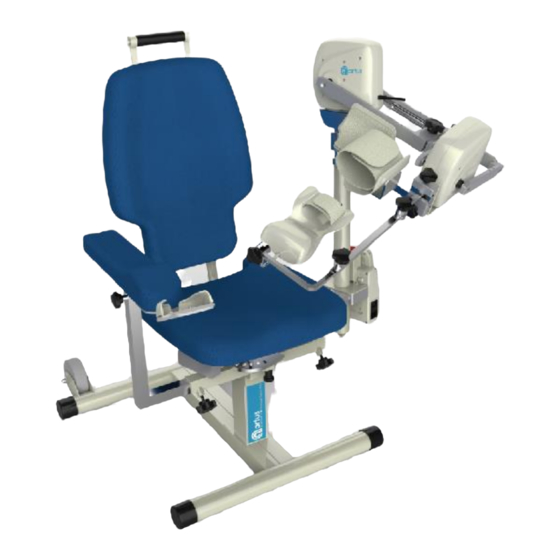

    So it is necessary to exercise properly for the quick recovery of surgical area. ARTUS-703S is the rehabilitation equipment to recover the function of shoulder joint quickly through continuous passive movement.

  • Page 7: Purpose Of Artus-703S

     The ARTUS-703S should be used in a properly equipped environment such as a hospital and must be handled by trained professional who have the proper qualifications like physical therapists or medical specialists.

  • Page 8: Product Configuration

    2.8 Product Configuration  Please check the product and accessories before installation. Elbow motor(M2) Hand Splint 90° elbow splint Arm rest Body Shoulder motor(M1) & Height Adjustment Forearm splint Upper arm splint Power cable Chair Back 2.9 Label HC label Control box label Base label-1...

  • Page 9: Component Name

    2.9 Component name  Main device 1. Handle 2. Chair back 3. Arm rest 4. Holder of Hand Controller 5. Shoulder motor(M1) 6. Upper arm length adjusting screw 7. Upper arm splint 8. Hand holder 9. Fixture of Hand Splint 10.
  • Page 10  Hand Controller 1. Touch Screen 2. Start Button 3. Stop Button  Control box 1. Power Switch 2. Power inlet 3. Connector to M1 or M2 4. Connector to M1 or M2 5. Connector to Hand Controller CST. CO., LTD.

  • Page 11: Product Specifications

    2.11 Product specifications Division Contents Type of Protection Class I, Type B Rated Power AC 110V~240V, 50/60Hz Power Consumption 45VA Operating Temperature / Humidity +10°C ~ +40°C / 80% or less Storage Temperature +10°C ~ +40°C Atmospheric Pressure 700~1060 hPa Size 706 X 647 X 835 (Width X Length X Height) Weight...

  • Page 12: Explanation Of Terms

    Chapter 3. Explanation of Terms and Symbols 3.1 Explanation of Terms Term Explanation Limit angle of flexion and abduction of shoulder Upper limit Limit angle of flexion of elbow Limit angle of inner rotation of Elbow Limit angle of extension and adduction of shoulder Lower limit Limit angle of extension of elbow Limit angle of outer rotation of Elbow...

  • Page 13: Chapter 4. Installation

    Chapter 4. Installation Refer to 2.8 Product configuration 4.1 For Flexion/Extension and Abduction/Adduction of Shoulder (M8x50) (M5x15) Mounting M1 & Hand holder Step 1. Fix the chair back(1) to the Body.(See view-B) Step 2. Fix the M1 & Height adjustment(2) to the Body.(See view-A) Step 3.

  • Page 14: For Flexion And Extension Of Elbow

    4.2 For Flexion and Extension of Elbow (M8x50) (M5x15) Step 1. Fix the chair back(1) to the Body.(See view-B) Step 2. Fix the M1 & Height adjustment(2) to the Body.(See view-A) Step 3. Mount the arm rest(3) to the side of Body. Step 4.

  • Page 15: For Synchronized Abduction/Adduction/Rotation Of Shoulder And Elbow

    4.3 For Synchronized Abduction/Adduction/Rotation of Shoulder and Elbow (M8x50) (M5x15) Step 1. Fix the chair back(1) to the Body. Step 2. Fix the part of M1 & Height adjustment(2) to the Body. Step 3. Mount the arm rest(3) to the side of Body. Step 4.

  • Page 16: Chapter 5. Operation

    Chapter 5. Operation  Please review warning and caution in Chapter 1.  Please check the connection of the power switch (cord) and the hand controller.  Explanation of symbols in the control unit is covered in Chapter 3. 5.1 How to adjust the device according to the exercise Warning : Tighten the fixing screw (knob) firmly to prevent the device from separation during exercise 5.1.1 How to convert left and right arm(ex.
  • Page 17 Step 3. Mount the armrest (1) to the right side of body. Step 4. Loosen the M1 angle adjusting screw and rotate M1 that forearm splint is facing forward. Tighten the screw firmly.(See Fig 5.1.3) <Fig 5.1.3> Step 5. Separate the upper arm splint (1) and hand holder (2). <Fig 5.1.4>...
  • Page 18 5.1.2 How to adjust device for Flexion/Extension and aduction/adduction of Shoulder <Fig 5.1.5> Step 1. A patient is sitting comfortably in the chair and has his back tightly attached to the chair back. Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the patient’s shoulder.
  • Page 19 Abduction / Adduction 5.1.3 How to adjust device for Flexion/Extension of Elbow <Fig 5.1.6> Step 1. A patient is sitting comfortably in the chair and has his back tightly attached to the chair back. Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the patient’s shoulder.
  • Page 20 5.1.4 How to adjust device for Rotation of Elbow and Synchronized Abduction/Adduction/Rotation <Fig 5.1.6> Step 1. A patient is sitting comfortably in the chair and has his back tightly attached to the chair back. Step 2. Pull out the fixture of arm rotator (1) and adjust the location of M1 to the patient’s shoulder.

  • Page 21: How To Use Hand Controller And Set The Exercise

    Caution : Before changing to another exercise, set the angle of M2 to 0 °. How to use Hand Controller and set the exercise 5.2.1 Explanation of full screen <Touch and Display area> 1) Timer/Lower pause/Upper limit 2) Angle/Bypass/Manual 3) Counter/Upper pause/Lower limit 4) Up/Down arrow 5) Exercise setting 6) Speed/Uniform/Acceleration...
  • Page 22 5.2.2 Set the Exercise : Flexion / Extension of Shoulder : Abduction / Adduction of shoulder : Rotation of Elbow : Flexion / Extension of Elbow 1) To set desired exercise, It must be connected a motor to do exercise. - When shoulder motor (M1) is connected, the exercise of Flexion/Extension and Abduction/Adduction of shoulder are available.
  • Page 23 arrow(4) when the number is flickering. ● And then, touch the symbol [M](8) to complete setting of limit angle. 2) Upper pause (time) and lower pause (time) ● It is the exercise pause time at the upper or lower limit angle. ●...
  • Page 24 ● Acceleration(Accel) Mode : The device moves by two steps faster than the programmed speed in the middle 50% of the range of exercise. ● It is available to select uniform or accelerative exercising speed by touching twice the [Speed] display area(5). ●...
  • Page 25 5.2.6 Set the function of Bypass and Manual 1) Bypass <Fig 5.2.1> <Fig 5.2.2> <Fig 5.2.3> ● The [Bypass] function is used to adjust exercise range during exercise operating. ● Touch the [Angle] display area(2) in screen <Fig 5.2.1> while exercise is operating, [Bypass] is displayed like screen <Fig 5.2.2>.
  • Page 26 ● Pressing and holding the [Up arrow] increase current angle, if it is reached at desired angle, touch [Upper limit] display area(1) to set as [Upper limit] angle. The <Fig 5.2.5> shows the setting being changed from 110° to 130°. ●...

  • Page 27: Chapter 6. Maintenance And Troubleshooting

    Chapter 6. Maintenance and Troubleshooting 6.1 Storage conditions ● Please shutdown the main power switch of the product before cleaning. ● Please use a dry cloth while cleaning to protect the inside of the product from liquid. 6.2 Treatment and Maintenance ●...

  • Page 28: Chapter 7. Warranty

    The current angle of M1 is out of programmed range of exercise. - Pressing and holding the [START] button for Error code ‘E4’ displayed more 3 seconds, then the device goes into the programmed range. The error code will disappeared. The current angle of M2 is out of programmed range of exercise.
  • Page 29 ● This user’s manual cannot be changed or reproduced without prior consent of our company. ● This user's Manual is subject to change without prior notice. Service Information Developer & Manufacturer : CST Co., Ltd. 325, Daeyulnaechu-gil, buki-myun, Cheongwon-gu, Cheongju-si, Chungbuk-do, R.O.
  • Page 30 Sep. 2017 printed CST. CO., LTD.
