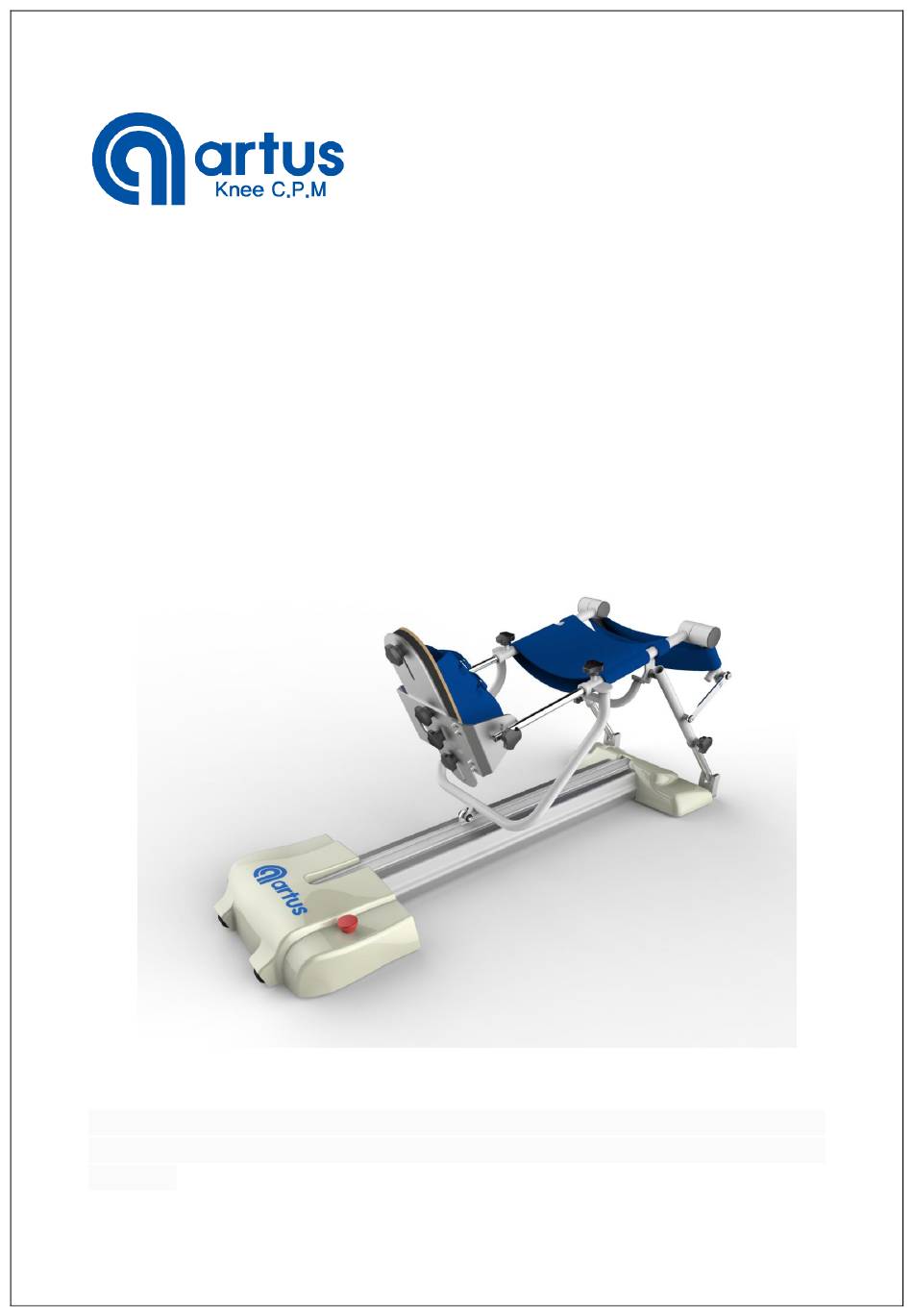

- Page 1 User’s Manual ARTUS-903K Safety precautions are intended to protect the user's safety and prevent property damage. Please read the instructions before use and use them correctly.
-
Page 2: Table Of Contents
5.2 Treatment and Maintenance 5.3 Troubleshooting Chapter 6. Warranty Thank you for purchasing the Knee CPM(ARTUS-903K). Please refer to the manual in the box to view the components contained within the box when opening the box. Be sure to familiarize yourself with this manual before connecting and powering down the parts, and keep the manuals handy for future use. -
Page 3: Chapter 1. Warning And Caution
Chapter 1. Warning and Caution Safety precautions are intended to be used safely and correctly to prevent accidents or risks, so please ensure that you read and protect them carefully. Cautions are divided into ‘warning ’ and ‘ caution ’, each meaning : Warning : If there is a possibility of death or serious injury to the person in violation of the instructions... -
Page 4: Caution
1.2 Caution Please do not disconnect the power or communication cables during operating. This could cause injury. Elderly people and people with disabilities should use it under supervision of product manager such as doctor or physical therapist. This could cause injury. ... -
Page 5: Information Of Electro-Magnetic Compatibility (Emc)
Warning : Do not use ARTUS-903K near high-power wireless equipment such as mobile phone, this could cause malfunction. Caution : ARTUS-903K is compliant with medical device regulations 93/42 / EEC and it is designed to protect it from electromagnetic signals. ... -
Page 6: Chapter 2. Product
So it is necessary to exercise properly for the quick recovery of surgical area. ARTUS-903K is the rehabilitation equipment to recover the function of knee joint quickly through continuous passive movement. -
Page 7: Purpose Of Artus-903K
The ARTUS-903K should be used in a properly equipped environment such as a hospital and must be handled by trained professional who have the proper qualifications like physical therapists or medical specialists. -
Page 8: Product Configuration

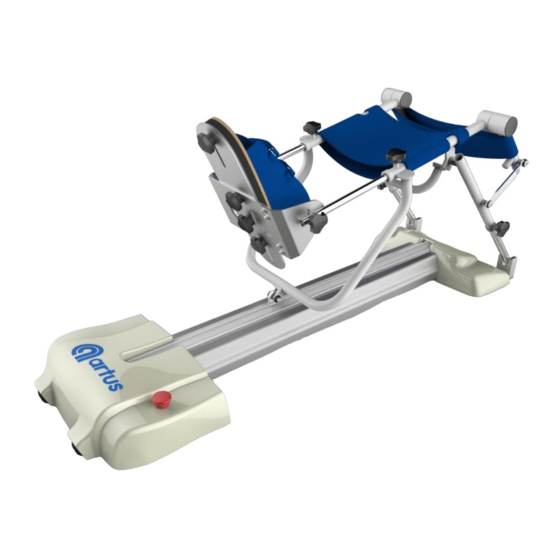

2.8 Product Configuration Please check the product and accessories before installation. Hand Controller(H/C) Power Cable Main product Component name <Main Unit> 1) Footplate and strap 2) Connection for Hand controller 3) Calf(Tibia) Length fixation knob 4) Calf support pad 5) Knee angle sensor 6) Thigh(Femur) length fixation knob 7) Body... -
Page 9: Label
2.9 Label H/C Label 2.10 Product specifications Division Contents Type of Protection Class I, Type B Rated Power AC 100V~240V, 50/60Hz Power Consumption 40VA Operating Temperature / Humidity +10°C ~ +40°C / 80% or less Storage Temperature +10°C ~ +40°C Atmospheric Pressure 700~1060 hPa Size... -
Page 10: Explanation Of Terms
Chapter 3. Explanation of Terms and Symbols 3.1 Explanation of Terms Term Explanation Upper limit Limit angle of flexion of knee Lower limit Limit angle of extension of knee Upper pause Pause time at Upper limit angle Lower pause Pause time at Lower limit angle Automatically and progressively increase the flexion and extension Progressive angle until programmed angle. -
Page 11: Chapter 4. Operation
Chapter 4. Operation Please review warning and caution in Chapter 1. Please check the connection of the power switch (cord) and the hand controller. Explanation of symbols in the control unit is covered in Chapter 3. How to adjust the device to match the length of the leg 1) Use the thigh length fixation knob(1) to adjust and fix the length of thigh. -
Page 12: How To Use Hand Controller And Set The Exercise
How to use Hand Controller and set the exercise 4.2.1 Explanation of full screen <Touch and Display area> 1) Timer/Lower pause/Upper limit 2) Angle/Bypass/Manual 3) Counter/Upper pause/Lower limit 4) Up/Down arrow 5) Speed/Uniform/Acceleration 6) Progressive, Oscillation 7) Symbol of Touch Locked 8) Exercise status ... - Page 13 4.2.2 Set the Exercising Speed and Uniform or Accelerative exercising <Fig 4.1> 1) Exercising Speed ● It means operating(moving) speed of device. ● Touch the [Speed] display area(5), and select speed step with [Up/Down]arrow(4) when the number is flickering. ● And then, touch the symbol [M](8) to complete setting of speed step. 2) Uniform(Uni) / Acceleration(Accel) mode ●...
- Page 14 4.2.3 Set the range of exercising and Pause time ● Please refer to Fig 4.1. 1) Upper limit (angle) and Lower limit (angle) ● It means exercise range to do flexion and extension of Knee ● Touch the [Upper limit] display area(1), and select upper limit (angle) to flex with [Up/Down]arrow(4) when the number is flickering.
- Page 15 4.2.5 Set the function of Progressive and Oscillation 1) Progressive increasing of ROM <Fig 4.3> ● Until reached to programmed [Upper(flexion) and Lower(extension) limit] angle, the function of [Progressive] increase flexion and extension angle progressively by 1° for each round trip of the range of exercise. ●...
- Page 16 2) Oscillation interval <Fig 4.4> ● When the device reaches the Programmed [Upper(flexion) or Lower(extension) limit] angle, it will oscillate between the programmed [Oscillation] angle. ● If touch twice the [Progressive, Oscillation] display area(6) at the screen <Fig 4.1>, screen is changed to <Fig 4.4>. ●...
- Page 17 4.2.6 Set the function of Bypass and Manual 1) Bypass <Fig 4.5> <Fig 4.6> <Fig 4.7> ● The [Bypass] function is used to adjust exercise range during exercise operating. ● Touch the [Angle] display area in screen <Fig 4.5> while exercise is operating, [Bypass] is displayed like screen <Fig 4.6>.
- Page 18 ● The [Manual] function is used to adjust exercise range at the stop mode. ● Touch the [Angle] display area in screen <Fig 4.8> while exercise is stopped, [Manual] is displayed like screen <Fig 4.9>. ● Pressing and holding the [Up arrow] increase current angle, if it is reached at desired angle, touch [Upper limit] display area to set as [Upper limit] angle.
-
Page 19: Chapter 5. Maintenance And Troubleshooting
Chapter 5. Maintenance and Troubleshooting 5.1 Storage conditions ● Please shutdown the main power switch of the product before cleaning. ● Please use a dry cloth while cleaning to protect the inside of the product from liquid. 5.2 Treatment and Maintenance ●... -
Page 20: Chapter 6. Warranty
※ If the error message continues to appear even though you have taken suggested course of actions from above, you should seek after sale service. Chapter 6 : Warranty This product is manufactured through its strict quality control and inspection process. Standard of Compensation for product repair and replacement are that comply with "compensation criteria for consumer’s damages"... - Page 21 ● This user’s manual cannot be changed or reproduced without prior consent of our company. ● This user's Manual is subject to change without prior notice. Service Information Developer & Manufacturer : CST Co., Ltd. 325, Daeyulnaechu-gil, buki-myun, Cheongwon-gu, Cheongju-si, Chungbuk-do, R.O.
- Page 22 Sep. 2017 printed CST. CO., LTD.
