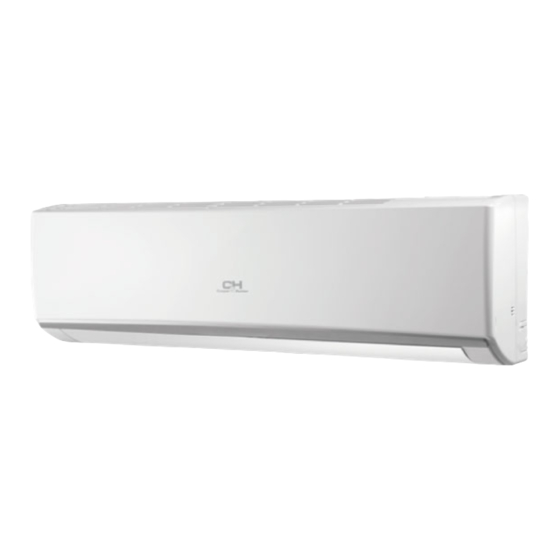

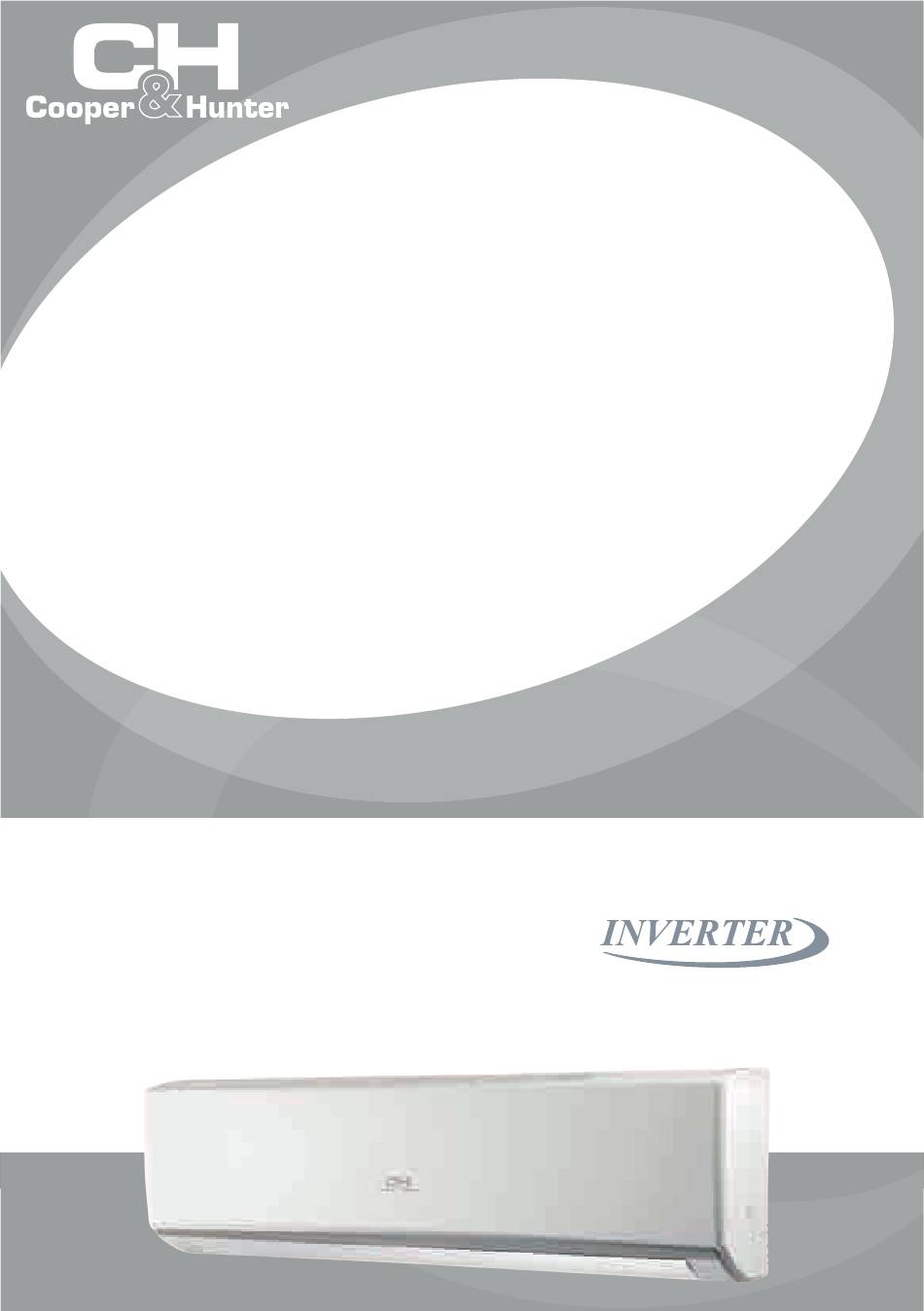

- Page 1 VICTORIA HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM INSTALLATION MANUAL Models: CH09VCT115VI/CH09VCT115VO CH12VCT115VI/CH12VCT115VO CH09VCT230VI/CH09VCT230VO CH12VCT230VI/CH12VCT230VO CH18VCT230VI/CH18VCT230VO CH24VCT230VI/CH24VCT230VO...
- Page 2 CH09VCT115VI/CH09VCT115VO (115V) System Includes: CH09VCT115VI, CH09VCT115VO CH12VCT115VI/CH12VCT115VO (115V) System Includes: CH12VCT115VI, CH12VCT115VO CH09VCT230VI/CH09VCT230VO (230V) System Includes: CH09VCT230VI, CH09VCT230VO CH12VCT230VI/CH12VCT230VO (230V) System Includes: CH12VCT230VI, CH12VCT230VO CH18VCT230VI/CH18VCT230VO (230V) System Includes: CH18VCT230VI, CH18VCT230VO CH24VCT230VI/CH24VCT230VO (230V) System Includes: CH24VCT230VI, CH24VCT230VO...
- Page 3 Explanation of Symbols Indicates a hazardous situation that, if not avoided, will result in death or serious injury. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
-
Page 4: Table Of Contents
Content Installation Notice Precautions ......................1 System Requirements ............6 Piping Requirements Installation dimension diagram ................7 Tools for installation ....................8 Selection of installation location ................8 Requirements for electric connection ..............9 Installation Installation of indoor unit. -
Page 5: Precautions
Precautions WARNING Operation and Maintenance This appliance is not intended for use by persons (incl- uding children) with reduced physical, sensory or men- tal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person respon- sible for their safety. - Page 6 Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
- Page 7 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
- Page 8 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
- Page 9 Precautions WARNING For the air conditioner with plug, the plug should be reachable after finishing installation. For the air conditioner without plug, an circuit break must be installed in the line. If you need to relocate the air conditioner to another place, only the qualified person can perform the work.
-
Page 10: System Requirements Piping Requirements
System Requirements Piping Requirements PIPE SIZE in (mm) Unit Size Voltage Liquid Line Suction/Gas Line (BtuH) 9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000 115v - 1ph 60hz 1/4 (6) 1 / 2 ( 12 ) 9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5) 12,000... -
Page 11: Installation Dimension Diagram
Installation dimension diagram Space to the wall 6in (0,15m) 6in (0,15m) Space to the wall Drainage pipe... -
Page 12: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: ●... -
Page 13: Requirements For Electric Connection
Outdoor unit will not affect neighborhood. 2. The location should be well ventilated and dry, in which the outdoor unit won't be exposed directly to sunlight or strong wind. 3. The location should be able to withstand the weight of outdoor unit. 4. -
Page 14: Installation Of Indoor Unit
Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3. - Page 15 Installation of indoor unit Indoor outdoor Note: ● Pay attention to dust prevention and take relevant safety measures when opening the hole. ● The plastic expansion particles are Φ2 (55)/ 5-10° Φ2 (70) not provided and should be bought locally. Step four: outlet pipe 1.
- Page 16 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench Φ 15~20 Φ 30~40 union nut Φ 45~55 pipe Φ 60~65 torque wrench Φ 70~75 indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape.
- Page 17 Installation of indoor unit 2. Make the power connection wire go cable-cross through the cable-cross hole at the back hole of indoor unit and then pull it out from the front side. power connection wire 3. Remove the wire clip; connect the power connection wire to the wiring terminal with wire clip.
- Page 18 Installation of indoor unit Step eight: bind up pipe 1. Bind up the connection pipe, power drain hose connection pipe band cord and drain hose with the band. indoor and outdoor power cord indoor unit pipe indoor power cord liquid pipe 3.
-
Page 19: Installation Of Outdoor Unit
Installation of outdoor unit (select it according to the actual installation situation) 1. Select installation location according to the house structure. 2. Fix the support of outdoor unit on the selected location with expansion screws. Note: installing the outdoor unit. ●... - Page 20 Installation of outdoor unit Step four: connect indoor and outdoor pipes 1. Remove the screw on the right han- 3. Pretightening the union nut with dle of outdoor unit and then remove hand. the handle. pipe joint handle screw yellow- green union nut 4.
- Page 21 Installation of outdoor unit 2. Fix the power connection wire and signal control wire with wire clip (only for cooling and heating unit). Note: ● Never cut the power connection wire to prolong or shorten the distance. Step six: neaten the pipes 1.
- Page 22 Installation of outdoor unit The 18K QD、24K QE UNIT drainage hole consists of two Φ1" and two kidney holes (see the fig.1). The drain plug consists of one Φ1" and two kidney plugs. (The figures in this manual may be different with the material objects, please refer to the material objects for reference) Drain plug drain...
-
Page 23: Vacuum Pumping
Vacuum pumping Use vacuum pump 1. Remove the valve caps on the liquid valve and gas liquid valve piezometer valve and the nut of refri- gas valve gerant charging vent. refrigerant charging 2. Connect the charging hose valve cap vent of piezometer to the refri- gerant charging vent of gas nut of refrigerant... -
Page 24: Check After Installation
Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been installed firmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause insufficient cooling test? (heating) capacity. -
Page 25: Configuration Of Connection Pipe
Configuration of connection pipe 1. Standard length of connection pipe ● 16,5ft (5m), 25ft (7.5m), 26,5ft (8m). 2. Min. length of connection pipe is 10ft (3m). 3. Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling... - Page 26 Configuration of connection pipe Additional refrigerant charging amount for R410A Diameter of connection pipe Outdoor unit throttle Liquid pipe(in) Gas pipe(in) Cooling only(g/m) Cooling and heating(g/m) Φ1/4 Φ3/8 or Φ1/2 Φ1/4 or Φ3/8 Φ5/8 or Φ3/4 Φ1/2 Φ3/4 or Φ7/8 Φ5/8 Φ1 or Φ1 Φ3/4...
-
Page 27: Pipe Expanding Method
Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port ● Confirm the pipe length according to ● Expand the port with expander. the distance of indoor unit and hard outdoor unit. -
Page 28: Start-Up And Troubleshooting
START-UP AND TROUBLESHOOTING Explain Following Items To Customer With The Aid Of The Owner’s Manual: 1. How to turn system on and off; selecting COOLING, HEATING and other operating modes; setting a desired temperature; setting the timer to automatically start and stop system operation; and all other features of the Remote Control and display panel. - Page 29 www.cooperandhunter.us PRODUCT & INSTALLATION RECORD For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information, will be helpful should your system require maintenance or service. UNIT INFORMATION Model No.
- Page 30 www.cooperandhunter.us 66160000086...
