Toa HX-5B Operating Instructions Manual

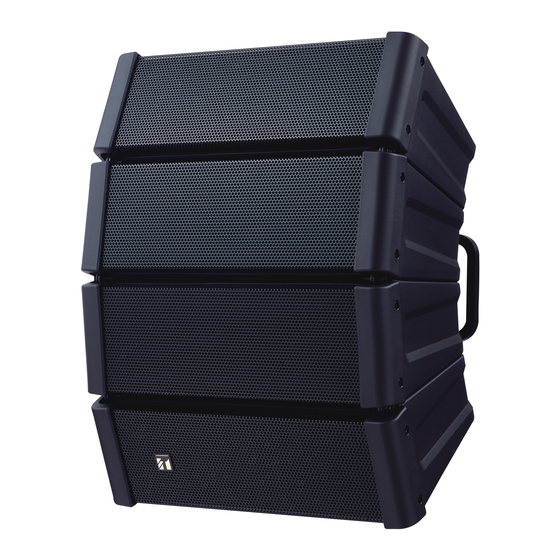

Toa electronics speaker system user manual
Hide thumbs Also See for HX-5B:

Advertisement

Table of Contents

SPEAKER SYSTEMS

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ............................. 2
2. GENERAL DESCRIPTION ........................... 3
3. FEATURES ................................................... 3
PROTECTION CIRCUITRY .......................... 4
6. DIMENSIONAL DIAGRAM ........................... 5
REAR PLATE ............................................... 5
8. INPUT SECTION .......................................... 6

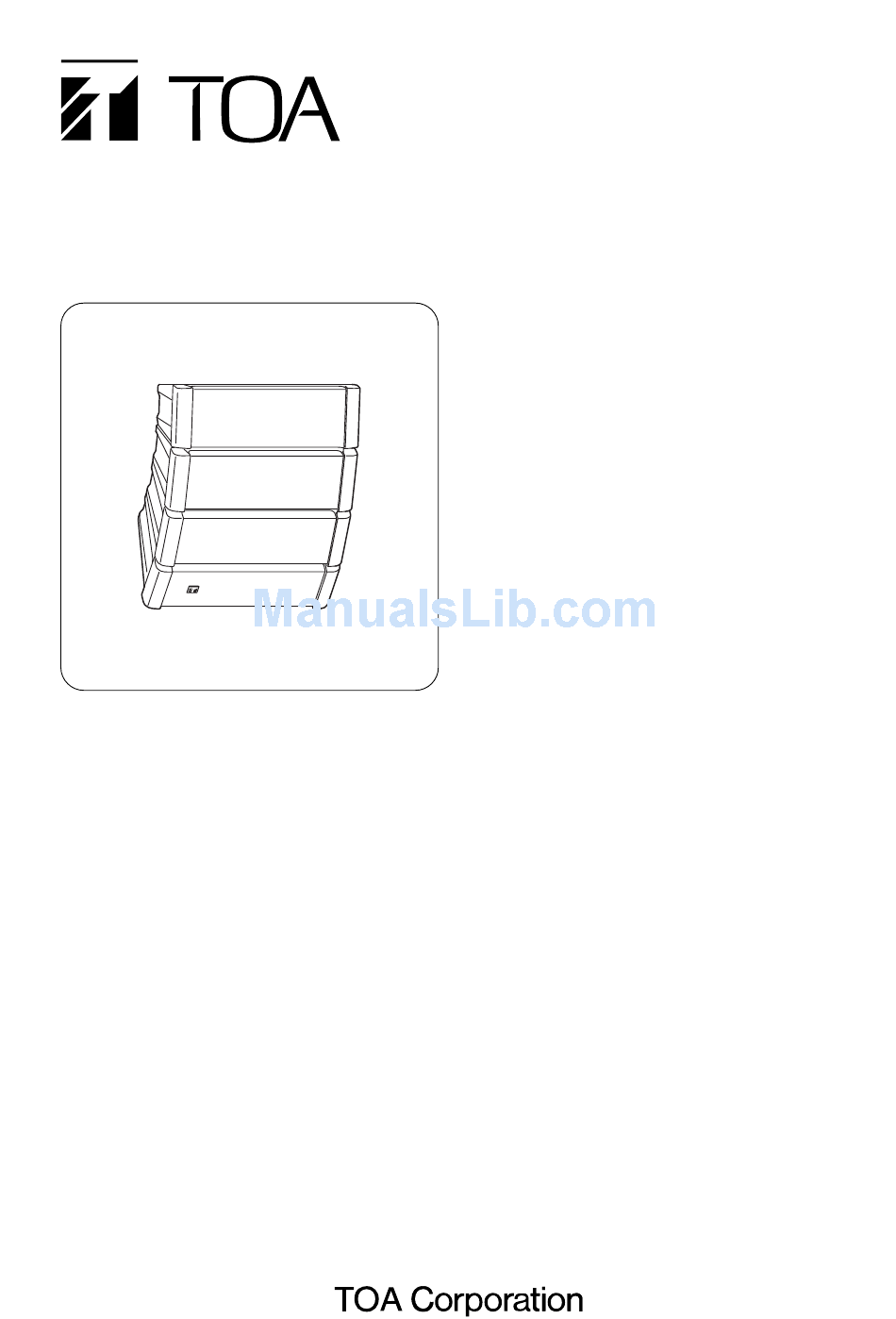

OPERATING INSTRUCTIONS
HX-5B
HX-5W
HX-5B-WP
HX-5W-WP
Thank you for purchasing TOA's Speaker
System.
Please carefully follow the instructions in this
manual to ensure long, trouble-free use of
your equipment.
DIRECTIVITY ANGLE ................................ 7
10. SUSPENDED INSTALLATION .................. 9
11. DIRECT WALL MOUNTING ..................... 13
12. MOUNTING BRACKET TYPES ............... 14
MATCHING TRANSFORMER .................. 15
15. SPECIFICATIONS .................................... 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX-5B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa HX-5B

Summary of Contents for Toa HX-5B

  • Page 1: Table Of Contents

    3. FEATURES ... 3 4. ABOUT THE INPUT OVERLOAD PROTECTION CIRCUITRY ... 4 5. INSTALLATION PRECAUTIONS FOR THE HX-5B-WP AND HX-5W-WP ... 4 6. DIMENSIONAL DIAGRAM ... 5 7. CHANGING THE ORIENTATION OF REAR PLATE ... 5 8. INPUT SECTION ... 6...

  • Page 2: Safety Precautions

    • Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket. Doing otherwise may result in the unit falling down and causing personal injury and/or property damage. • (HX-5B-WP and HX-5W-WP only) When installing the unit in the snowy area, take appropriate measures to prevent snow from lying on the unit.

  • Page 3: General Description

    It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5B and HX-5W are designed for indoor use, while the HX-5B-WP and HX-5W-WP are for outdoor use.

  • Page 4: About The Input Overload Protection Circuitry

    Tilt down from the horizontal. • Both the HX-5B-WP and the HX-5W-WP employ a splash-proof construction that allows them to be installed outdoors, but they should only be installed in locations where the ambient temperature is within the range of –15°C to +50°C.

  • Page 5: Dimensional Diagram

    408 (16 1/16 7. CHANGING THE ORIENTATION OF REAR PLATE The orientation of the speaker system's rear plate can be changed as follows. [Factory-preset mounting] Rear plate • HX-5B/5W Input Section Screw terminals Speakon NL4MP connector [Side] 342 (13 15/32...

  • Page 6: Input Section

    8. INPUT SECTION 8.1. HX-5B and HX-5W • The 2 Speakon connectors are internally connected in parallel to the screw terminals; you can use either one. • The right table shows the pin arrangement of the Speakon NL4MP connector. • The usable connector (on the cable end) for the Speakon NL4MP is Speakon NL4FC.

  • Page 7: Changing The Speaker'sdirectivity Angle

    9. CHANGING THE SPEAKER'S DIRECTIVITY ANGLE The speaker system's directivity angle mode is factory-preset to 60°, but this mode can be changed to 45°, 30°, or 15° by following the procedure described below. The figure on the right shows the speaker system in 60° mode. directivity angle 60°...
  • Page 8 Step 3. Reposition the 4 bolts to the desired directivity angle, then retighten them securely. The sound coverage area can also be made asymmetrical by shifting the position of each bolt to different directivity angle. [60° mode (factory-preset)] Angle adjustment section 30°...

  • Page 9: Suspended Installation

    10. SUSPENDED INSTALLATION The speaker systems may be suspended either vertically or horizontally. [Vertical suspension] Step 1. For vertical suspension: For horizontal suspension: Remove the speaker grills on the modules at both ends of the speaker Remove the grill fixing screws using the supplied hex head wrench. [Vertical suspension] [Horizontal suspension] [Horizontal suspension]...
  • Page 10 Step 2. For vertical suspension: For horizontal suspension: Remove the 4 front bar fixing bolts. (Below, lower) Place the speaker system on a workbench when doing this work. [Vertical suspension] [Horizontal suspension] Remove the 2 front bar fixing bolts. (Below, upper) Front bar fixing bolts Front bar...
  • Page 11 Step 3. Fix the suspension bracket and the front bar with the bolts removed in step 2. WARNING The figure on the right is for the horizontal suspension of speaker system. For the vertical suspension, the work is done on either module to be suspended. Step 4.
  • Page 12 Step 6. Suspend the speaker system using appropriate commercially obtained wires, chains, or anchor shackles. To mount the speaker system horizontally, rotate the speaker system's rear plate 90° from the factory-preset orientation. For details, refer to p. 5, Changing the orientation of rear plate. WARNING Run the anchor shackles, etc.

  • Page 13: Direct Wall Mounting

    11.1. Vertical Installation Note For outdoor use, install the HX-5B-WP or HX-5W-WP in conjunction with the HY-WM1WP Speaker Mounting Bracket so that all speaker modules point downward from the horizontal. Failure to do so could adversely affect their water-resistant capability, leading to malfunction.

  • Page 14: Mounting Bracket Types

    Connect 2 speaker systems to allow directivity control for lower frequencies. [Speaker systems and mounting brackets] Mounting bracket Speaker rigging frames Speaker mounting brackets Speaker mounting brackets Speaker stand adapter Speaker Extension brackets Speaker system HX-5B HY-PF1B HY-PF1W HY-PF1WP HY-CW1B HY-CW1W HY-CW1WP HY-WM1B HY-WM1W...

  • Page 15: Combination With The Mt-200 Matching Transformer

    13. COMBINATION WITH THE MT-200 MATCHING TRANSFORMER Using the optional MT-200 matching transformer allows the speaker system to be connected to a high- impedance amplifier. This matching transformer is best for use when the distance between the amplifier and speaker is very long, or when multiple speaker systems are parallel-connected to a single amplifier. Regarding the procedure for mounting the transformer on the speaker, refer to the instruction manual enclosed with the MT-200.

  • Page 16: Specifications

    Note: The design and specifications are subject to change without notice for improvement. • Accessories Suspension bracket ... 2 Hex head wrench ... 1 HX-5B HX-5W Bass-reflex type Continuous pink noise: 200 W, Continuous program: 600 W 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode) 70 to 20,000 Hz (60°...

This manual is also suitable for:

Hx-5Hx-5b-wpHx-5wHx-5w-wp
