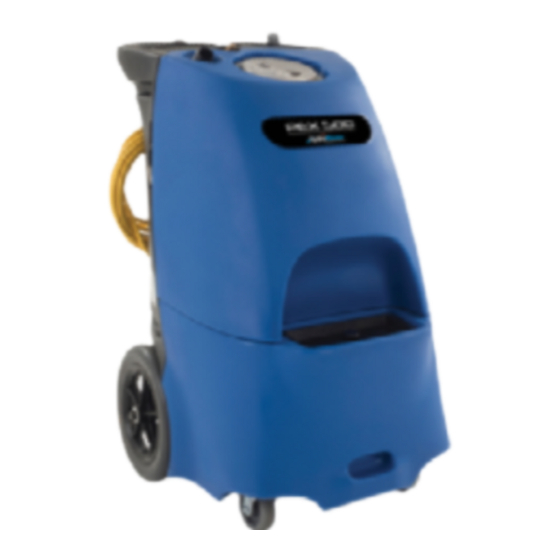

PEX 500-C-TICK
INFORMATION
&
OPERATING
INSTRUCTIONS
MODEL: 56113001
CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTION MANUAL
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1/11 revised 4/2016 FORM NO. 56091021 REV C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEX 500-C-TICK and is the answer not in the manual?

Questions and answers

Related Manuals for U.S. Products PEX 500-C-TICK

Summary of Contents for U.S. Products PEX 500-C-TICK

  • Page 1 PEX 500-C-TICK INFORMATION & OPERATING INSTRUCTIONS MODEL: 56113001 CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTION MANUAL IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1/11 revised 4/2016 FORM NO. 56091021 REV C...

  • Page 2: Table Of Contents

    Pallet System 500-1 C-TICK ........18-19 Pallet System 500-2 C-TICK ........20-21 Recovery System ............22 Solution System............23 Wiring Diagram ............24-25 Options & Accessories..........25 Water Flow Diagram ............. 26 A-2 - FORM NO. 56091021 - PEX 500-C-TICK revised 11/13...

  • Page 3: Introduction

    When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton so that it can be inspected. Contact the US Products Customer Care Department immediately to fi le a freight damage claim at 800.257.7982 then press option #2. FORM NO. 56091021 - PEX 500-C-TICK - A-3 revised 7/12...
  • Page 4 Water that has fl own through backfl ow preventers is considered to be non-potable. • Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun. A-4 - FORM NO. 56091021 - PEX 500-C-TICK revised 7/12...

  • Page 5: Grounding Instructions

    Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs and outlets. DO NOT use extension cords more than 50 feet (15 m) long. WARNING! • If an extension cord is used, the plug and socket must be of watertight construction. • Inadequate extension cords can be dangerous. FORM NO. 56091021 - PEX 500-C-TICK - A-5...

  • Page 6: Know Your Machine

    A-6 / ENGLISH KNOW YOUR MACHINE Solution Hose Quick Disconnect Solution Tank Fill Opening Vacuum Hose Barb Drain Hose Handles Roller Balls Wheel Castor Solution Filter 10 Recovery Tank Shutoff Float A-6 - FORM NO. 56091021 - PEX 500-C-TICK...
  • Page 7 14 Pressure Adjustment Knob 15 Pressure Gauge 16 Pressure Relief Valve 17 Cord Retainer Straps (four) 18 Hour Meter (Optional) 19 Wand Retainer Bracket 20 Pigtail Power Cords 21 Hose Hangers (two) FORM NO. 56091021 - PEX 500-C-TICK - A-7...

  • Page 8: Know Your Switch Plate

    Vacuum Switch - This switch turns the second of the two vacuum motors ON and OFF. Heat Switch - This three position switch controls the water temperature. Position (I) is low temperature, Position (O) is OFF and Position (II) is high temperature. A-8 - FORM NO. 56091021 - PEX 500-C-TICK...

  • Page 9: Preparing The Machine For Use

    Never use water above 130º F/54º C in the solution tank. CAUTION! Use low-sudsing, liquid detergents designed for carpet extraction. FORM NO. 56091021 - PEX 500-C-TICK - A-9...

  • Page 10: Operating The Machine

    Recovery Tank Drain Hose (4) into its side storage location, then remove the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled fl ow of waste water). 17 Follow the instructions in the After Using the Machine section of this manual. A-10 - FORM NO. 56091021 - PEX 500-C-TICK...
  • Page 11 ENGLISH / A-11 OPERATING THE MACHINE FORM NO. 56091021 - PEX 500-C-TICK - A-11...

  • Page 12: After Using The Machine

    Once a week (or more often if necessary), check the power cords for cracked or damaged insulation, exposed wires in the cord or plug, and damaged or missing ground pin. Repair or replace damaged cord or plug immediately. A-12 - FORM NO. 56091021 - PEX 500-C-TICK...

  • Page 13: Troubleshooting

    Protection Grade IPX4 Sound Pressure Level 68.7 dB LpA, 3 dB (IEC 60704-2-1) Total Weight 112 lbs. (50.8 kg) Solution Tank Capacity 12 gal (45.5 L) Recovery Tank Capacity 10 gal (37.8 L) FORM NO. 56091021 - PEX 500-C-TICK - A-13...

  • Page 15: Section Ii - Parts List

    56113034 Hinge Plate 56113103 Kit-Hardware Solution Tank Specify the model and serial number of the machine. Use the space below to record the model and serial number for future reference. Model _____________________________ Serial No. ________________________________ 1/11 56091021 - PEX 500-C-TICK...

  • Page 16: Decal System

    7/2012 PARTS LIST DECAL SYSTEM C-TICK PEX 500-C-TICK - 56091021 1/11...
  • Page 17 7/2012 PARTS LIST DECAL SYSTEM C-TICK Kit Item Ref. No. Description 4339 Label Caution / Extension Cord 4344 Label Gauge Priming Warning 2 56113055 Decal-PEX 500 56380692 Label Danger Electric Shock 56380831 Decal-CRI Gold 1/11 56091021 - PEX 500-C-TICK...

  • Page 18: Pallet System 500-1 C-Tick

    To Pressure Gauge To Heater To Heater To Pump To Pump To Barb On Recovery Tank To "T" Barb From Unloader To Barb On Solution Tank To Barb On Pump To Barb On Solution Tank PEX 500-C-TICK - 56091021 1/11...
  • Page 19 [ ] = Not Shown 56412277 Solution Hose * = Optional, Not Included 56113063 Hose 3/8 ID # = Revised or new since last update 56113064 Gasket-Pallet NOTE 1:# Used on machines starting with serial number 4000107283 and above. 1/11 56091021 - PEX 500-C-TICK...

  • Page 20: Pallet System 500-2 C-Tick

    4/2016 PARTS LIST PALLET SYSTEM 500-2 C-TICK PEX 500-C-TICK - 56091021 1/11...
  • Page 21 [ ] = Not Shown 56412277 Solution Hose * = Optional, Not Included 56113063 Hose 3/8 ID # = Revised or new since last update 56113064 Gasket-Pallet NOTE 1:# Used on machines starting with serial number 4000107283 and above. 1/11 56091021 - PEX 500-C-TICK...

  • Page 22: Recovery System

    Recovery Tank Gasket 56113039 Ball Float Assy 56105265 Drain Hose 56113126 Plug-Drain Hose (for 56113125) Lid and Ring 6 Lid W/Clear 56380968 O-Ring # = Revised or new since last update Service Kits 56113100 Kit-Recovery Tank Lid PEX 500-C-TICK - 56091021 1/11...

  • Page 23: Solution System

    Filter 40 Mesh S/S 1/2NPT FEM 901A Lid-Tank-Sol 92BUSP Nipple PVC 1/2 N.P.T. 1083 Hose Barb, 3/8 Barb X 1/4 Mpt 1113 Hose Barb 90 Degree 1/2 Hos FHP-10-32 5-8 Service Kits 56113103 Kit-Hardware Solution Tank 1/11 56091021 - PEX 500-C-TICK...

  • Page 24: Wiring Diagram

    GRN/YEL BRN/WHT 240V LAMP NEON 240V LAMP NEON MAIN POWER 2 120V MACHINE ONLY RED/WHT BLK/WHT TEMP 1 TEMP 1 TEMP 2 TEMP 2 GRN/YEL TEMP CUT-OFF TEMP CUT-OFF HEATER HEATER HEAT ELEMENT HEAT ELEMENT PEX 500-C-TICK - 56091021 1/11...

  • Page 25: Options & Accessories

    Description Options 56113108 Kit-Hour Meter FP203 Vac Hose/Pressure Ln. 15’ Exte FP196 Vac Hose/Pressure Ln. 25’ Exte FPHT-5 Hand Tool Detailer S/S SUBSYP1 Syphon-Hose-Red (for priming pump) 56044607 Literature Pack * = Optional, Not Included 1/11 56091021 - PEX 500-C-TICK...

  • Page 26: Water Flow Diagram

    GREEN = 500PSI WATER FLOW PURPLE = PRESSURE RELIEF RETURN TO TANK RED = 500PSI HEATED WATER FLOW Item Description Solution Tank Fresh Water Inlet Filter 500PSI Pump Unloader Valve Pressure Gauge Pressure Relief Valve 500PSI Quick Connect Heater PEX 500-C-TICK - 56091021 1/11...
