Model 3700 Route Mapping Display

The Model 3700 data acquisition server has additional diagnostic features that assist with R9120-5 transceiver deployments

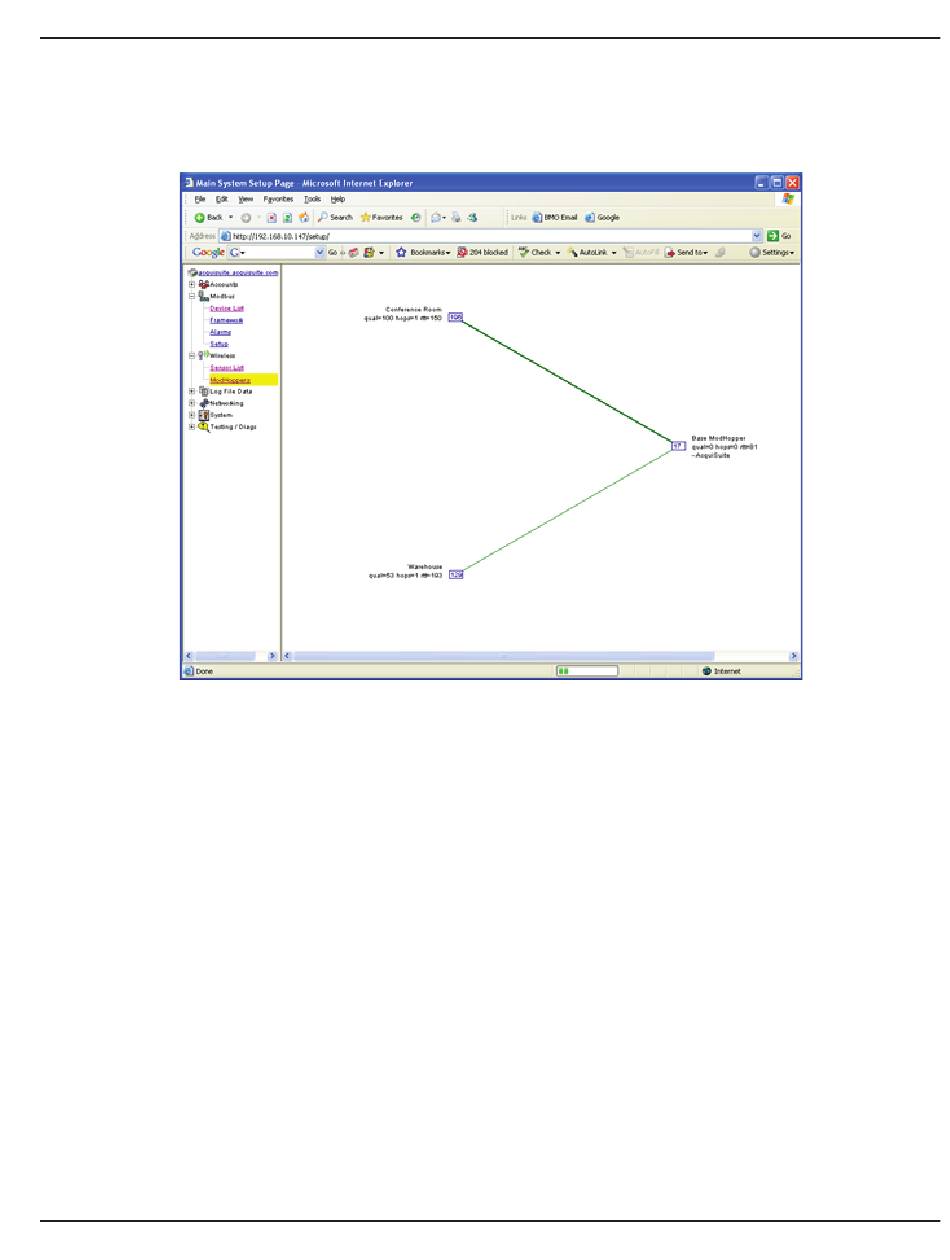

The most useful is the R9120-5 transceiver route map Select the R9120-5 transceivers menu from the Wireless section in the
Model 3700 data acquisition server menu tree as shown below
The graph will draw a blue box for each R9120-5 transceiver that is attached to the system The blue number inside the box
icon is the Modbus address of the R9120-5 transceiver To the side of each icon, three lines of information will be shown
The device list name will be shown to the side of each R9120-5 transceiver icon
The link quality, hops and round trip time (rtt) will be printed under the R9120-5 transceiver name
A list of attached Modbus device addresses will be shown on the third line This is a list of addresses that the R9120-5
transceiver has automatically detected on the local RS485 port
The graph will print strong links in thick green lines Lines progress from green, to yellow, to red to indicate weak links
June 2016
XMT-UM-02107-EN-01
Monitoring Usage
Page 9
