Mechanical Drawings
MECHANICAL DRAWINGS

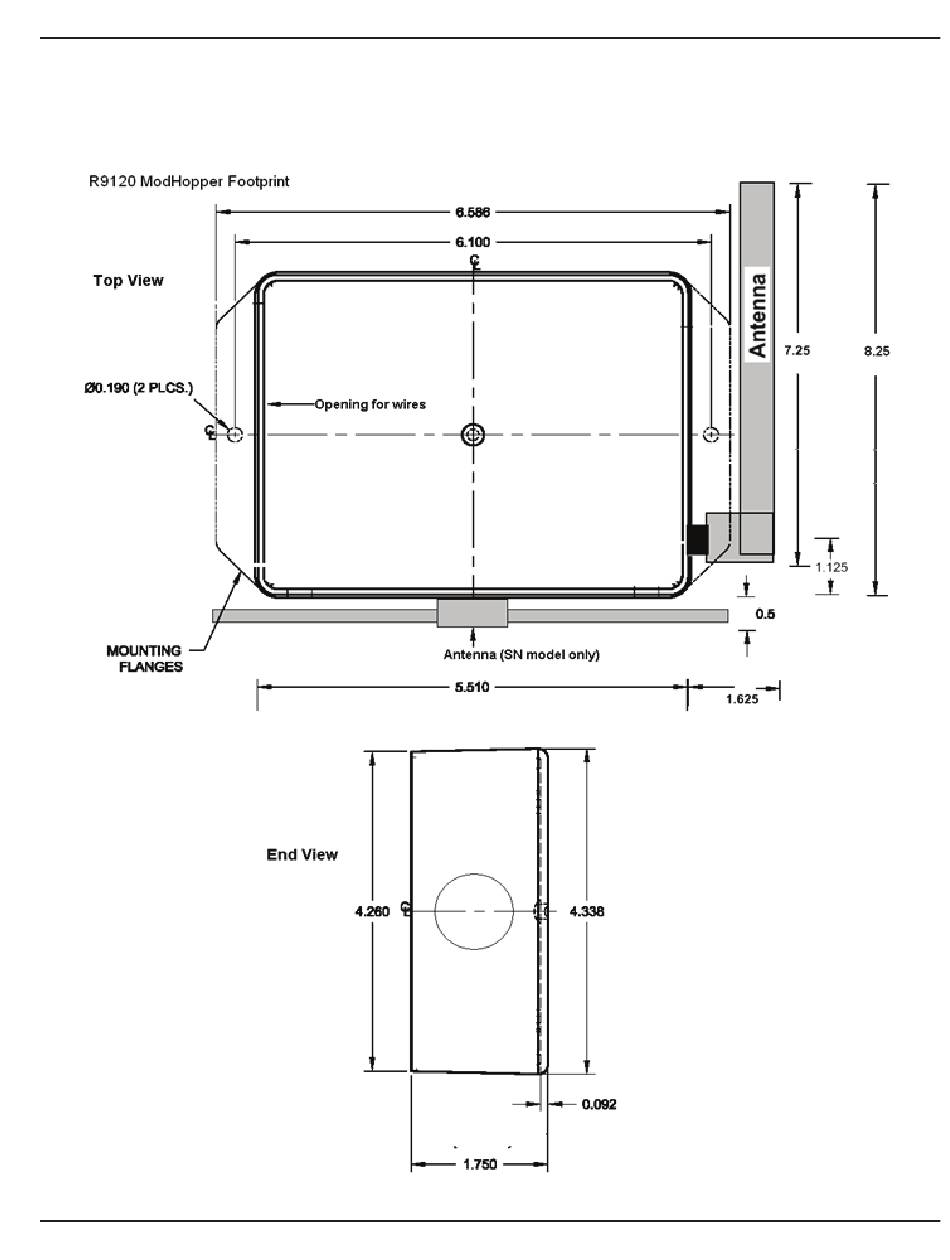

The R9120-5 transceiver must be wall-mounted, or mounted inside an appropriate enclosure rated for the weather, location,
and electrical components located inside it The R9120-5 transceiver mounting holes are detailed below
June 2016
XMT-UM-02107-EN-01
Page 13
