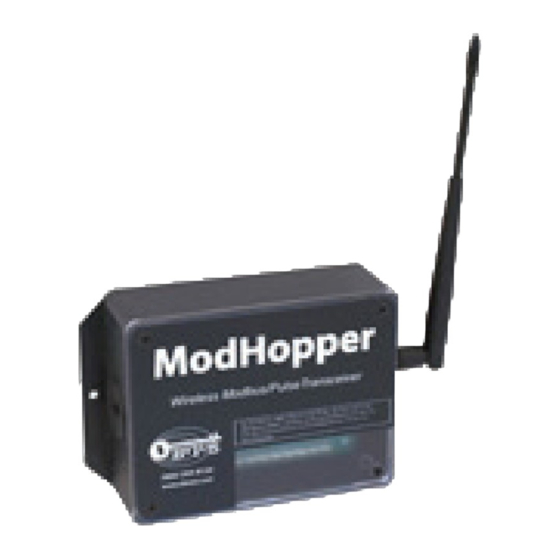

- Page 1 Wireless Modbus/Pulse Transceiver ModHopper R9120-5 User Manual XMT-UM-02107-EN-01 (June 2016)
-
Page 2: Table Of Contents
Wireless Modbus/Pulse Transceiver, ModHopper R9120-5 CONTENTS Markings and Symbols Overview Applications Installation Checklist Required Hardware External Hardware Specifications Electrical Connections Hardware Installation Modbus Address System Settings Status LEDs Signal Strength Test Monitoring Usage Model 3700 Data Display Page Model 3700 Advanced Configuration Options Model 3700 Route Mapping Display Modbus Features Supported Modbus Functions... -
Page 3: Markings And Symbols
Markings and Symbols MARKINGS AND SYMBOLS WARNING: A potential risk exists if the operating instructions are not followed GENERAL WARNING SYMBOL: THIS SYMBOL INDICATES THE NEED TO CONSULT THE OPERATING INSTRUCTIONS PROVIDED WITH THE PRODUCT. THIS SYMBOL INDICATES THE PRESENCE OF ELECTRIC SHOCK HAZARDS. THIS SYMBOL INDICATES: DO NOT APPLY TO OR REMOVE FROM HAZARDOUS LIVE CONDUCTORS. -
Page 4: Specifications
Not intended for use with rechargeable batteries The R9120-5 is not cross-compatible with the Badger Meter 345WT For use with any Modbus RTU device/server As per SIPCO LLC, this product may be used in a system and employ or practice certain features and/or methods of one or more of the following patents:... -
Page 5: Electrical Connections
Electrical Connections ELECTRICAL CONNECTIONS HARDWARE INSTALLATION 1 Unpack materials: Remove all materials from shipping box and verify all required components are available 2 An antenna inside a non-metallic enclosure will be required Metal enclosures restrict RF communications If a metal enclosure is required, use an external antenna and an RF antenna cable 3 Connect the pulse output devices For KYZ pulse output meters, attach the normally-open circuit to the R9120-5 transceiver These are usually the K and Z terminals... -
Page 6: Modbus Address
Hardware Installation Modbus Address Before the R9120-5 transceiver can be used, you must set the Modbus address of the R9120-5 transceiver This address must be unique among all Modbus devices in the system, including all devices that are connected on remote wireless links Address 0 (all switches OFF) is not allowed Select an address, and set the dipswitches to match The sum of the value of the switches is the address In the example to the right, address 52 is set by placing switch 4, 16 and 32 to the ON position... -
Page 7: Monitoring Usage
Monitoring Usage MONITORING USAGE The R9120-5 transceiver has several data points that may be read using the Modbus protocol For each of the two pulse inputs, the R9120-5 transceiver reports a value for consumption and rate Rate fields are provided for the average rate during the log period (block demand), the instantaneous rate, and the min/max instantaneous rate observed during the log period The pulse counts for each input are stored in non-volatile memory to preserve the count when power is removed For more information on the specific Modbus registers used for the pulse inputs, refer to the Modbus... -
Page 8: Model 3700 Advanced Configuration Options
Monitoring Usage Model 3700 Advanced Configuration Options The Model 3700 data acquisition server setup and configuration page includes an advanced configuration page to set all of the R9120-5 transceiver features with a convenient web page interface Below is an example screen for the Model 3700 advanced configuration page In this setup page, there are several options available •... -
Page 9: Model 3700 Route Mapping Display
Monitoring Usage Model 3700 Route Mapping Display The Model 3700 data acquisition server has additional diagnostic features that assist with R9120-5 transceiver deployments The most useful is the R9120-5 transceiver route map Select the R9120-5 transceivers menu from the Wireless section in the Model 3700 data acquisition server menu tree as shown below The graph will draw a blue box for each R9120-5 transceiver that is attached to the system The blue number inside the box icon is the Modbus address of the R9120-5 transceiver To the side of each icon, three lines of information will be shown... -
Page 10: Modbus Features
These should be sufficient to perform all operations (read many values, make single change, and identify) In addition, the device will respond to with Modbus exceptions for invalid function, value, and register if out-of-bound requests are made Modbus function 0x11 Slave ID function will respond with ID=49 "Badger Meter, ModHopper, R9120-5" Modbus Register List... - Page 11 Modbus Features 40136 UINT16 Radio Serial MSW 40137 UINT16 Radio Serial LSW 40138 UINT16 Radio Firmware 40139 UINT16 Radio Type 1=R9120-1(lowpower), 2=R9120-3(highpower) 0=unknown) 40140 UINT16 (R/W) Modbus 485 timeout in ms. Default 240ms range 40max to 2000ms. Affects modhopper in master mode only.(max 5000ms in v1.17) 40141 UINT16 (R/W) Pulse KYZ flag bitmap.
-
Page 12: Register Functions
Modbus Features Register Functions Pulse Count The pulse count is stored as an unsigned 32 bit integer This allows for 2^32 pulses (4 2 billion) to be counted before rollover On Modbus systems that do not allow you to read 32 bit values, you can calculate the pulse count as follows: count = (MSW * 65536) + LSW count = (MSW <<... -
Page 13: Mechanical Drawings
Mechanical Drawings MECHANICAL DRAWINGS The R9120-5 transceiver must be wall-mounted, or mounted inside an appropriate enclosure rated for the weather, location, and electrical components located inside it The R9120-5 transceiver mounting holes are detailed below June 2016 XMT-UM-02107-EN-01 Page 13... -
Page 14: Firmware Update
FIRMWARE UPDATE From time to time, Badger Meter may release firmware updates with additional features and system changes To find out what firmware your R9120-5 transceiver has installed, read the firmware version register with a Modbus utility, or use the... - Page 15 INTENTIONAL BLANK PAGE June 2016 XMT-UM-02107-EN-01 Page 15...
