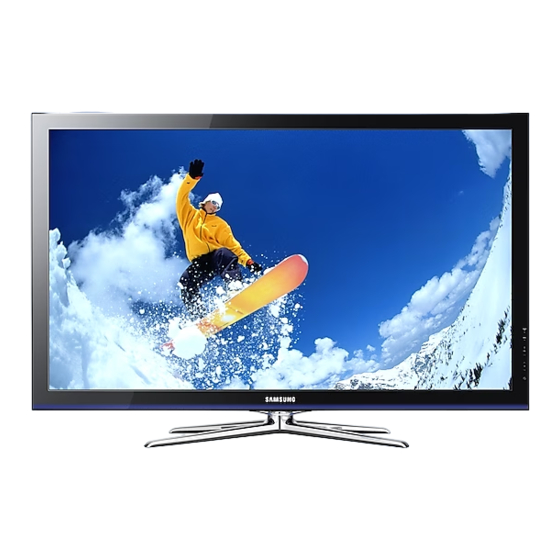

Samsung PS50C490B3W Quick Setup Manual

Hide thumbs


Advertisement

¦ ¦

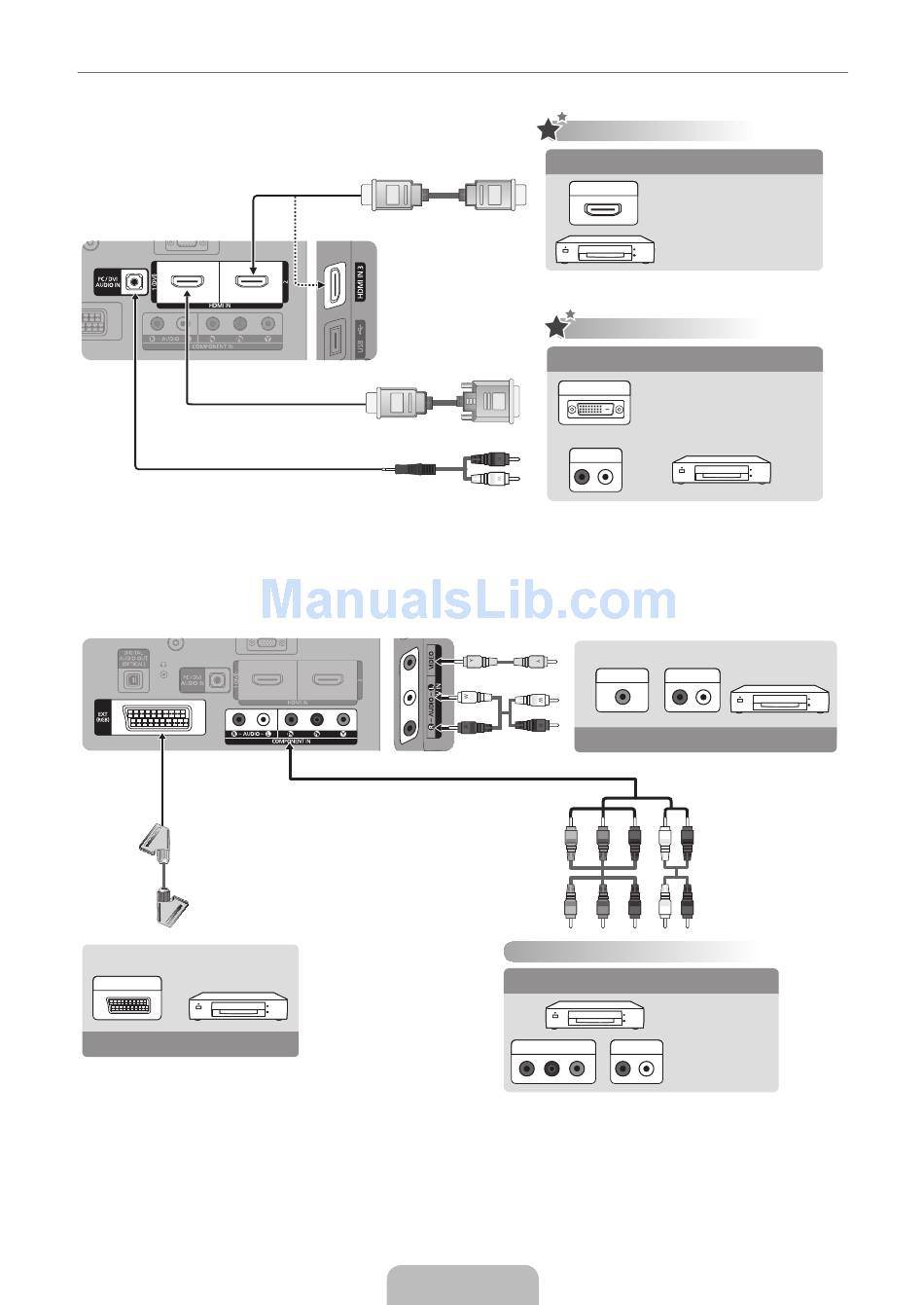

Connecting¦a¦AV¦device
VCR / DVD
EXT
Using a Scart Cable
HD¦connection
HDMI OUT
HD¦connection
DVI OUT
AUDIO OUT
G
G
Component connection
Using a Component Cable
COMPONENT OUT
G
B
R
W
R
G
B
R
W
R
English -4
Using an HDMI Cable
DVD / Blu-ray player
/ HD Cable Box / HD
STB (Set-Top-Box)
satellite receiver
Using an HDMI to DVI Cable
DVD /
Blu-ray player
VCR
VIDEO OUT
AUDIO OUT
Using an Audio/Video Cable
B
R
W
R
B
R
W
R
DVD, Blu-ray
player, cable
box, STB satellite
AUDIO OUT
receiver, VCR

Advertisement

Table of Contents

   Summary of Contents for Samsung PS50C490B3W

  • Page 1 ¦ ¦ Connecting¦a¦AV¦device VCR / DVD Using a Scart Cable HD¦connection Using an HDMI Cable HDMI OUT HD¦connection Using an HDMI to DVI Cable DVI OUT AUDIO OUT VIDEO OUT Using an Audio/Video Cable Component connection Using a Component Cable COMPONENT OUT AUDIO OUT English -4...
  • Page 2: Quick Setup Guide

    Plasma TV QUICK SETUP GUIDE ¦ ¦ The¦Supplied¦Accessories y Remote Control & Batteries (AAA x 2) y Owner’s Instructions y Quick Setup Guide y Blanking Bracket See separate guide for installing the stand. y Stand (1EA) ✎ Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.
  • Page 3 ¦ ¦ Installing¦the¦Stand Preset Front Back ✎ Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models (Depending on the model) Step¦1.¦ Connect the Guide Stand to the Stand using five screws (M4 X L12) as shown. ✎...
  • Page 4 ¦ ¦ Plug¦&¦Play When the TV is initially powered on, basic settings proceed automatically and subsequently. ✎ Preset: Connecting the power cord and antenna. ✎ The PDP device may interfere with an amateur radio or AM radio. If you want to reset this feature, press the You can set the Plug &...
