F O R
T H E
L
O
V
E
O
F
M
U
S
I
C

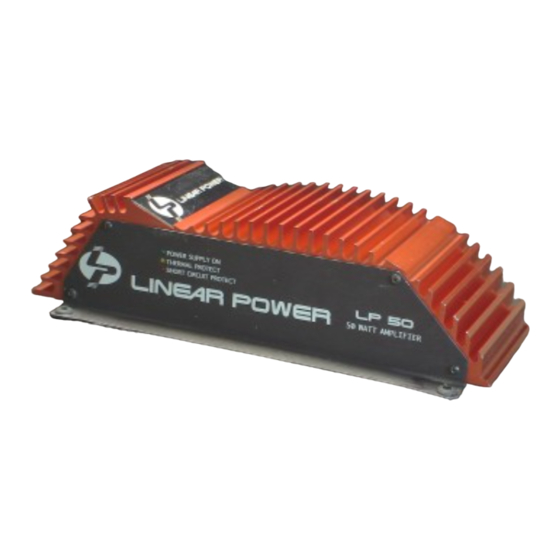

LP50
©
OWNER'S MANUAL AND
INSTALLATION GUIDE
INTRODUCTION
You have purchased an amplifier that leads the way with sound quality, reliability,
and features. These high performance amplifiers deliver what you ask for:
smooth, effortless listening, or hard driving power to get you down the road.
LINEAR POWER™ has been a name recognized since 1975 as a product
delivering high quality and audio excellence. Now, you have the results of that
experience.
LP50
features include: frequency programmable high-pass, low-pass, or
©
bypass cross-over filter; high current, gold plated power connector, gold plated
5-way binding post speaker connections, panel mount fuse, high quality
components, bass and treble controls (Z models only, and LINEAR POWER™
reliability and commitment to excellence. Enjoy the Music!!
IMPORTANT NOTICE
The LP50
is NOT 2-ohm mono stable. While it may be used in 2-ohm stereo, if
©
you hook-up this amplifier in 2-ohm mono it will DAMAGE the unit and VOID
your warranty. For further information on this, or assistance to calculate your total
speaker load impedance, please call T.I.P.S. Inc. (see info under Service or
Repair heading)
CONTROLS and CONNECTIONS
Please read through this entire section before installing your amplifier in the
vehicle. Disconnect the negative (-) battery terminal in your vehicle and remove
the fuse from the amplifier before making or breaking any connections. Do not
install power line fuse at battery or amp until the installation of your amplifier is
complete.
1. Input connections: Connect with quality patch cords from the head unit,
preamplifier, crossover, or any other sound processor.
© 2008 Linear Power, Inc. - ALL RIGHTS RESERVED
1
LINEAR POWER™ is a trademark of Linear Power, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Linear Power LP50
Summary of Contents for Linear Power LP50
- Page 1 These high performance amplifiers deliver what you ask for: smooth, effortless listening, or hard driving power to get you down the road. LINEAR POWER™ has been a name recognized since 1975 as a product delivering high quality and audio excellence. Now, you have the results of that experience.
- Page 2 LP50 IS 2-ohm stereo or 4- © ohm mono. Unlike most car audio amplifiers, the LP50 is designed for © maximum power output into BOTH 4-ohm and 2-ohm stereo loads, as well as 4- ohm mono.
- Page 3 © 2008 Linear Power, Inc. - ALL RIGHTS RESERVED LINEAR POWER™ is a trademark of Linear Power, Inc.
- Page 4 3 4 5 5 L A N E L L L A N E, P E A R L, M S 3 9 2 0 8 (6 0 1) 9 3 2 – 8 4 7 7 © 2008 Linear Power, Inc. - ALL RIGHTS RESERVED...
- Page 5 3 4 5 5 L A N E L L L A N E, P E A R L, M S 3 9 2 0 8 (6 0 1) 9 3 2 – 8 4 7 7 © 2008 Linear Power, Inc. - ALL RIGHTS RESERVED...
