Android Box

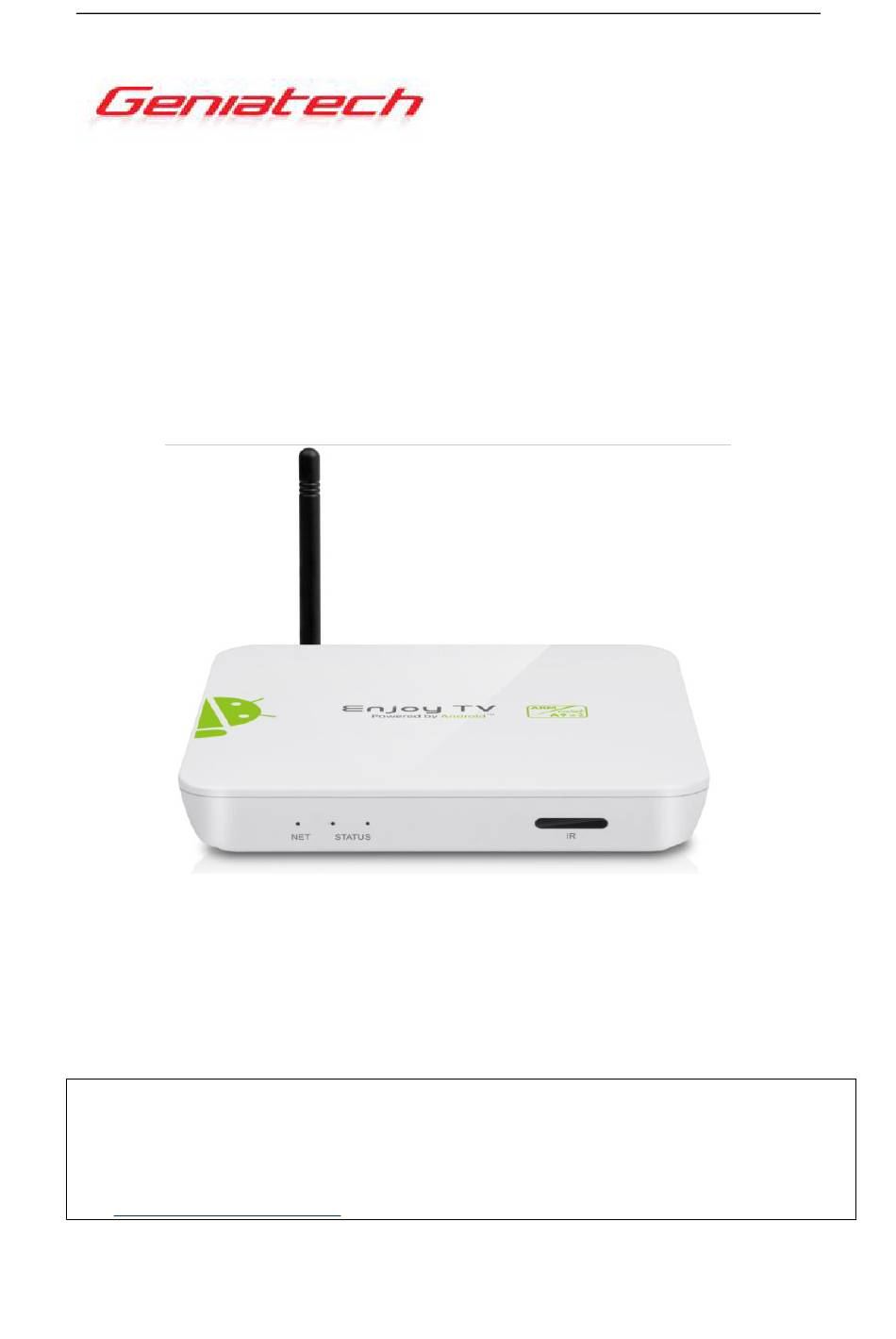

ENJOY TV QUAD CORE BOX
ATV585
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1
Advertisement
Table of Contents
Related Manuals for Geniatech ATV585
Summary of Contents for Geniatech ATV585
- Page 1 ENJOY TV QUAD CORE BOX ATV585 User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.
-
Page 2: Table Of Contents
Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Panel Introduction, P6 2.4 Remote Controller, P6 2.5 Setup Connection, P7 2.6 Display when Power Up, P7 3. -
Page 3: Safety Information
1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product . -
Page 4: Handling Cautions, P4
convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 5: Introduction
2. Introduction 2.1 Package Contents Enjoy TV Quad Core - ATV585 User’s Guide HDMI Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A 2.2 Product Features... -
Page 6: Panel Introduction, P6
2.3 Panel Introduction 2.4 Remote Controller ① Power ⑩ Home ② Mode ⑪ Background App ③ Mute ⑫ Menu ④ Upwards ⑬ Vol+ ⑤ Towards the left ⑭ Notification ⑥ Towards the right ⑮ Page Up ⑦ Downwards ⑯ Vol- ⑧... -
Page 7: Setup Connection, P7
2.5 Setup Connection Place ATV585 on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot during loading. When loading is finished, it will go to Home screen. -
Page 8: Settings
Or fail to connect and need reset password.Once build up the connection with a certain WiFi network successfully, ATV585 will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset. -
Page 9: Bluetooth, P9
3.2 Bluetooth 3.3 Ethernet... -
Page 10: Wireless & Networks, P10
3.3 Date usage Show data usage information. 3.4 Wireless & networks... - Page 11 3.5 Home 3.6 Sound 3.6.1 Volumes Increase or decrease sound volumes 3.6.2 Touch Sounds If enable Touch sound, sound will be heard while move remote controller. 3.6.3 Sound Input Devices 3.6.4 Sound Output Devices...
- Page 12 3.7 Display 3.7.1 Font size Change the font size of OSD 3.7.2 Cast screen 3.8 Storage Shows the storage used of the OS and SD card.
- Page 13 3.9 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data. 3.10 Permissions...
- Page 14 3.11 Location 3.12 Security...
-
Page 15: Language & Input, P15
3.13 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. 3.14 Reset Factory data rest: You can reset all the settings and apps to factory default. -
Page 16: Add An Account, P16
3.15 Add an account 3.16 Date & time... -
Page 17: Developer Options, P17
3.17 Developer options. 3.18 About device. -
Page 18: Apps Install & Uninstall
4. Apps Install & Uninstall On ATV585, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV585. -
Page 19: Firmware Update
5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com... -
Page 20: Trouble Shooting/Faq
6. Trouble Shooting/FAQ 6.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 6.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. . -
Page 21: Repairs
We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player. -
Page 22: Specification
8. Specification Quad Core ARM Cortex-A5 CPU @ 1.5GHz Mali 450 GPU @ 600MHz 1G DDR3 8G, EMMC Android 4.4 OS Optional DOLBY USB2.0 ×2 HDMI V1.4a DC Input 5V-2A SD Slot Max: 32G Video Output HDMI/CVBS Audio Output HDMI IR receiver WiFi IEEE 802.11 b/g/n, 2.4G(5.8G optional) -
Page 23: Trademark Notice
9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
