Android Box

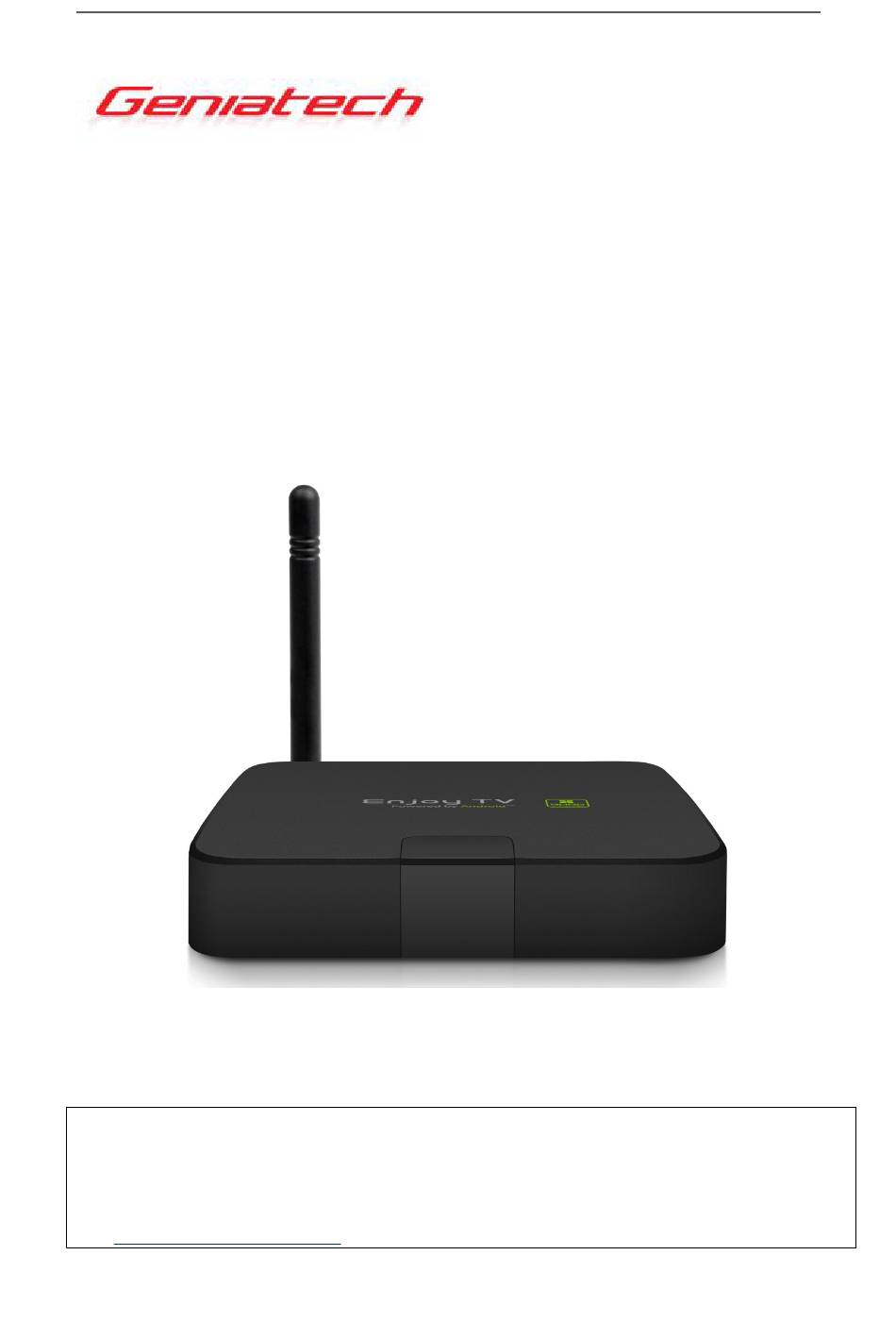

ENJOY TV QUAD CORE BOX
ATV586A
User's Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com
1
Advertisement
Table of Contents
Related Manuals for Geniatech ATV586A
Summary of Contents for Geniatech ATV586A
- Page 1 ENJOY TV QUAD CORE BOX ATV586A User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference.
-
Page 2: Table Of Contents
Contents 1. Safety Information, P4-5 1.1 Warning, P4 1.2 Precautions, P4 1.3 Handling Cautions, P5 2. Introduction, P6-8 2.1 Package Contents, P6 2.2 Product Features, P6 2.3 Panel Introduction, P7 2.4 Remote Controller, P7 2.5 Setup Connection, P8 2.6 Display when Power Up, P8 3. - Page 3 5. Apps Install & Uninstall , P25 6. Firmware Update , P26 7. Trouble Shooting/FAQ , P27 8. Repairs , P28 9. Specification , P29 9. Trademark Notice , P30...
-
Page 4: Safety Information
1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product . -
Page 5: Handling Cautions, P5
convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 6: Introduction
2. Introduction 2.1 Package Contents Enjoy TV Quad Core - ATV586A User’s Guide HDMI Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A 2.2 Product Features... -
Page 7: Panel Introduction, P7
2.3 Panel Introduction 2.4 Remote Controller ① Power ⑩ Home ② Mode ⑪ Background App ③ Mute ⑫ Menu ④ Upwards ⑬ Vol+ ⑤ Towards the left ⑭ Notification ⑥ Towards the right ⑮ Page Up ⑦ Downwards ⑯ Vol- ⑧... -
Page 8: Setup Connection, P8
2.5 Setup Connection Place ATV586Aon a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show a green robot during loading. When loading is finished, it will go to Home screen. -
Page 9: Settings
3. Settings Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options, the option selected will be highlighted and confirmed by pressing OK key. Same operation for text input if needed. Select icon then press OK key. Select icon and select icon to settings interface. -
Page 10: Ethernet, P9
Or fail to connect and need reset password.Once build up the connection with a certain WiFi network successfully, ATV586A will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset. -
Page 11: Wireless & Networks, P11
3.3 Date usage Show data usage information. 3.4 Wireless & networks... - Page 12 3.5 Home 3.6 Sound 3.6.1 Volumes Increase or decrease sound volumes 3.6.2 Touch Sounds If enable Touch sound, sound will be heard while move remote controller. 3.6.3 Sound Input Devices 3.6.4 Sound Output Devices...
- Page 13 3.7 Display 3.7.1 Font size Change the font size of OSD 3.7.2 Cast screen 3.8 Storage Shows the storage used of the OS and SD card.
- Page 14 3.9 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data. 3.10 Permissions...
- Page 15 3.11 Location 3.12 Security...
-
Page 16: Language & Input, P16
3.13 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. 3.14 Reset... -
Page 17: Add An Account, P17
Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted. 3.15 Add an account 3.16 Date &... -
Page 18: Developer Options, P18
3.17 Developer options. 3.18 About device. -
Page 19: Dtv Player
After you have chosen the correct Area, you can select Auto Scan to start scanning for channels. ATV586A will scan the whole frequency range for TV channels, and will list out all found channels. You can exit anytime during the scanning, the found channels will be... - Page 20 4.1.2. Manual Scan TV Channels There are 2 mode in manual scan: By Channel or By Frequency In By Channel mode, you can select the Band (VHF or UHF) and the frequency of the channel. Then select search to start the scanning. In By Frequency mode, you can enter a specific frequency and bandwidth.
-
Page 21: Dtv Player Settings, P21-24
You can press Left or Right button to bring up the channel sub menu, from the menu you can change the display size, access EPG, change audio language, change subtitle, change TTX region and start recording. If you want to return to the setup menu, just press the menu button on the remote control. - Page 22 The default password is 0000. You can change the password in system menu. 4.3.2. EPG In EPG option, you can check TV shows schedule for the coming 7 days, and also can setup schedule recording. To setup schedule recording just select a time range and click OK button, a list of record option will appear and just select the one you desire.
- Page 23 the file or format the storage device. Please take note, all data will be lost if you select to format the storage device. 4.3.4. Timeshift Select Timeshift will start timeshifting TV channel, you can pause, play, rewind, fast forward the recorded timeshift. The length of timeshift can be setup in PVR Configure.
- Page 24 TTX Region: Set the TTX language 4.3.6. Option Under Option menu, there are: Picture Size: Set the default display size Subtitle Language: Set the Subtitle Language Audio Language: Set the Audio Language Blackout Policy: Turns on/off Blackout Policy...
- Page 25 5. Apps Install & Uninstall On ATV586A, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV586A.
- Page 26 6. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...
- Page 27 7. Trouble Shooting/FAQ 7.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 7.2 USB Content cannot be read . The format of USB storage device is not supported . The supported memory size is 32G maximum. .
- Page 28 We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player.
- Page 29 9. Specification Quad Core ARM Cortex-A5 CPU @ 1.5GHz Mali 450 GPU @ 600MHz 1G DDR3 8G, EMMC Android 4.4 OS TUNER ATSC digital signal receiver Optional DOLBY USB2.0 ×2 HDMI V1.4a DC Input 5V-2A SD Slot Max: 32G Video Output HDMI/CVBS Audio Output HDMI...
- Page 30 9. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
