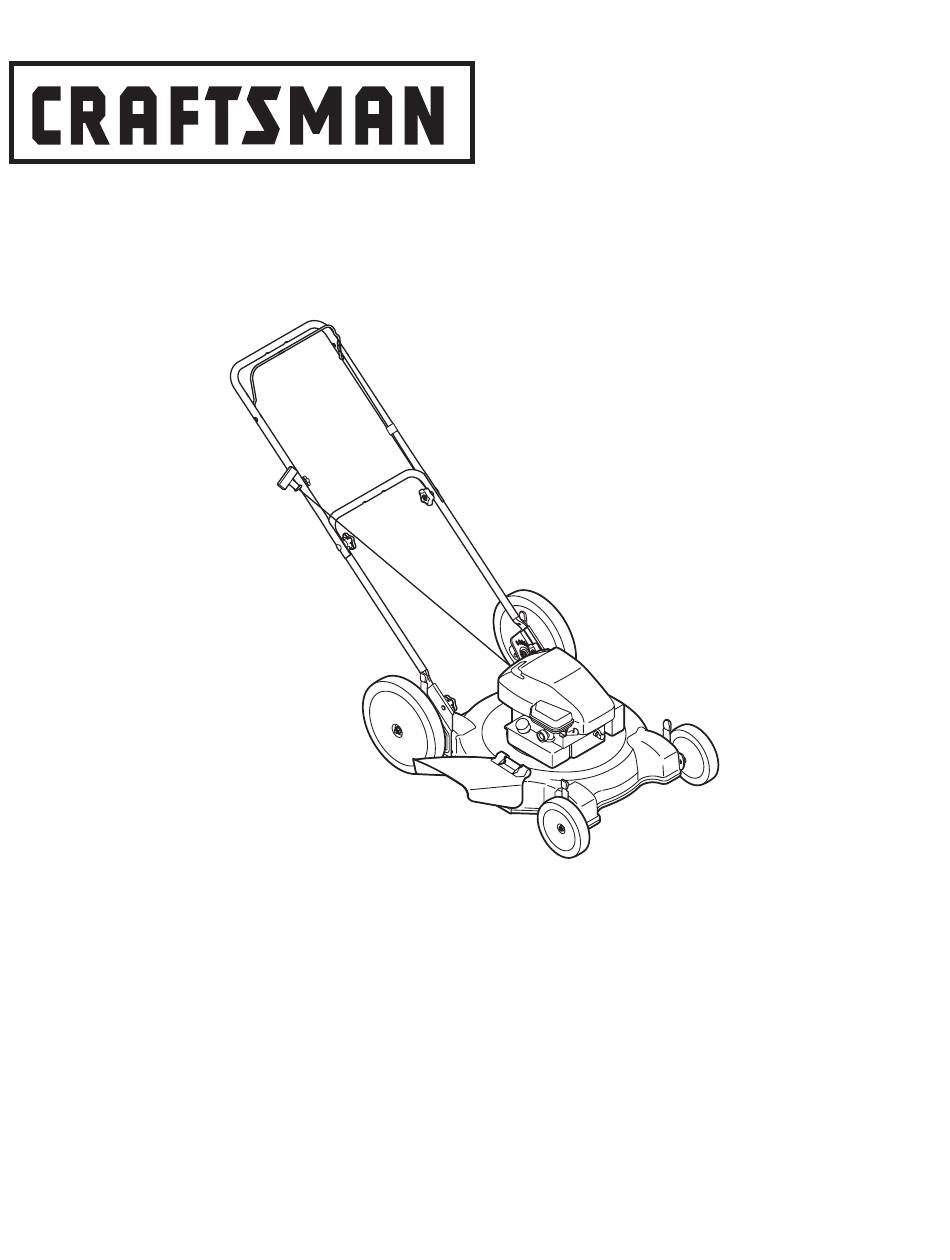

Operator's Manual
22" Lawnmower
Model No. C459-36023
CAUTION: Before using this
product, read this manual
and follow all safety rules
and operating instructions.
Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3
®
Visit our web: sears.ca
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
FORM NO. 769-05896
2/2/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Craftsman C459-36023
Summary of Contents for Craftsman C459-36023
- Page 1 Operator’s Manual ® 22” Lawnmower Model No. C459-36023 • SAFETY • ASSEMBLY • OPERATION • MAINTENANCE • PARTS LIST CAUTION: Before using this product, read this manual and follow all safety rules and operating instructions. Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3 FORM NO.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safe Operation Practices ..... 3 Safety Symbols......6 Assembly . -
Page 3: Safe Operation Practices
SAFETY INSTRUCTIONS WArNING DANGer This machine was built to be operated according to the safe opera- This symbol points out important safety instructions which, if not tion practices in this manual. As with any type of power equipment, followed, could endanger the personal safety and/or property of carelessness or error on the part of the operator can result in serious yourself and others. - Page 4 SAFETY INSTRUCTIONS • The blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inopera- • Mow across the face of slopes; never up and down. Exercise tive and may result in personal injury through contact with the extreme caution when changing direction on slopes.
- Page 5 SAFETY INSTRUCTIONS • Extinguish all cigarettes, cigars, pipes and other sources • Do not change the engine’s governor setting or over-speed the of ignition. engine. The governor controls the maximum safe operating speed of the engine. • Never fuel machine indoors because flammable vapors will accumulate in the area.
-
Page 6: Safety Symbols
SAFETY INSTRUCTIONS SAfeTY SYMBOlS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR’S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate DANGER —... - Page 7 SLOPE GUIDE...
-
Page 8: Assembly
ASSEMBLY IMPORTANT: This unit is shipped WITHOUT GASOLINE or OIL. After assembly, service engine with gasoline and oil as instructed in the separate engine manual packed with your unit. NOTE: Reference to right, left, rear and front of the lawn mower is in relation to the operating position. - Page 9 ASSEMBLY 5. Rope guide Setup as follows, see Figure 5: a. Hold the blade control against the upper handle. Position A. b. Slowly pull starter rope out of engine. Position B. c. Slip starter rope into the rope guide. Tighten rope guide wing nut.
-
Page 10: Operation
OPERATION Blade Contol Recoil Starter Cutting Height Adjustment Lever (one at each wheel) Mulching Baffle Side Discharge Deflector Figure 8 BlADe CONTrOl BefOre STArTING The blade control is attached to the upper handle of the mower. 1. Service the engine with gasoline and oil as instructed in the Depress and squeeze it against the upper handle to operate the unit. - Page 11 OPERATION 3. Grasp the starter handle as shown and pull slowly until resistance is felt, then pull rapidly to start engine and avoid kickback. Return it slowly to the rope guide. warning Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go.
-
Page 12: Service And Maintenance
SERVICE AND MAINTENANCE WARNING Before performing any type of maintenance/service, disengage all controls and stop the engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting. GENERAL RECOMMENDATIONS •... -
Page 13: Off-Season Storage
SERVICE AND MAINTENANCE BlADe CAre WArNING When removing the cutting blade for sharpening or replacement, protect your hands with a pair of heavy gloves or use a heavy rag to hold the blade. Periodically inspect the blade adapter for cracks, especially if you strike a foreign object. -
Page 14: Troubleshooting
TROUBLESHOOTING problem Cause remedy Engine fails to start Blade control disengaged. Engage blade control. Spark plug boot disconnected. Connect wire to spark boot. Fuel tank empty or stale fuel. Fill tank with clean, fresh gasoline. Faulty spark plug. Clean, adjust gap, or replace. Engine flooded. -
Page 15: Warranty
WARRANTY STATEMENT General: Craftsman products are warranted to be free from defects in materials or workmanship for a specific time period as set-out below (the “Warranty Period”). Warranties extend to the original purchaser of a Craftsman product only. Purchases made through an online auction or through any website other than www.sears.ca are excluded. -
Page 16: Parts List
PARTS LIST... - Page 17 PARTS LIST PART DE SCRIP TION 710-1205 Rope Guide Bolt 720-0279 Knob - ERS Guide 1/4-20 747-1161A Blade Con trol Han dle 749-1092A Up per Han dle 746-1130 Con trol Ca ble 40" Lg. 749-04037 Lower Han dle 725-0157 Ca ble Tie 687-02048A Deck As sem bly 22"...
- Page 18 Get it fixed, at your home or ours! Your Home For troubleshooting, product manuals and home solutions advice: www.managemyhome.com For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
