Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure
correct use.
After reading, be sure to store this manual in a safe place should it be
needed for future reference.
✳
The case has different features depending on the model.
Details of the case features are not contained in this manual, see
" http://www.citizenwatch.jp/support/default.htm ".
To determine the movement number

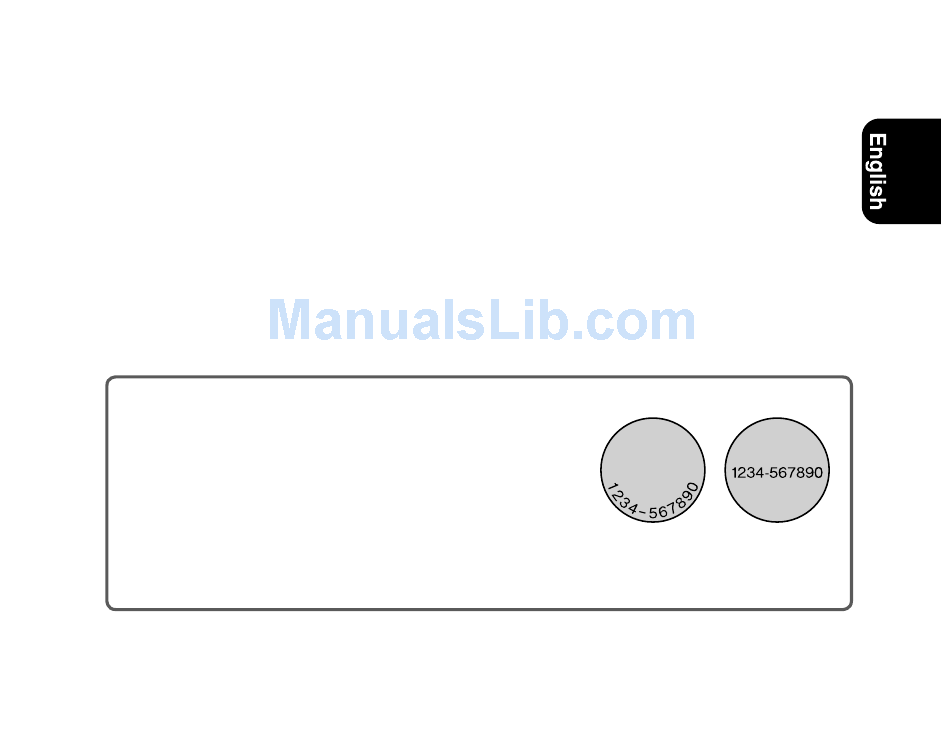

Your watch features a case number engraved on the
case back (refer to figure to the right).
The first four characters of the case number
represent the movement caliber number of the
watch.
In the example on the right, "1234" is the movement
number.
Engraving position example
The engraving position may differ
depending on watch model.
1
