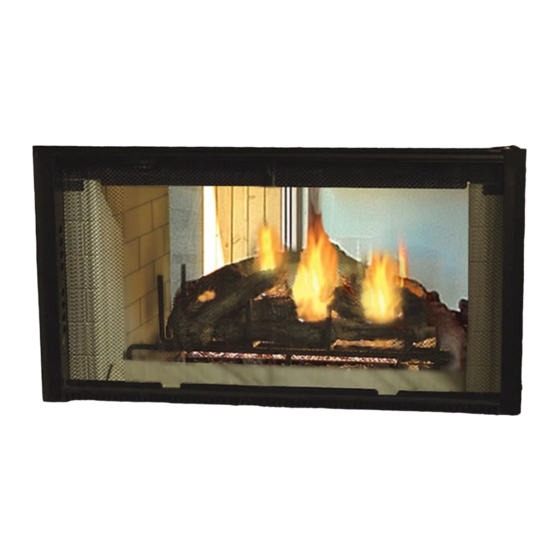

Majestic DSR36 Owner's Manual
Hide thumbs Also See for DSR36:

Advertisement

Quick Links

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE:
DO NOT discard this manual!
Model(s):
WOODBURNING FIREPLACE
Installation and service of this appliance should be performed by
Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020
Owner's Manual
Operation and Care
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• DO NOT overfire. Overfiring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specified. Failure to comply may
cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSR36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Majestic DSR36

  • Page 1 Installation and service of this appliance should be performed by WARNING Fire Risk. For use with solid wood fuel only. Other fuels may overfire and generate poisonous gases (i.e. carbon monoxide). Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 2: Table Of Contents

    4. Storing Wood 5. Burning Process ► 6. Creosote Formation and Need For Removal ► 7. Processed Solid Fuel Firelogs ► D. First Fire E. Lighting Instructions Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 3: Welcome

    AVERTISSEMT:RISQUE DE DOMMAGE PARINCENDIE, REMPLACEZ LA GRILLE AVEC HEARTH & HOME TECHNOLOGIES IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING CONTACT: HEARTH & HOME TECHNOLOGIES, 7571 215th Street West, Lakeville, MN 55044. P.N. 4021-954E Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 4: Limited Lifetime Warranty

    (engine, inner cover,access cover and fireback) None 1 Year All replacement parts beyond warranty period See conditions, exclusions and limitations on the next page Page 1 of 2 4021-645K 1/20 Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 5 OTHER THAN THE WARRANTY SPECIFICED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645K 1/20 Page 2 of 2 Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 6: Product Specific And General Information

    National Fuel Gas Code Z223.1, Latest edition. WARNING! Do Not operate an unvented gas log set in this fireplace with the chimney removed. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 7: Important Safety And Operating Information

    Mantel or Trim mation go to: www.P65Warnings.ca.gov. 12 in. (305 mm) Front of Fireplace Clear Space Sides of Fireplace (from the FP opening) Figure 3.1 Clear Space Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 8: Grate

    If doors are left partly open, gas and flame may be drawn out of the fireplace opening. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 9: General Operating Parts

    Damper Handle Air Kit close Handle open close (out) (in) Figure 3.2 General Operating Parts Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 10: Flue Damper

    CAUTION! Outside air control handle may be warm. Adjust before lighting fire. BOTH SIDES CLOSED PARTLY CLOSED/OPENED CORRECT INCORRECT Figure 3.3 Operating Positions of Bi-fold Doors Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 11: Fuel

    Soft woods Hard woods • Douglas Fir • Oak • Pine • Maple • Spruce • Apple • Cedar • Birch • Poplar • Aspen • Alder Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 12: Seasoning

    • all labels have been removed ► Note: Homeowners are encouraged to provide smoke and carbon monoxide alarms in accordance with the authority having jurisdiction. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 13: Lighting Instructions

    • use gasoline, lantern fuel, kerosene, charcoal lighter fluid or similar liquids to start or “freshen up” a fire in this fireplace. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 14: Maintenance And Service

    In the event of a chimney fire, Hearth & Home Tech- nologies recommends replacement of the chimney and inspection of the adjacent structure to the provisions of NFPA Level III inspection criteria. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 15: Creosote (Chimney) Cleaning

    TCT375 TR344/TR342 DTO/DTS Series Square Square Terra Cotta Round Termination Cap Termination Cap Termination Caps Termination Cap Termination Cap Figure 4.1 Chimney & Termination Cap Cleaning Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 16: Grate

    F. Refractory Frequency: As necessary Homeowner • Inspect condition of brick. Replace if crumbly or otherwise deteriorated, or if cracks exceed 1/4 in. (6 mm). Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 17: Troubleshooting

    Add glass doors to slow down air flow. Overdrafting Check for correct vent height; too much vertical height creates overdrafting. Check location of vent termination (refer to chimney assembly section). Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 18: Faqs

    Contact your dealer for additional informa- and corrective measures must be taken. tion regarding operation and troubleshoot- ing. Visit www.majesticproducts.com to find a dealer. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 19 Air register from furnace near fireplace? Doors opening and closing? Outside air Window closed Combustion closed? for start-up? air control Figure 5.1 Factory-built Fireplaces: Troubleshooting Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 20: Reference Materials

    Front Face (Bottom) SRV4012-109BK Column (Right or Left) SRV4012-102BK Front Face (Top) SRV20400BK Drywall Flange Qty 2 req 20429 Additional service parts on following page. 4/20 Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 21 Refractory Standoff Qty 2 req 13327 Smoke Deflector Qty 2 req 20603 Strip Protector Qty 4 req SRV18320 Touch-Up Paint 71479 Owner’s Manual 4012-131 Installation Manual 4012-130 Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 22: Accessories

    B. Accessories Doors DM1036 Bi-fold glass doors with black trim DM1036S Bi-fold glass doors with stainless steel trim Gas Log Sets Gas Log Lighters Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 23 This page intentionally left blank. Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
  • Page 24: Contact Information

    7216645, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending. Printed in U.S.A. - Copyright 2012 Majestic Designer Series • DSR36 Owners Manual • 4012-131 • Rev G • 05/2020...
