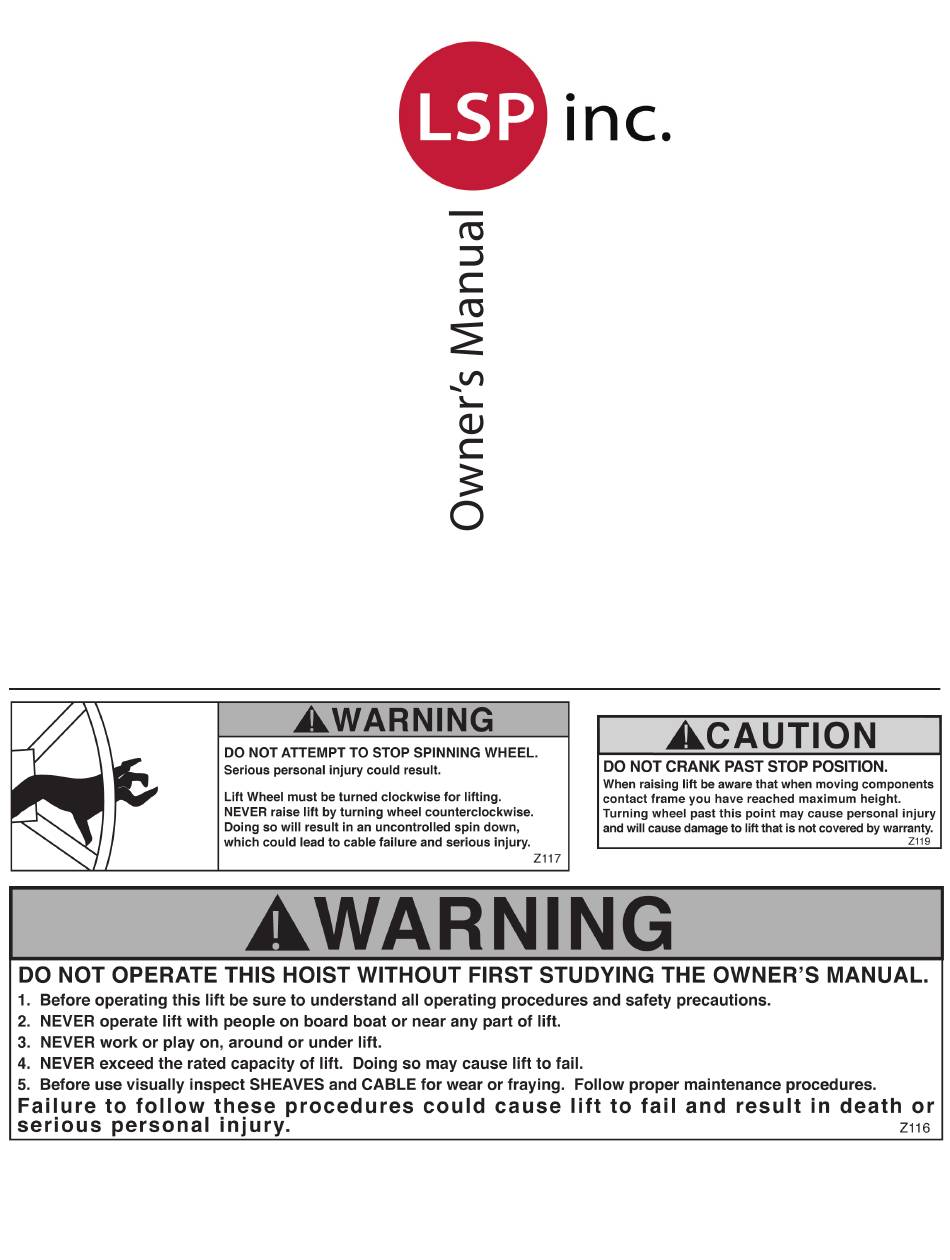

- Page 1 LSC850D 800 lb, 50" Double Beam Jet Lift READ CAREFULLY - FAILURE TO FOLLOW INSTRUCTIONS AND SAFETY RULES MAY RESULT IN SERIOUS INJURY Manufacturers of Lakeshore Products 855 East Chicago Road, Quincy, MI 49082 www.lakeshoreproducts.com • tel: 517.639.3815 • fax: 517.639.4576...
- Page 2 1/2" nylon lock nuts Place a washer under the head of each bolt, under the nut, and between the H-unit and the mainframe. The bolts must be loose enough to allow the H-units to pivot. page 2 LSC850D Owner's Manual...
- Page 3 To keep the wheel from coming off the shaft fasten using: – winch spring – 1/2" jam lock nut Tighten the nut just until 1 or 2 threads of the shaft are visible while prevent- ing the winch shaft from turning. page 3 LSC850D Owner's Manual...
- Page 4 Adjust the bunk height just high enough so your craft's bottom will not hit the cradle. Adjust the bunk angle to conform to the boat bottom and tighten the bolts so that the bunks no longer move. The installation is now complete. page 4 LSC850D Owner's Manual...
- Page 5 850D bolt package with steps 2-8 bunk adjustment channels channel backer plates 1200# DL winch and booklet cable with loop in one end 1 1/2" x 3" caps 1 1/2" x 2" caps page 5 LSC850D Owner's Manual...
- Page 6 LSC850D 800 lb, 50" Double Beam, 28"Lift Height. PARTS LIST REF. PART NO. PART NAME QTY. 20552 Wheel Knob 20498 Winch Hardware LS1102 25" JL Wheel BOLT LIST 20418D Dutton-Lainson DLB-1200 Winch REF. PART NO. PART NAME QTY. CAPS1530 1 1/2" x 3" Cap...
