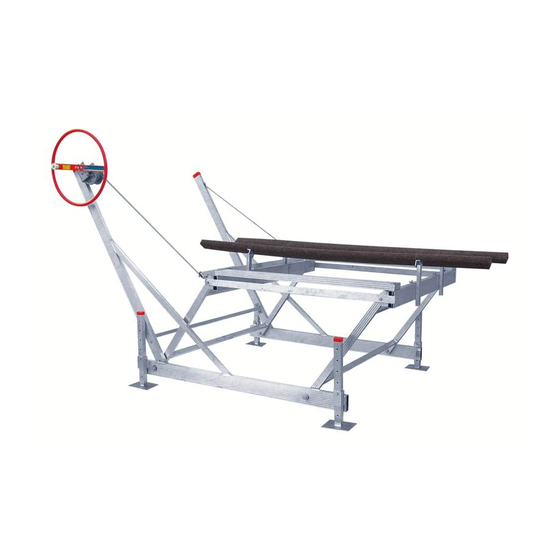

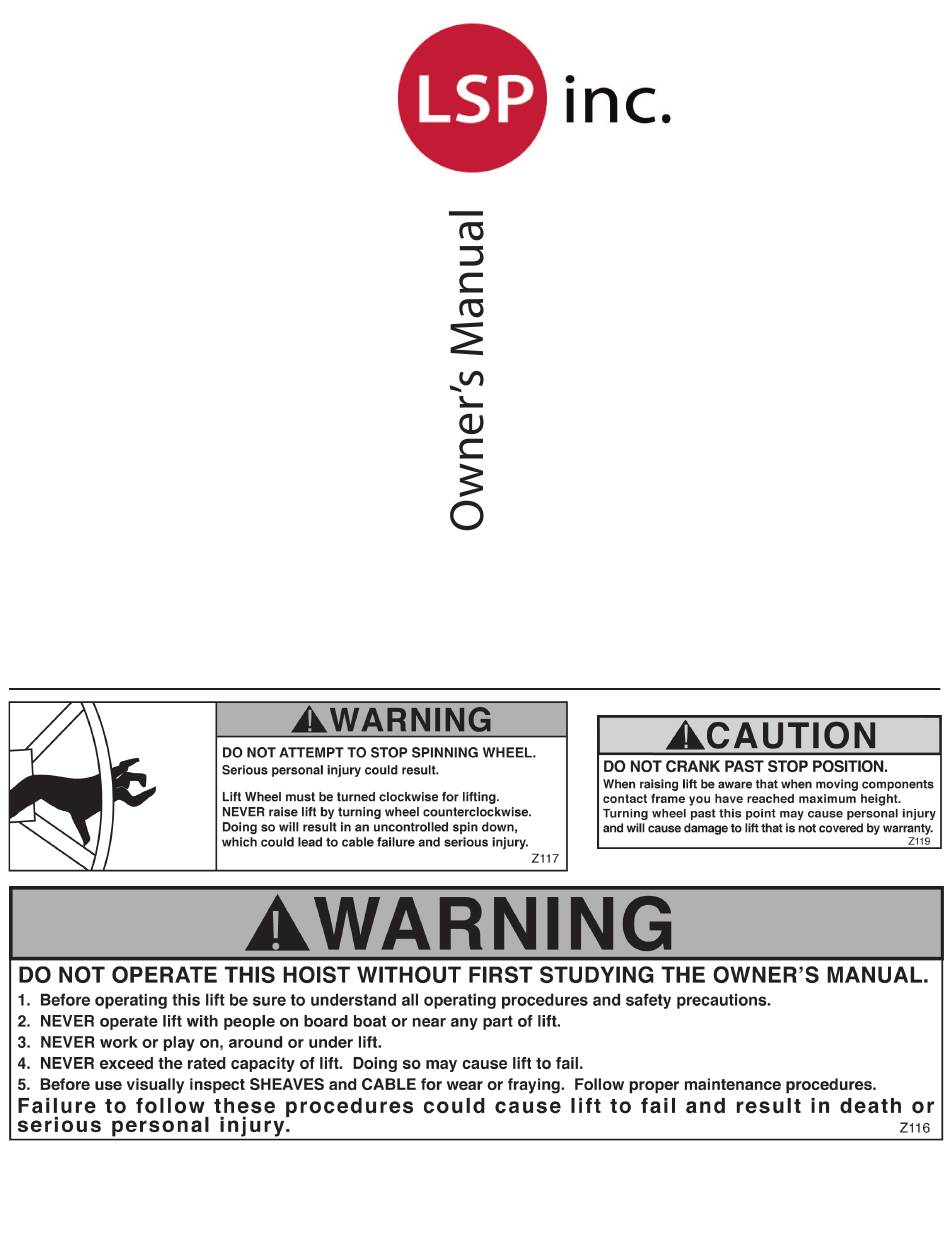

- Page 1 LSC1264 1200 lb, 64" Beam Jet Lift READ CAREFULLY - FAILURE TO FOLLOW INSTRUCTIONS AND SAFETY RULES MAY RESULT IN SERIOUS INJURY Manufacturers of Lakeshore Products 855 East Chicago Road, Quincy, MI 49082 www.lakeshoreproducts.com • tel: 517.639.3815 • fax: 517.639.4576...
- Page 2 1/2" nylon lock nuts Place a washer under the head of each bolt, under the nut, and between the H-unit and the mainframe. The bolts must be loose enough to allow the H-units to pivot. page 2 LSC1264 Owner's Manual...
- Page 3 To keep the wheel from coming off the shaft fasten using: warranty. – winch spring – 1/2" jam lock nut Tighten the nut just until 1 or 2 threads of the shaft are visible while prevent- ing the winch shaft from turning. page 3 LSC1264 Owner's Manual...
- Page 4 The legs can be removed to lower the lift if the water is very shallow. Adjust the bunk height just high enough so your craft's bottom will not hit the cradle. The installation is now complete. page 4 LSC1264 Owner's Manual...
- Page 5 1-8 cradle end caps bunk adjustment channels channel backer plates 1500# DL winch and booklet cable with loop in one end 1 1/2" x 3" plastisol caps 1 1/2" x 2" plastisol caps page 5 LSC1264 Owner's Manual...
- Page 6 LSC1264 1200 lb, 64" Beam, 35" Lift Height. PARTS LIST BOLT LIST ref. part no. part name qty. ref. part no. part name qty. 20552 Wheel Knob X304 5/16 x 1 Hex Bolt 20498 Winch Hardware X310 5/16 x 2 1/2 Hex Bolt LS1102 25"...
