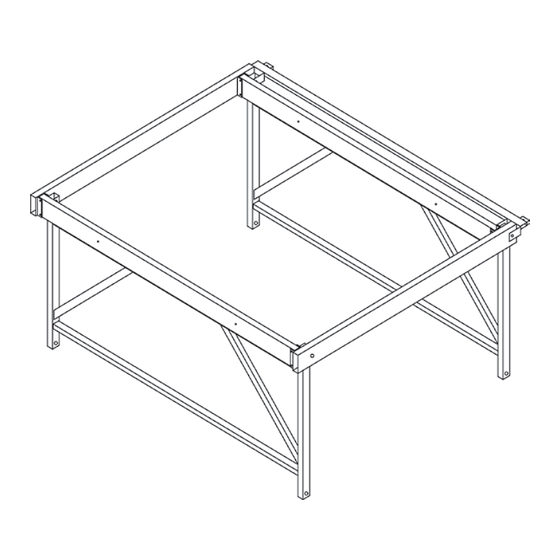

- Page 1 LSC1576 1500 lb, 76" Beam Jet Lift READ CAREFULLY - FAILURE TO FOLLOW INSTRUCTIONS AND SAFETY RULES MAY RESULT IN SERIOUS INJURY Manufacturers of Lakeshore Products 855 East Chicago Road, Quincy, MI 49082 www.lakeshoreproducts.com • tel: 517.639.3815 • fax: 517.639.4576...
- Page 2 1/2" nylon lock nuts Place a washer under the head of each bolt, under the nut, and between the H-unit and the mainframe. The bolts must be loose enough to allow the H-units to pivot. page 2 LSC1576 Owner's Manual...
- Page 3 This will void your – winch spring warranty. – 1/2" jam lock nut Tighten the nut just until 1 or 2 threads of the shaft are visible while preventing the winch shaft from turning. page 3 LSC1576 Owner's Manual...
- Page 4 The legs can be removed to lower the lift if the water is very shallow. Adjust the bunk height just high enough so your craft's bottom will not hit the cradle. The installation is now complete. page 4 LSC1576 Owner's Manual...
- Page 5 1576 bolt package with steps 1-8 bunk adjustment channels bunk backer plates 2500# DL winch and booklet cable with loop in one end 1 1/2" x 4 1/2" caps 1 1/2" x 2" caps page 5 LSC1576 Owner's Manual...
- Page 6 1500 lb, 76" Beam, 35" Lift Height. PARTS LIST ref. part no. part name qty. 20552 Wheel Knob 20498 Winch Hardware LS1102 25" JL Wheel LSC1576 BOLT PACKAGE 20933D Dutton-Lainson part no. part name qty. part no. part name qty. DLB-2500 Winch 20939...
