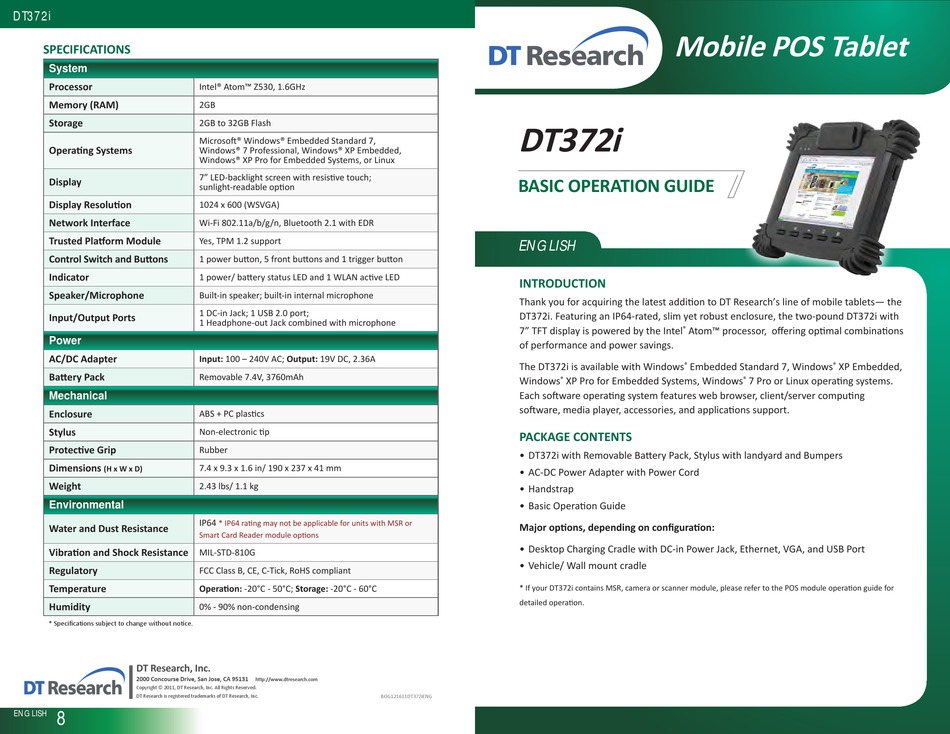

DT372i
SPECIFICATIONS
System
Processor
Memory (RAM)
Storage
Operating Systems
Display
Display Resolution
Network Interface
Trusted Platform Module
Control Switch and Buttons
Indicator
Speaker/Microphone
Input/Output Ports
Power
AC/DC Adapter
Battery Pack
Mechanical
Enclosure
Stylus
Protective Grip
Dimensions
(H x W x D)
Weight
Environmental
Water and Dust Resistance
Vibration and Shock Resistance
Regulatory
Temperature
Humidity
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2011, DT Research, Inc. All Rights Reserved.
DT Research is registered trademarks of DT Research, Inc.
8
ENGLISH
signage dtri com
Intel® Atom™ Z530, 1.6GHz
2GB
2GB to 32GB Flash
Microsoft® Windows® Embedded Standard 7,
Windows® 7 Professional, Windows® XP Embedded,
Windows® XP Pro for Embedded Systems, or Linux
7" LED-backlight screen with resistive touch;
sunlight-readable option
1024 x 600 (WSVGA)
Wi-Fi 802.11a/b/g/n, Bluetooth 2.1 with EDR
Yes, TPM 1.2 support
1 power button, 5 front buttons and 1 trigger button
1 power/ battery status LED and 1 WLAN active LED
Built-in speaker; built-in internal microphone
1 DC-in Jack; 1 USB 2.0 port;
1 Headphone-out Jack combined with microphone
Input: 100 – 240V AC; Output: 19V DC, 2.36A
Removable 7.4V, 3760mAh
ABS + PC plastics
Non-electronic tip
Rubber
7.4 x 9.3 x 1.6 in/ 190 x 237 x 41 mm
2.43 lbs/ 1.1 kg
IP64
* IP64 rating may not be applicable for units with MSR or
Smart Card Reader module options
MIL-STD-810G
FCC Class B, CE, C-Tick, RoHS compliant
Operation: -20°C - 50°C; Storage: -20°C - 60°C
0% - 90% non-condensing
http://www.dtresearch.com
DT372i
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT Research's line of mobile tablets— the
DT372i. Featuring an IP64-rated, slim yet robust enclosure, the two-pound DT372i with
7" TFT display is powered by the Intel
of performance and power savings.
The DT372i is available with Windows
Windows
Each software operating system features web browser, client/server computing
software, media player, accessories, and applications support.
PACKAGE CONTENTS
•
DT372i with Removable Battery Pack, Stylus with landyard and Bumpers
•
AC-DC Power Adapter with Power Cord
•
Handstrap
•
Basic Operation Guide
Major options, depending on configuration:
•
Desktop Charging Cradle with DC-in Power Jack, Ethernet, VGA, and USB Port
•
Vehicle/ Wall mount cradle
* If your DT372i contains MSR, camera or scanner module, please refer to the POS module operation guide for
detailed operation.
BOG121611DT372iENG
Mobile POS Tablet
Atom™ processor, offering optimal combinations
®
Embedded Standard 7, Windows
®
XP Pro for Embedded Systems, Windows
®
XP Embedded,
®
7 Pro or Linux operating systems.
®
