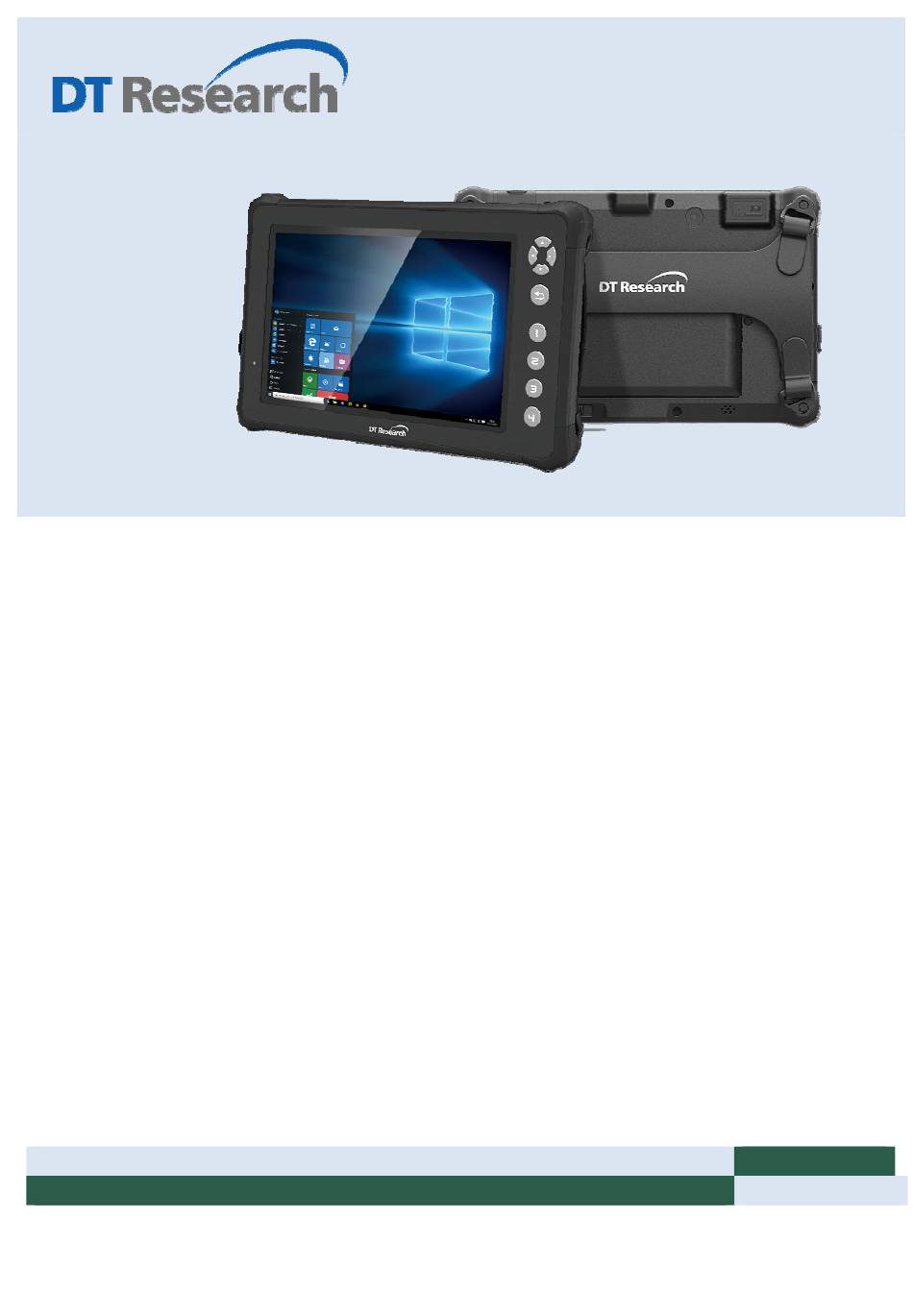

BASIC OPERATION GUIDE
DT370CR
INTRODUCTION

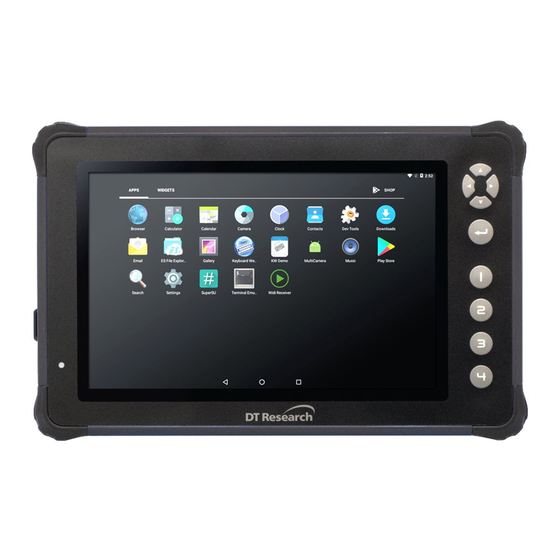

Thank you for acquiring the DT370CR, part of DT Research's line of tablets. Featuring a slim yet robust
enclosure, the DT370CR with 7" TFT display is powered by the Intel® Atom™ quad‐core or Qualcomm
octa‐core processor, offering optimal combinations of performance and power savings. The DT370CR is
available with Microsoft® Windows® or Android operating system. The software operating system features
web browser, client/ server computing software, media player, accessories, and applications support.
PACKAGE CONTENTS
• One DT370CR with Battery Pack and Handstrap
• AC‐DC Power Adapter with Power Cord
• Basic Operation Guide
*If your DT370CR contains camera or barcode scanner, please refer to the Tablet Modules Basic Operation
Guide for detailed operation.
DT370CR:
Mobile Tablet
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DT Research DT370CR
Summary of Contents for DT Research DT370CR
- Page 1 BASIC OPERATION GUIDE DT370CR INTRODUCTION Thank you for acquiring the DT370CR, part of DT Research’s line of tablets. Featuring a slim yet robust enclosure, the DT370CR with 7” TFT display is powered by the Intel® Atom™ quad‐core or Qualcomm octa‐core processor, offering optimal combinations of performance and power savings. The DT370CR is available with Microsoft® Windows® or Android operating system. The software operating system features web browser, client/ server computing software, media player, accessories, and applications support. PACKAGE CONTENTS • One DT370CR with Battery Pack and Handstrap • AC‐DC Power Adapter with Power Cord • Basic Operation Guide *If your DT370CR contains camera or barcode scanner, please refer to the Tablet Modules Basic Operation Guide for detailed operation. DT370CR: ...
- Page 2 Input/ Output Ports Button Functions A Headphone Jack BUTTON ACTION B USB Port 1 Power Button Programmable ...
- Page 3 • Blue indicates the battery is 25% to 100% charged • Blinking blue indicates the battery is charging • Orange indicates that the battery is between 11% to 25% • Blinking Orange indicates that the battery is below 10% PRECAUTIONS • Always exercise care when operating and handling the DT370CR. • Do NOT apply excessive pressure to the display screen. • Avoid prolonged exposure of the display panel to any strong heat source. • Wherever possible, the DT370CR should face away from direct light to reduce glare. • If the AC‐DC power adapter is used to recharge or power the tablet, do NOT use any AC‐DC adapter other than the one provided or acquired from the manufacturer or its partners. • In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the DT370CR and disconnect all power sources. Report the problem to your device provider immediately. • Never attempt to disassemble the DT370CR, as this will void the warranty. BASIC FEATURES The DT370CR wireless tablet integrates a bright and multi‐touch display, one USB port, and embedded networking elements such as wireless LAN and Bluetooth. The DT370CR is complemented by a suite of accessories, including battery expansion, and charging cradles, for a comprehensive user experience. A DT370CR typically integrates an 802.11ac wireless LAN (WLAN) adapter that may connect to other wireless devices or access points. If your DT370CR does not come with such a network adapter, please consult your ...
- Page 4 OPERATION Powering ON and OFF To activate the DT370CR, push and quickly release the Power Button. The display will come on in a few seconds. To put the DT370CR in Standby mode, push and quickly release the Power Button. To turn the DT370CR off for extended storage, power off safely using any software function that “shuts down computer” provided in the software operating system. NOTE: The battery pack shipped with your tablet may be low in power—please use the AC‐DC adapter with the DT370CR when setting up for the first time to fully charge the battery pack, or use the optional battery charger kit. ...
- Page 5 If the power up (from Standby mode or otherwise) is successful, the appropriate interface will be displayed after a launch sequence of several seconds. The wireless LAN connection may take 10‐15 seconds to be established. Configuring the Mobile Tablet The DT370CR may be configured using the utilities and methods dictated by the software operating system. The DT370CR should be configurable for various properties such as user profiles, network features, and several system elements. Wireless Networking Wireless LAN The DT370CR is often delivered with an embedded (user‐inaccessible) 802.11ac WLAN adapter equipped with a hidden custom antenna. • Through the support of typical WLAN adapters, the DT370CR should be able to detect all 802.11 access points in the vicinity for you to select the access point of your choice for connection. • The SSID and WEP/WPA/WPA2 (if enabled) parameters on the DT370CR and the access points have to match. The SSID is case‐sensitive and it is recommended that you enable WEP/WPA/WPA2 encryption (or advanced alternatives) for secure access. • When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your networking equipment literature to properly configure associated settings such as Authentication mode, etc. • Refer to the access point operating manuals for setting up the 802.11 access points. Bluetooth The Bluetooth configuration application is enabled from the System Tray or from the Windows Mobility Center. Follow the instructions and options provided within the application to configure and invoke Bluetooth connectivity with the corresponding peripherals.
- Page 6 USING THE MOBILE TABLET Peripherals Support Through its USB port, the DT370CR supports a wide range of USB‐based peripherals. These peripherals are applicable for software installation, applications storage, data storage, and system software recovery and updates. For More Support Users can download the Tablet Modules Basic Operation Guides from the DT Research website. To Hold the Tablet Left hand: grip the left back side of the tablet with your left hand four index fingers, with thumb resting on the top of the back side of the tablet and palm securely against the back. Right hand: grip the right back side of the tablet with your right hand four index fingers, with thumb resting on the top of the back side of the tablet and palm securely against the back. ...
- Page 7 Specifications: DT370CR Item System CPU Intel® Atom™ Quad Core, 1.44GHz (up to 1.92GHz) RAM 4GB Storage 128GB flash Operating System Microsoft® Windows® 10 IoT Enterprise Display 7” LED‐backlight, high‐brightness (800 nits) screen with capacitive touch, outdoor viewable Display Resolution 1280 x 800 Network Interface Wi‐Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE Control Switch and 1 power button, 1 trigger button, 4 programmable buttons, 1 4‐way tactile button Buttons Fan/ Fanless Fanless Speaker Built‐in speaker I/O Ports USB port 1 (USB 3.0) Audio Jack 1 (3.5mm) DC‐in 1 SD Slot 1 micro SD card slot Mechanical and Environmental AC/DC Adapter Input: 100 – 240V AC; Output: 12V DC, 5A Battery Pack ...
- Page 8 FCC that it does not exceed the exposure limit established by the FCC, Tests for each device are performed in positions and locations as required by the FCC. DT Research, Inc. 2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com Copyright © 2019, DT Research, Inc. All Rights Reserved.
