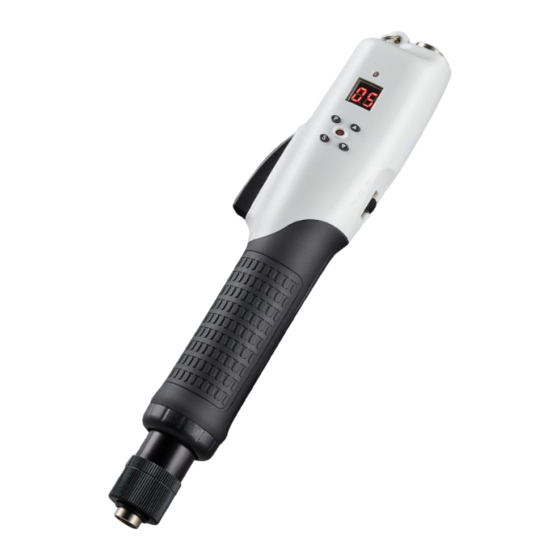

Kilews SKD-BE850L Operation And Maintenance Manual
Hide thumbs
Also See for SKD-BE850L:
- Operation and maintenance manual (22 pages) ,
- Operation and maintenance manual (15 pages) ,
- Operation and maintenance manual (15 pages)
Table of Contents
Advertisement
Quick Links
OPERATION AND MAINTENANCE MANUAL
Please scan the following QR code or download
the operation manual from KILEWS website
https://www.kilews.com.tw/tc/download-list.php
DC-TYPE Automatic Non-Carbon-Brush with Counter Series
KILEWS INDUSTRIAL CO., LTD.
http://www.kilews.com
SKD-BE830L
SKD-BE850L
SKD-BE830LF
SKD-BE830P
SKD-BE850P
SKD-BE830PF
Ver. 4.0
Y2F055Q-9E-001
Advertisement
Table of Contents
Related Manuals for Kilews SKD-BE850L
Summary of Contents for Kilews SKD-BE850L
- Page 1 OPERATION AND MAINTENANCE MANUAL SKD-BE830L SKD-BE850L SKD-BE830LF SKD-BE830P SKD-BE850P SKD-BE830PF Ver. 4.0 Please scan the following QR code or download the operation manual from KILEWS website https://www.kilews.com.tw/tc/download-list.php DC-TYPE Automatic Non-Carbon-Brush with Counter Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F055Q-9E-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Before changing bits from BE Series screwdriver, make sure the Forward / Reverse switch stays at the “OFF “position The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 7: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. -
Page 8: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 9: Specifications
No. 1．．． ．Bit use in dia 2.0~2.6mm screw No. 2．． ．．Bit use in dia 3.0~4.0mm screw SKD-BE830 series with BIT 2 Pcs. 2. Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3. Torque Fixing Ring (KC-6C) 1 Pcs. -
Page 10: Panel Specifications
Panel Specifications Name Function Three-Color To Show operating is OK, N.G or in the mode condition. Light Panel To show set value, set screws number and other value Push five seconds: to disable COUNTING FUNCTION Power Switch CLEAR Push three seconds: CLEAR SELECT Key Push three seconds: Enter the system Up Key... - Page 11 ※SELECT (P+UP Enter into Menu) Sr Key Function Set up Time Factory default Description Buzz Time/ Light Name and Value settings OKALL display mode _Y: Small loop；N: Big loop Y or N ※Auto learning mode “Ln” (S+P Enter into Menu) SL=SC=At=RC=SP=Ht=P Key Function Set up Time Factory default...
- Page 12 ※SKD-BE PCB has three kinds of signal, OKALL、NG、OK and GATE and is an open collector type. ※Output users need input voltage to drive the buzzer, the input voltage can’t be over DC24V 10mA. ※There is a new judgment which is the screwdriver will judge a N.G.in the case of there is a start signal and it is OFF before Lt. ※If operator controls these functions from PLC close short circuit will take 500ms at least.
- Page 13 ※LED light flash in simulate-learning.( means under simulate- learning condition), push P key to record value after simulate -learning. ) ※As no use of screwdrivers: UP and push P key can set up waiting time. If three seconds are set, but no starting signal after set time, it will buzz. ※Push R key to restore to factory settings.
-
Page 14: Torque Adjustment Operation
User could test the torque output of the screwdriver by torque meter periodically and then adjust it to meet user’s requirement for the compensation of the torque decay. 5. Please refer to KILEWS website http://www.kilews.com for the detail component list. Our company reserves the right to modify...
