OPERATION AND MAINTENANCE MANUAL
Attention!
BNK990/BNK9120L/P is belonging to high torque series. For safety
consideration, please collaborate it with Auxiliary Arm (KP-AUXA-2).

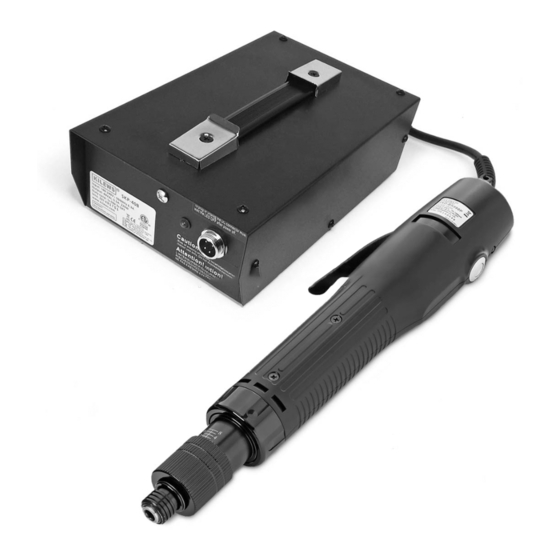

DC-TYPE Automatic Non-Carbon-Brush Series
KILEWS INDUSTRIAL CO., LTD.
SKD-BNK960L
SKD-BNK990L
SKD-BNK9120L
SKD-BNK960P
SKD-BNK990P
SKD-BNK9120P
http://www.kilews.com.tw
Y2F168A-E-005
Advertisement
Table of Contents
Related Manuals for Kilews SKD-BNK960L
Summary of Contents for Kilews SKD-BNK960L
- Page 1 OPERATION AND MAINTENANCE MANUAL SKD-BNK960L SKD-BNK990L SKD-BNK9120L SKD-BNK960P SKD-BNK990P SKD-BNK9120P Attention! BNK990/BNK9120L/P is belonging to high torque series. For safety consideration, please collaborate it with Auxiliary Arm (KP-AUXA-2). DC-TYPE Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com.tw Y2F168A-E-005...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Before changing bits from BNK Series screwdriver, make sure the Forward / Reverse switch stays at “OFF” position. The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 7: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. -
Page 8: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 9: Specifications
Specifications SKD-BNK960L SKD-BNK990L SKD-BNK9120L MODEL SKD-BNK960P SKD-BNK990P SKD-BNK9120P Input voltage (DC) DC 40V Power Consumption hard joints 6~12 Torque (N.m) soft joints 2~4.8 3~7.2 6~9.6 80%↓ Repeatable Torque Accuracy (%) ±5% Torque Adjustment Stepless Unloaded Rotation Speed 1000 1000 (R.p.m) ±10% Machine 4.0~5.0... -
Page 10: Torque Adjustment Operation
7. If turn to “LO” on the power supplier, the screwdriver can’t offer high watt output, the torque on the screwdriver should be adjust under middle range to use. 8. Please refer to Kilews website http://www.kilews.com.tw for the detail component list. Our company reserves the right to modify...
